TRANSMISSION (1)

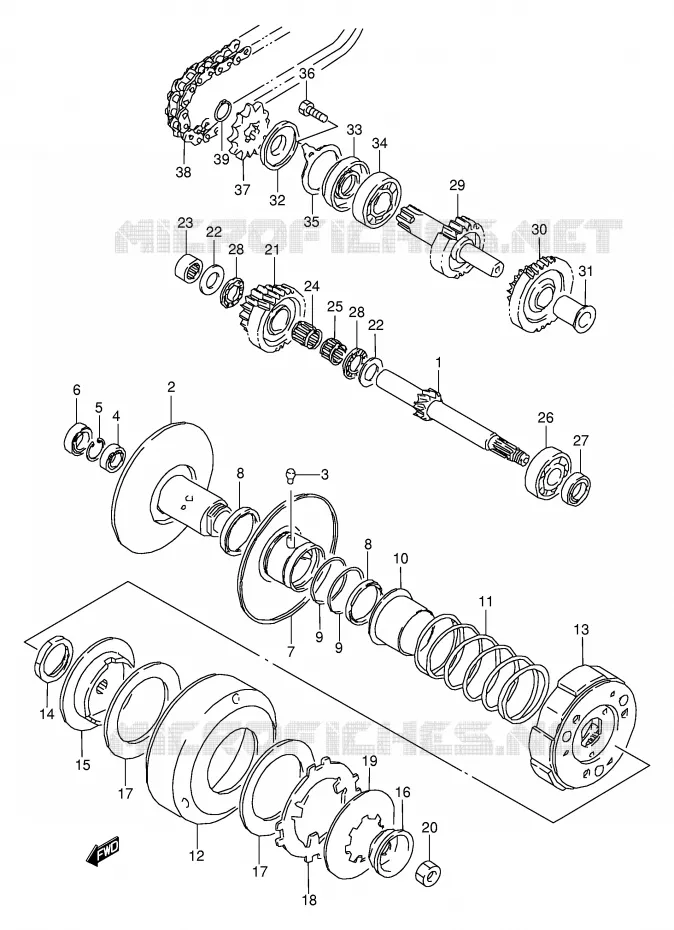

TRANSMISSION (2) FOR SUZUKI QUADSPORT 80 2004

OIL TANK

Item numbers

SHAFT, DRIVE
COUNTER SHAFT (NT:12)

24131-29A03-000 2413129A03000

$137,97

Unit Price

FACE, FIXED DRIVEN

21210-03A21-000 2121003A21000

$159,97

Unit Price

09201-06005-000 0920106005000

$4,97

Unit Price

BEARING
BEARING (12X24X6)

09262-12014-000 0926212014000

$65,97

Unit Price

CIRCLIP

08331-41246-000

08331-41249-000

$4,97

Unit Price

BEARING

09262-15018-000

09262-15061-000

$65,97

Unit Price

FACE, MOVABLE DRIVEN

21240-40B00-000 2124040B00000

$135,97

Unit Price

SEAL, OIL
OIL SEAL (34X41X4)

09283-34007-000 0928334007000

$14,97

Unit Price

O RING
O RING (D:1.5, ID:39.7)

09280-41005-000 0928041005000

$4,97

Unit Price

SHEET, MOVABLE DRIVEN
SLEEVE, MOVABLE DRIVEN FACE

21471-03A11-000 2147103A11000

$8,97

Unit Price

SPRING

09440-46005-000 0944046005000

$20,97

Unit Price

HOUSING, CLUTCH

21220-29A01-000 2122029A01000

$69,97

Unit Price

CLUTCH ASSY, SHOE
CLUTCH ASSY

21501-03A21-000 2150103A21000

$221,97

Unit Price

NUT 28MM
NUT

09152-28001-000 0915228001000

$20,97

Unit Price

HUB, LIMITER CLUTCH

21411-29A01-000 2141129A01000

$59,97

Unit Price

STOPPER, LIMITER CLUTCH

21412-29A00-000 2141229A00000

$19,97

Unit Price

PLATE, LIMITER CL FRICTION
PLATE, FRICTION

21441-29A01-000 2144129A01000

$20,97

Unit Price

PLATE, LIMITER CLUTCH PRESSURE
PLATE, PRESSURE

21461-29A01-000 2146129A01000

$10,97

Unit Price

SPRING

09164-30003-000 0916430003000

$17,97

Unit Price

NUT 10MM
NUT

09140-10035-000 0914010035000

$6,97

Unit Price

GEAR, FINAL DRIVE
GEAR, FINAL DRIVE (NT:27/14)

24271-40B01-000 2427140B01000

$176,97

Unit Price

SHIM, 15X28X1.0
THRUST WASHER (15X28X1)

09181-15223-000 0918115223000

$4,97

Unit Price

BEARING (15X22X15)

09263-15009-000 0926315009000

$18,97

Unit Price

BEARING (15X20X18)

09263-15035-000 0926315035000

$28,97

Unit Price

BEARING (15X20X13)

09263-15038-000 0926315038000

$32,97

Unit Price

BEARING (15X42X13)

09262-15027-000 0926215027000

$37,97

Unit Price

SEAL, OIL
OIL SEAL (15X25X5)

09283-15003-000 0928315003000

$12,97

Unit Price

BEARING (15X28X2)

09263-15003-000 0926315003000

$12,97

Unit Price

SHAFT, DRIVE
SHAFT, DRIVE (NT:19)

24141-40B00-000 2414140B00000

$193,97

Unit Price

GEAR, IDLE DRIVE NO.2
GEAR, IDLER DRIVE NO.2

24290-29A01-000 2429029A01000

$176,97

Unit Price

BUSH

09301-15002-000 0930115002000

$40,97

Unit Price

SEAL, DRIVE SHAFT OIL NO.2
OIL SEAL

24142-40B00-000 2414240B00000

$12,97

Unit Price

SEAL.OIL(20X47X12)
OIL SEAL (20X47X12)

09283-20047-000 0928320047000

$19,97

Unit Price

BEARING
BEARING (20X47X14)

09262-20121-000 0926220121000

$43,97

Unit Price

DISCONTINUE
RETAINER

24751-40B00-000 2475140B00000

Not available

BOLT

01500-06163-000

01500-0616A-000

$3,97

Unit Price

SPROCKET, ENGINE(10T-520)
SPROCKET, ENGINE (NT:10)

27511-40B10-000 2751140B10000

$34,97

Unit Price

CHAIN, DRIVE
CHAIN ASSY (DID 520VSX36LE)

27600-34A40-036 2760034A40036

$76,97

Unit Price

CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000 0938020009000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
