TRANSMISSION (2)

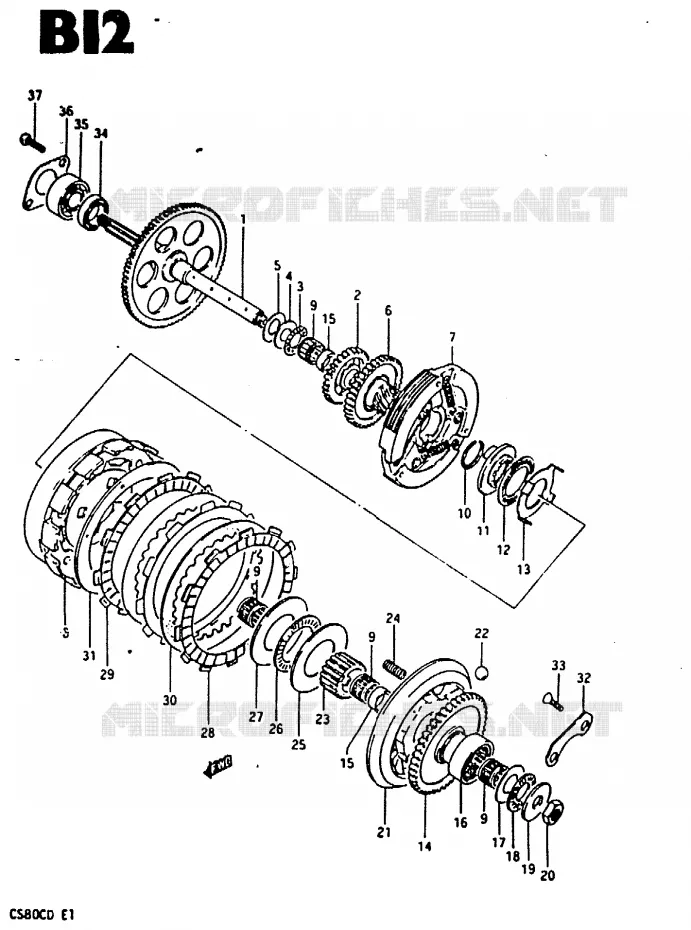

TRANSMISSION (3) FOR SUZUKI CS 80 1983

KICK STARTER

AXLE SHAFT, REAR (NT:71)

24140-07900-000 2414007900000

Not available

GEAR, IDLER DRIVEN (NT:37)

24381-07930-000 2438107930000

Not available

BEARING(15X28X2)
THRUST BEARING

09263-15003-000 0926315003000

$12,97

Unit Price

THRUST WASHER NO.2 (T:1.0)

09160-15034-000 0916015034000

Not available

THRUST WASHER NO.1 (T:2.0)

09160-15035-000 0916015035000

Not available

GEAR, 2ND DRIVE (NT:46)

24220-07901-000 2422007901000

Not available

CLUTCH ASSY, 2ND

21502-02121-000 2150202121000

Not available

HOUSING ASSY, CLUTCH

21220-07901-000 2122007901000

Not available

BEARING

09263-15027-000 0926315027000

Not available

CIRCLIP

09380-32002-000 0938032002000

Not available

GUIDE, 2ND CLUTCH ASSY

22521-02101-000 2252102101000

Not available

THRUST BEARING

09263-35010-000 0926335010000

Not available

RETAINER

22531-02100-000 2253102100000

Not available

GEAR, 3RD DRIVE (NT:55)

24231-07900-000 2423107900000

Not available

SPACER

09180-15064-000 0918015064000

Not available

BEARING

09263-24015-000 0926324015000

Not available

THRUST WASHER

09160-15034-000 0916015034000

Not available

BEARING(15X28X2)
THRUST BEARING

09263-15003-000 0926315003000

$12,97

Unit Price

WASHER(12X27X2)
THRUST WASHER

09160-12051-000 0916012051000

$3,97

Unit Price

NUT

09140-12023-000 0914012023000

Not available

HUB, 3RD CLUTCH SLEEVE

21411-07900-000 2141107900000

Not available

BALL
REORDER BRAN BARDSLEY

06111-15004-000 0611115004000

Not available

SPACER, 3RD CLUTCH SLEEVE HUB

22541-07900-000 2254107900000

Not available

SPRING, CLUTCH RETURN

21481-07901-000 2148107901000

Not available

THRUST WASHER, SLEEVE HUB

09160-30032-000 0916030032000

Not available

THRUST BEARING

09263-30014-000 0926330014000

Not available

THRUST WASHER

09160-30030-000 0916030030000

Not available

PLATE, DRIVE (T:3.0)

21441-01420-000 2144101420000

Not available

PLATE, DRIVE (T:2.5)

21442-02100-000 2144202100000

Not available

PLATE, DRIVEN(T:1.4)

21451-11900-000

21451-01B40-000

$12,97

Unit Price

PLATE, CLUTCH DRIVEN

21451-28000-000

21451-19A00-000

$11,97

Unit Price

PLATE, CLUTCH DRIVEN(T:2.0)
PLATE, DRIVEN (T:2.0)

21451-36200-000 2145136200000

$11,97

Unit Price

DUMPER, CLUTCH PLATE

21471-02100-000 2147102100000

Not available

PLATE, OIL RESERVER

24871-02101-000 2487102101000

Not available

SCREW

02122-05088-000 0212205088000

Not available

OIL SEAL, DR SFT
OIL SEAL

09283-27010-000 0928327010000

$16,97

Unit Price

BEARING
BEARING, RH

08130-62047-000 0813062047000

$30,97

Unit Price

RETAINER, DRIVE SHAHFT BEARING
RETAINER

24751-07900-000 2475107900000

$4,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION (3) of your Suzuki of CS. Let us know if you have any questions.
