CLUTCH

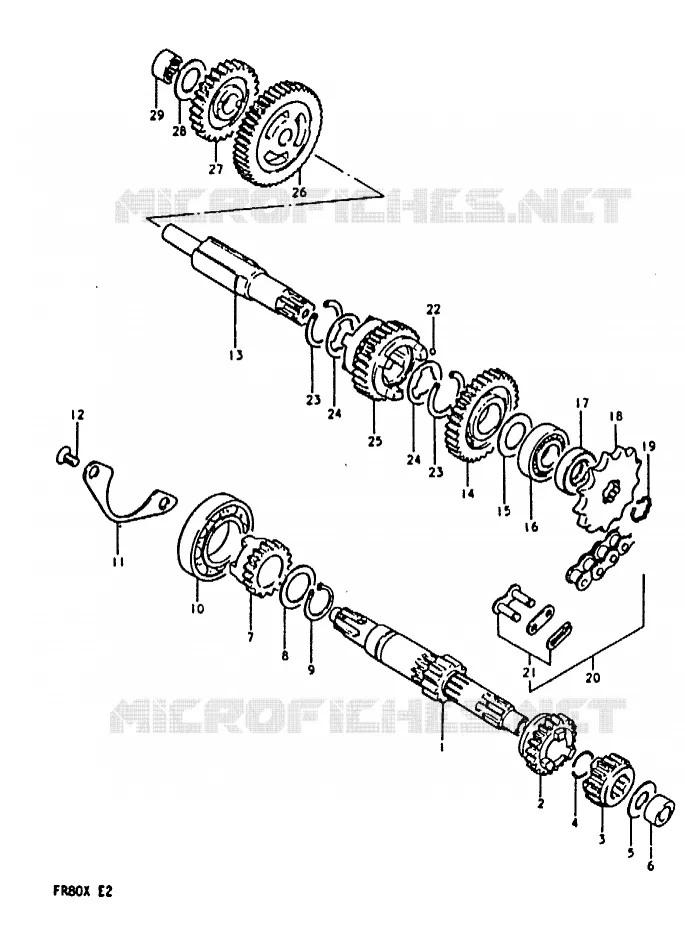

TRANSMISSION FOR SUZUKI FR 80 1981

GEAR SHIFTING ASSY

COLNTERSHAFT (NT:12)

24121-35300-000 2412135300000

Not available

GEAR, 3RD DRIVE (NT:23)

24231-35300-000 2423135300000

Not available

GEAR, 2ND DRIVE (NT:18)

24221-19300-000 2422119300000

Not available

CIRCLIP

09380-17005-000 0938017005000

Not available

WASHER

08211-12261-000 0821112261000

$3,97

Unit Price

DISCONTINUE
BEARING, LH

09263-12001-000 0926312001000

GEAR, KICK DRIVEN (NT:16)

26280-19000-000 2628019000000

Not available

GEAR, KICK DRIVEN (NT:16)

26280-35300-000 2628035300000

Not available

WASHER(21X30X1)
WASHER

09160-21005-000 0916021005000

$3,97

Unit Price

DISCONTINUED

08331-11219-000 0833111219000

Not available

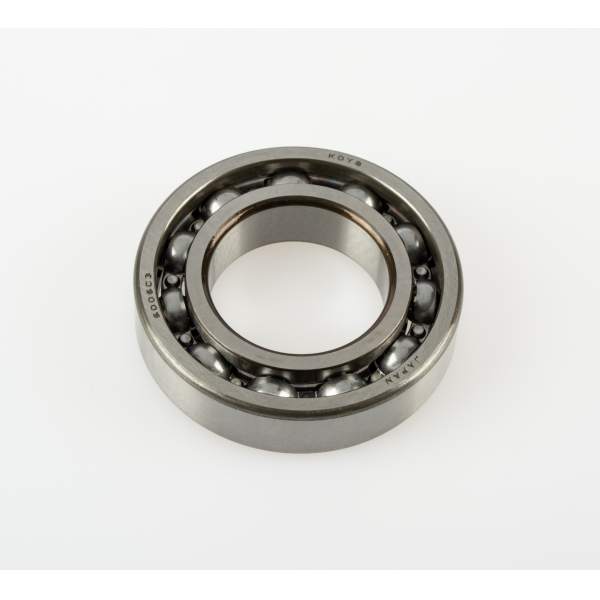

BALL BEARING
BEARING, RH

08113-60060-000 0811360060000

$33,97

Unit Price

RETAINER, BEARING

24741-23001-000 2474123001000

Not available

SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000 0211206108000

Not available

DRIVESHAFT

24131-19301-000 2413119301000

Not available

GEAR, 2ND DRIVEN (NT:38)

24321-35301-000 2432135301000

Not available

CLUTCH THRUST WASHER
WASHER

08211-17282-000 0821117282000

$3,97

Unit Price

BEARING

08113-63030-000 0811363030000

$29,97

Unit Price

OIL SEAL

09283-17006-000 0928317006000

Not available

DISCONTINUE

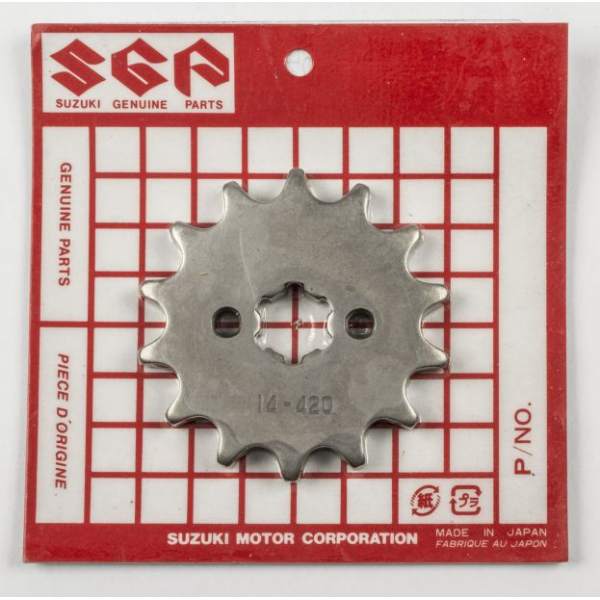

SPROCKET, ENGINE (NT:14)

27511-19700-000 2751119700000

Not available

RING

27513-35000-000 2751335000000

Not available

CHAIN ASSY, DRIVE (420*104L)

27600-19010-000 2760019010000

Not available

.JOINT (DID)

27620-01011-000 2762001011000

Not available

JOINT (RK)

27620-01022-000 2762001022000

Not available

5 32 BALL BEARING
STEEL BALL

06111-05004-000 0611105004000

$2,97

Unit Price

CIRCLIP

09381-30001-000 0938130001000

Not available

WASHER

09167-26001-000 0916726001000

Not available

GEAR, 3RD DRIVEN (NT:33)

24331-35300-000 2433135300000

Not available

GEAR, 1ST DRIVEN (NT:44)

24310-35301-000 2431035301000

Not available

DISCONTINUED

26260-19002-000 2626019002000

Not available

WASHER

08211-12261-000 0821112261000

$3,97

Unit Price

BUSH

09300-12008-000 0930012008000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki FR 50 X of FR. Let us know if you have any questions.
