MUFFLER

OIL PUMP FOR SUZUKI FR 80 1983

CLUTCH

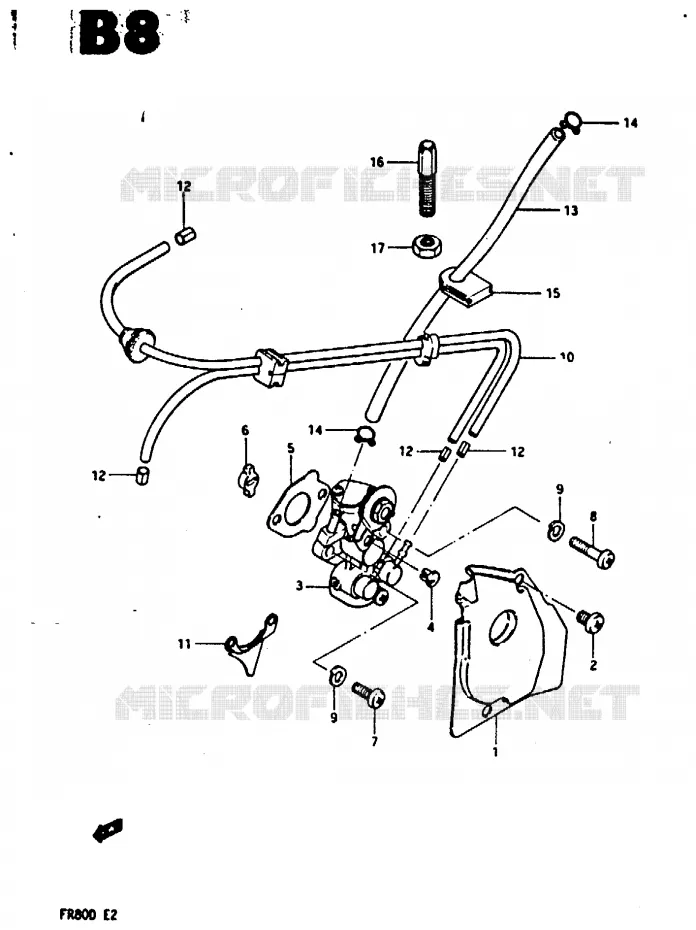

OIL PUMP Suzuki SCOOTER 80 FR 1983 FR80D
1
COVER

11385-19300-000   1138519300000

1138519300000
Not available
2
SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000   0211206108000

0211206108000
Not available
3
PUMP, OIL

16100-35320-000   1610035320000

1610035320000
Not available
4
TERMINAL, CABLE
TERMINAL, CABLE

16292-03112-000   1629203112000

1629203112000

Unit Price

5
GASKET,OIL PUMP<br />GASKET
GASKET, OIL PUMP
GASKET

16731-03101-000   1673103101000

1673103101000

Unit Price

6
PIECE,OIL PUMP DRIVE<br />PIECE, DRIVE
PIECE, OIL PUMP DRIVE
PIECE, DRIVE

16391-05031-000   1639105031000

1639105031000

Unit Price

7
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

8
SCREW
SCREW

09125-05109-000   0912505109000

0912505109000
Not available
9
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

10
HOSE, OUTLET (L:450)

16820-35002-000   1682035002000

1682035002000
Not available
11
CLAMP

16816-35301-000   1681635301000

1681635301000
Not available
12
OIL HOSECLAMP<br />CLIP
OIL HOSECLAMP
CLIP

09401-04401-000   0940104401000

0940104401000

Unit Price

13
HOSE, 4.5X8.5X600

09343-04060-000  

09355-45001-600
 0934304060000

Unit Price

14
OIL HOSE CLAMP<br />CLAMP
OIL HOSE CLAMP
CLAMP

09401-08401-000   0940108401000

0940108401000

Unit Price

15
GROMMET
GROMMET

09309-08002-000   0930908002000

0930908002000
Not available
16
BOLT<br />ADJUSTER
BOLT
ADJUSTER

09119-08014-000   0911908014000

0911908014000

Unit Price

17
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki FR 80 D of FR. Let us know if you have any questions.

Genuine parts for Suzuki 80 FR 1983

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 FR 1983

Select your Suzuki 1983 model

80 FR 1983 FR80D

FR 80 D

Suzuki FR

Displacement: 80 cc
Year: 1983
Model code FR80D
