CAMSHAFT - VALVES

TIMING FOR SUZUKI BOULEVARD 800 2011

THROTTLE BODY

Item numbers

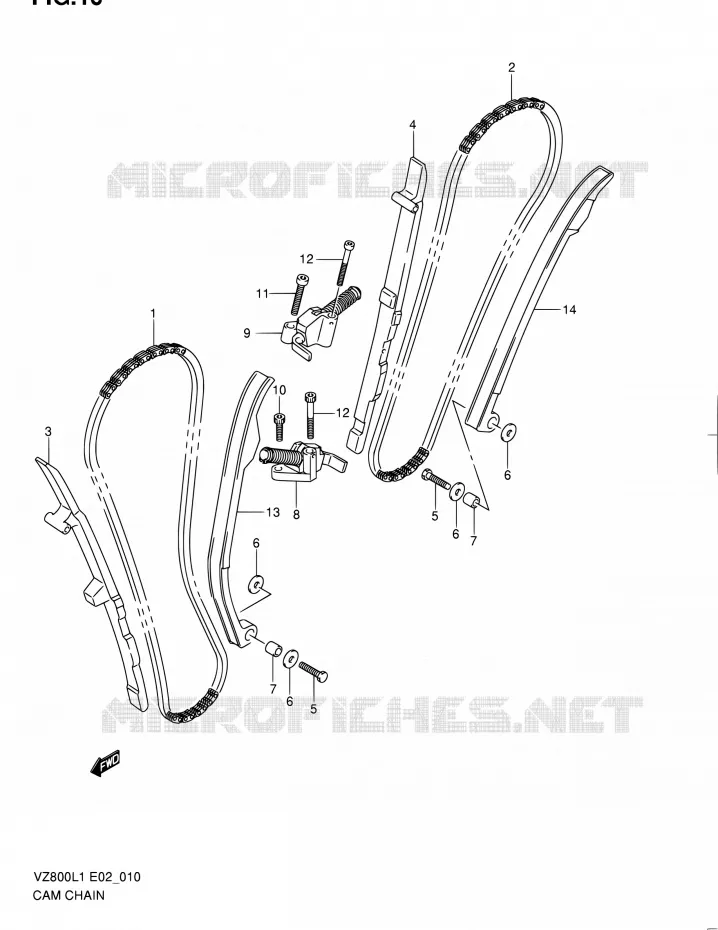

TIMING Suzuki MOTO 800 BOULEVARD 2011 VZ800L1(E19)
1
2
3
4
5
5
6
6
6
6
7
7
8
9
10
11
12
12
13
14
1
CHAIN, CAMSHAFT DRIVE FR
CHAIN, CAM SHAFT DRIVE FRONT

12760-41F01-000   1276041F01000

1276041F01000

Unit Price

2
CHAIN, CAMSHAFT DRIVE RR
CHAIN, CAM SHAFT DRIVE REAR

12760-38A21-000   1276038A21000

1276038A21000

Unit Price

3
GUIDE, CAM CHAIN FRONT

12772-41F00-000  

12772-41F01-000
 1277241F00000

Unit Price

4
GUIDE, CAM CHAIN REAR

12771-41F00-000  

12771-41F01-000
 1277141F00000

Unit Price

5
BOLT (6X26)

09100-06129-000   0910006129000

0910006129000

Unit Price

6
WASHER

08211-06182-000   0821106182000

0821106182000

Unit Price

7
SPACER (6X11X11)

09180-06148-000   0918006148000

0918006148000

Unit Price

8
ADJUSTER ASSY, FR TENSIONER
ADJUSTER ASSY, TENSIONER FRONT

12831-38A01-000   1283138A01000

1283138A01000

Unit Price

9
ADJUSTER ASSY, TENSIONER RR
ADJUSTER ASSY, TENSIONER REAR

12832-41F01-000   1283241F01000

1283241F01000

Unit Price

10
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

11
BOLT

07130-0630A-000  

07130-0630B-000
 071300630A000

Unit Price

12
BOLT

07130-0645A-000   071300645A000

071300645A000

Unit Price

13
TENSIONER, CAM CHAIN FRONT

12811-41F00-000  

12811-41F01-000
 1281141F00000

Unit Price

14
TENSIONER, RR CAM CHAIN
TENSIONER, CAM CHAIN REAR

12816-38A01-000   1281638A01000

1281638A01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
