GEAR SHIFTING ASSY

DRIVESHAFT FOR SUZUKI BOULEVARD 800 2012

STAND

Item numbers

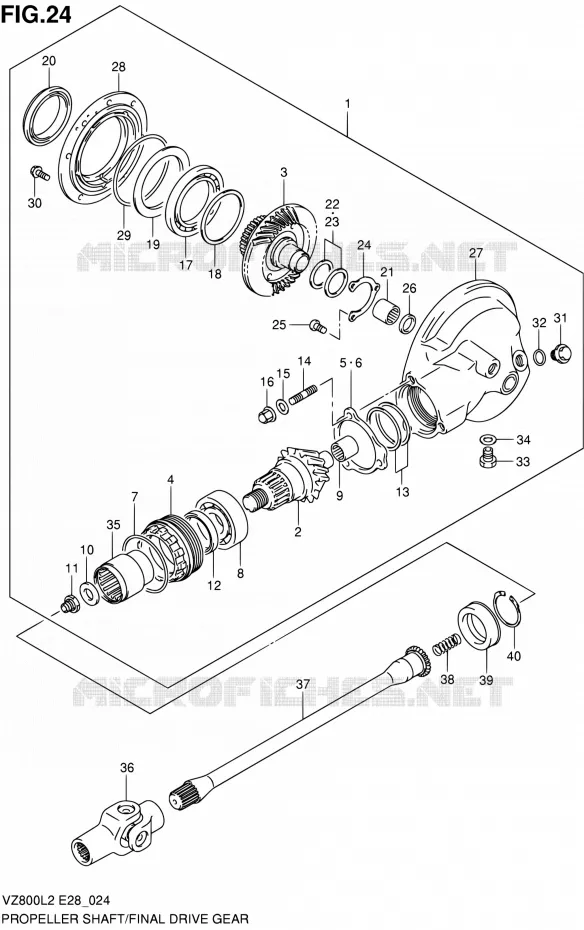

DRIVESHAFT Suzuki MOTO 800 BOULEVARD 2012 VZ800L2(E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
DISCONTINUE

27301-38840-20H  

273013884020H
Not available
2
GEAR, FINAL DRIVE BEVEL(NT:11)
.GEAR, FINAL DRIVE BEVEL

27311-38A00-000   2731138A00000

2731138A00000

Unit Price

3
GEAR, FINAL DRIVEN BEVEL(NT:34)
.GEAR, FINAL DRIVEN BEVEL

27320-45C01-000   2732045C01000

2732045C01000

Unit Price

4
STOPPER, FINAL DRIVE BEARING
.STOPPER, BEARING

27312-38A00-000   2731238A00000

2731238A00000

Unit Price

5
PLATE, BEARING STOPPER
.PLATE

27313-38A00-000   2731338A00000

2731338A00000

Unit Price

6
PLATE, BEARING STOPPER
.PLATE

27313-38A10-000   2731338A10000

2731338A10000

Unit Price

7
O RING
.O RING (D:1.9, ID:61.6)

09280-62002-000   0928062002000

0928062002000

Unit Price

8
BEARING
.BEARING (30X62X23.8)

09267-30005-000   0926730005000

0926730005000

Unit Price

9
.BEARING (17X32X16)

09263-17028-000   0926317028000

0926317028000

Unit Price

10
WASHER
.WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

11
.NUT

09159-16010-000   0915916010000

0915916010000

Unit Price

12
SEAL, OIL
.OIL SEAL (38X54X6)

09283-38009-000   0928338009000

0928338009000

Unit Price

13
SHIM SET, FINAL DRIVE GEAR
.SHIM SET, FINAL

27445-38810-000   2744538810000

2744538810000

Unit Price

14
BOLT, STUD
.STUD BOLT

09108-10095-000   0910810095000

0910810095000

Unit Price

15
WASHER<br />.WASHER (113X122X2.3)
WASHER
.WASHER (113X122X2.3)

09164-10008-000   0916410008000

0916410008000

Unit Price

16
CYLINDER HEAD NUT
.NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

17
FIN DRVN GR BEA *S1
.BEARING (70X110X13)

09262-70001-000   0926270001000

0926270001000

Unit Price

18
SHIM SET, DRIVEN GEAR BEARING
.SHIM SET, DRIVE GEAR BEARING

27327-34810-000   2732734810000

2732734810000

Unit Price

19
PLATE, FINAL DRIVEN BRG OIL
.PLATE

27328-34200-000   2732834200000

2732834200000

Unit Price

20
DRVN GEAR R OIL SEAL
.OIL SEAL (70X96X16)

09289-70001-000   0928970001000

0928970001000

Unit Price

21
BEARING FINAL DRIVEN
.BEARING (32X46X17.7)

09263-32007-000   0926332007000

0926332007000

Unit Price

22
SHIM SET, FINAL DRIVEN GEAR
.SHIM SET, FINAL DRIVE GEAR

27326-34820-000   2732634820000

2732634820000

Unit Price

23
.SHIM SET, FINAL DRIVE GEAR

27326-34810-000   2732634810000

2732634810000

Unit Price

24
RETAINER, FINAL DRIVEN GEAR BRG
.RETAINER, BEARING

27329-34200-000   2732934200000

2732934200000

Unit Price

25
BOLT, (6X12)
.SCREW (6X12)

09125-06122-000   0912506122000

0912506122000

Unit Price

26
DRIVEN GEAR OIL SEAL
.OIL SEAL (30X42X7)

09283-30028-000   0928330028000

0928330028000

Unit Price

27
CASE, FINAL GEAR
.CASE, FINAL GEAR (SILVER)

27450-38A70-20H   2745038A7020H

2745038A7020H

Unit Price

28
.CASE, FINAL GEAR BEARING

27460-07A01-000   2746007A01000

2746007A01000

Unit Price

29
O RING FINAL GR CASE
.O RING (D:3.5, ID:131.6)

09280-00015-000   0928000015000

0928000015000

Unit Price

30
.BOLT
.BOLT

01550-0825A-000   015500825A000

015500825A000

Unit Price

31
.PLUG

09247-18001-000   0924718001000

0924718001000

Unit Price

32
SEAL NUT O RING
.O RING (D:2.4, ID:17.8)

09280-18004-000   0928018004000

0928018004000

Unit Price

33
PLUG<br />.PLUG (MAGNET)
PLUG
.PLUG (MAGNET)

09247-14002-000   0924714002000

0924714002000

Unit Price

34
GASKET,13.8X18.8X0.4<br />.GASKET (13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
.GASKET (13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

35
COUPLING, FINAL DRIVE GEAR
.COUPLING, PROPELLER SHAFT

27172-38A00-000   2717238A00000

2717238A00000

Unit Price

36
YOKE, UNIVERSAL JOINT

27100-38A60-000   2710038A60000

2710038A60000

Unit Price

37
SHAFT, PROPELLER

27151-41F00-000   2715141F00000

2715141F00000

Unit Price

38
SPRING

09440-18019-000   0944018019000

0944018019000

Unit Price

39
SEAL.OIL
OIL SEAL (28.4X48X15)

09283-30051-000   0928330051000

0928330051000

Unit Price

40
DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000   0938140003000

0938140003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
