THROTTLE BODY (VL800L5 E03)

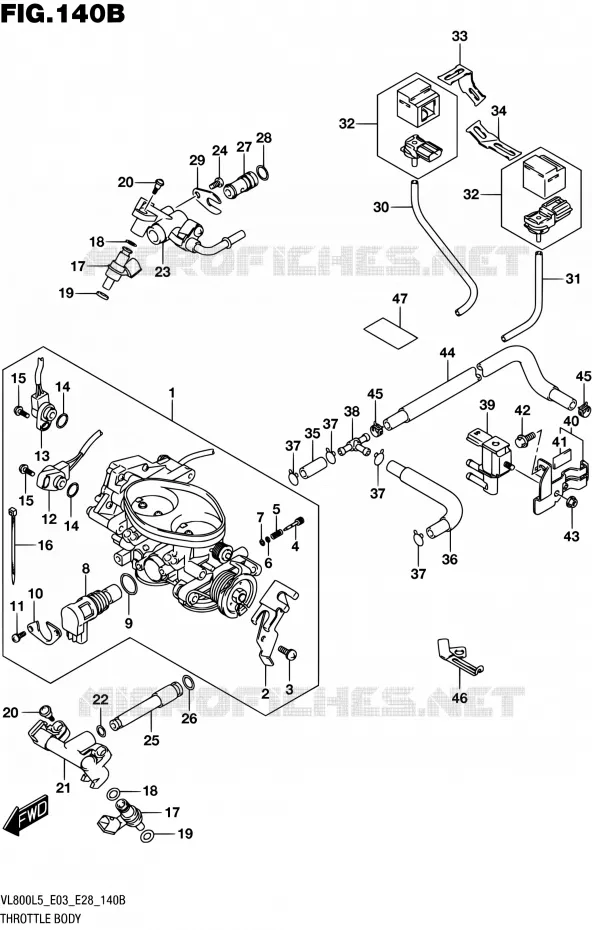

THROTTLE BODY (VL800L5 E33) FOR SUZUKI BOULEVARD 800 2015

THROTTLE BODY (VL800TL5 E03)

Item numbers

BODY ASSY, THROTTLE
BODY, THROTTLE

13401-41F32-000 1340141F32000

$1 484,97

Unit Price

.PLATE, STAY

13565-41F20-000 1356541F20000

$86,97

Unit Price

.SCREW

13601-21H00-000 1360121H00000

$3,97

Unit Price

SCREW, AIR ADJUST
.SCREW

13269-18G00-000 1326918G00000

$13,97

Unit Price

.SPRING

13271-43E00-000

Not available

.WASHER

13291-26E00-000 1329126E00000

$4,97

Unit Price

.O RING

13295-26E00-000 1329526E00000

$6,97

Unit Price

.VALVE ASSY, ISC

18117-15H12-000 1811715H12000

$341,97

Unit Price

.O RING

18119-05H00-000 1811905H00000

$5,97

Unit Price

.PLATE, ISC VALVE

13428-15H00-000 1342815H00000

$22,97

Unit Price

.SCREW

13605-15H00-000 1360515H00000

$8,97

Unit Price

SENSOR ASSY, THROTTLE NO.1

13580-40F21-000

13580-40F22-000

$192,97

Unit Price

13580-41F02
.SENSOR ASSY, SUB

13580-41F01-000 1358041F01000

Not available

.O RING

13575-40F00-000 1357540F00000

$6,97

Unit Price

.SCREW

13605-40F00-000 1360540F00000

$5,97

Unit Price

CLAMP
.CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

INJECTOR ASSY, FUEL
INJECTOR ASSY

15710-26GB0-000 1571026GB0000

$274,97

Unit Price

O RING

15721-21H00-000 1572121H00000

$11,97

Unit Price

RING, SEAL

15722-21H00-000 1572221H00000

$13,97

Unit Price

SCREW, THROTTLE COVER
SCREW

13602-34F50-000 1360234F50000

$4,97

Unit Price

PIPE SET, FUEL FR

13473-41FA0-000 1347341FA0000

$57,97

Unit Price

O RING

15721-24F00-000 1572124F00000

$11,97

Unit Price

PIPE SET, FUEL RR

13473-41FB0-000 1347341FB0000

$77,97

Unit Price

SCREW

13602-10F10-000 1360210F10000

$4,97

Unit Price

JOINT

13473-41FC0-000 1347341FC0000

$15,97

Unit Price

O RING

15721-10G00-000 1572110G00000

$13,97

Unit Price

PLUG, STRAIGHT

13474-41F20-000 1347441F20000

$8,97

Unit Price

O RING

15721-41F20-000 1572141F20000

$20,97

Unit Price

PLATE, STAY
PLATE

13475-41F20-000 1347541F20000

$5,97

Unit Price

HOSE

13683-41FA0-000 1368341FA0000

$17,97

Unit Price

TUBE, RUBBER

13683-41FD0-000

13683-41FD1-000

$29,97

Unit Price

SENSOR, AIR PRESSURE
SENSOR, PRESSURE

18590-32G00-000 1859032G00000

$309,97

Unit Price

BRACKET, BOOST SENSOR FR

18598-41F00-000 1859841F00000

$4,97

Unit Price

BRACKET, BOOST SENSOR RR

18599-39G00-000 1859939G00000

$4,97

Unit Price

DISCONTINUE
HOSE

13683-41FC1-000 1368341FC1000

Not available

DISCONTINUE
TUBE, RUBBER

13682-41F30-000 1368241F30000

Not available

CLIP

13693-24F00-000 1369324F00000

$2,97

Unit Price

NIPPLE
JOINT

13685-48B00-000 1368548B00000

$17,97

Unit Price

VALVE ASSY, DUTY FOR PURGE
VALVE, CANISTER

18117-52G00-000 1811752G00000

$121,97

Unit Price

BRACKET, PURGE VALVE
BRACKET, VALVE

18119-39G00-000 1811939G00000

$19,97

Unit Price

CUSHION(10X30X2)
.CUSHION

44894-24A00-000 4489424A00000

$2,97

Unit Price

BOLT

01550-0612B-000 015500612B000

$3,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

HOSE, CANISTER PURGE

13680-39G00-000 1368039G00000

$35,97

Unit Price

(CA)CLIP
CLIP

09401-10409-000 0940110409000

$3,97

Unit Price

CLAMP, EVAPORATOR HOSE
CLAMP

44480-41F00-000 4448041F00000

$10,97

Unit Price

TAPE, HARNESS(28X50X0.13)
TAPE, PURGE HOSE

36611-16G00-000 3661116G00000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (VL800L5 E33) of your Suzuki BOULEVARD 800 of BOULEVARD. Let us know if you have any questions.
