TAIL LIGHT (E33)

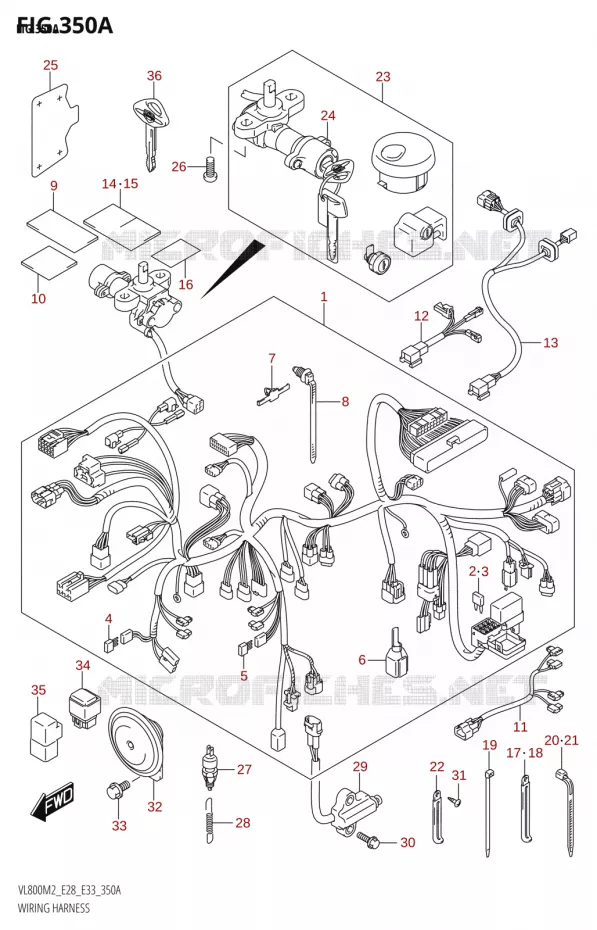

WIRING HARNESS FOR SUZUKI BOULEVARD 800 2022

SWITCHES

HARNESS, WIRING

36610-43H70-000 3661043H70000

$775,97

Unit Price

.FUSE(10A)

09481-10501-000

Not available

.FUSE(20A)

09481-20501-000 0948120501000

$3,97

Unit Price

.RECTIFIER ASSY

32800-16A00-000 3280016A00000

$28,97

Unit Price

.DIODE

36611-38A10-000 3661138A10000

$20,97

Unit Price

.BOOT

36717-41F00-000 3671741F00000

$12,97

Unit Price

.CLAMP

09407-05410-000 0940705410000

$7,97

Unit Price

CLAMP
.CLAMP(L:170)

09407-17403-000 0940717403000

$8,97

Unit Price

TAPE, HARNESS(28X50X0.13)

36611-16G00-000 3661116G00000

$3,97

Unit Price

PROTECTOR, WIRING HARNESS
PROTECTOR, WIRING HARNESS(30X50X3)

36611-41F00-000 3661141F00000

$8,97

Unit Price

WIRE, IGNITION COIL LEAD

36854-39G01-000 3685439G01000

$45,97

Unit Price

WIRE, RR COMB NO.2
WIRE, REAR COMB NO.2

36856-41F00-000 3685641F00000

$28,97

Unit Price

WIRE, RR COMB

36858-41F01-000 3685841F01000

$41,97

Unit Price

PROTECTOR, HARNESS(30X50X3)

36920-33C00-000 3692033C00000

$2,97

Unit Price

PROTECTOR, HARNESS(30X50X3)

36920-33C00-000 3692033C00000

$2,97

Unit Price

PROTECTOR, COWL UNDER
PROTECTOR, COWL UNDER(30X20X0.13)

94474-17H00-000 9447417H00000

$6,97

Unit Price

CLAMP(L:80)

09404-06030-000 0940406030000

$3,97

Unit Price

CLAMP
CLAMP(L:135)

09404-06435-000 0940406435000

$5,97

Unit Price

CLAMP
CLAMP(L:145)

09407-14407-000 0940714407000

$4,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP(L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

LOCK SET

37102-41881-000 3710241881000

Not available

LOCK ASSY, STEERING

37100-41F70-000

37100-41F71-000

$320,97

Unit Price

PROTECTOR, IGNITION SWITCH
PROTECTOR, IGNITION SW

37187-41F10-000 3718741F10000

$21,97

Unit Price

BOLT
BOLT(8X20)

09139-08016-000 0913908016000

$5,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$22,97

Unit Price

SPRING

09443-06073-000 0944306073000

$5,97

Unit Price

37840-41F02
SWITCH ASSY, SIDE STAND

37840-41F01-000 3784041F01000

Not available

BOLT
BOLT(6X20)

01550-0620A-000 015500620A000

$2,97

Unit Price

SCREW

03541-0512A-000 035410512A000

$2,97

Unit Price

HORN ASSY

38500-41F30-000 3850041F30000

$88,97

Unit Price

BOLT
BOLT(8X16)

01550-0816A-000 015500816A000

$3,97

Unit Price

RELAY ASSY

38740-24A00-000 3874024A00000

$63,97

Unit Price

RELAY ASSY

38740-24X50-000 3874024X50000

$45,97

Unit Price

KEY, BLANK(BOULEVARD)
KEY, BLANK "BOULEVARD"

37146-41FA0-000 3714641FA0000

$122,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki BOULEVARD C50 of BOULEVARD. Let us know if you have any questions.
