HEAD LAMP (MODELE M / N / P)

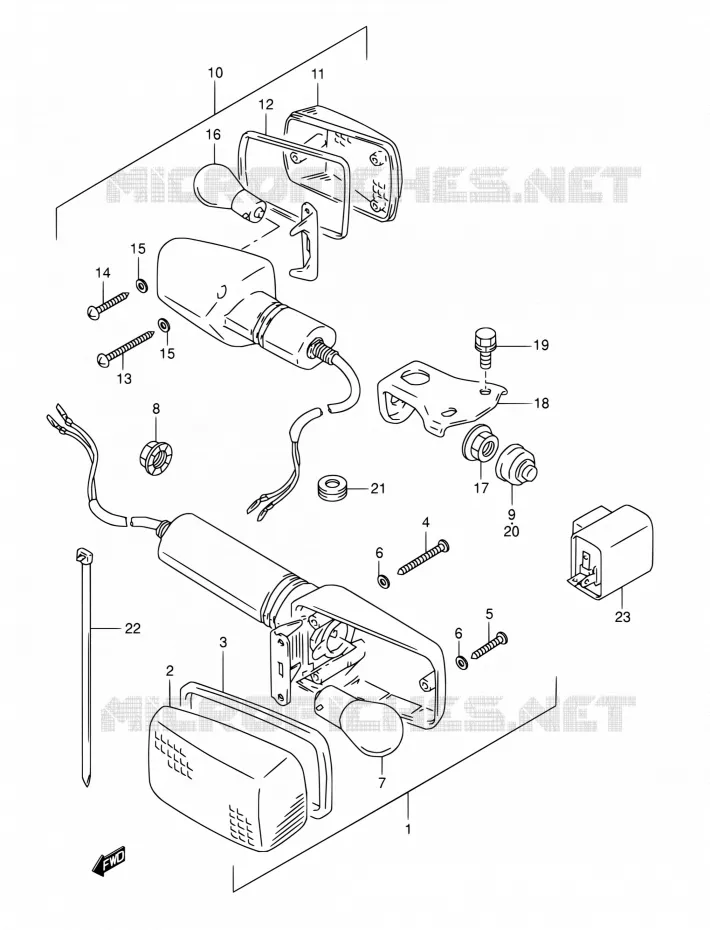

TJRN SIGNAL LAMP (MODELE M / N / P) FOR SUZUKI DR 800 1991

TAIL LIGHT (MODELE M / N / P / R / S)

Item numbers

DISCONTINUE
LAMP ASSY, FRONT TURN SIGNAL

35601-01D00-000 3560101D00000

Not available

DISCONTINUE
LAMP ASSY, FRONT TURN SIGNAL

35601-01D10-000 3560101D10000

Not available

LENS
.LENS, FRONT TURN SIGNAL

35612-17C20-000 3561217C20000

$15,97

Unit Price

.GASKET

35613-27A00-000 3561327A00000

$6,97

Unit Price

SCREW(3X30)
.SCREW

35623-27A00-000 3562327A00000

$2,97

Unit Price

.SCREW

35725-40511-000 3572540511000

$2,97

Unit Price

.GASKET

35627-27A02-000 3562727A02000

$2,97

Unit Price

BULB(12V60/55W, H4)
.BULB (12V, 21W)

09471-12045-000 0947112045000

$5,97

Unit Price

NUT

08316-20103-000

08316-2010B-000

$5,97

Unit Price

COVER, TURNSIGNAL
CAP

35698-01480-000 3569801480000

$6,97

Unit Price

DISCONTINUE

35603-17C21-000

Not available

LAMP ASSY, REAR TURN SIGNAL RH

35603-31D00-000 3560331D00000

Not available

LENS
.LENS, REAR TURN SIGNAL

35652-17C20-000 3565217C20000

$15,97

Unit Price

.GASKET

35613-27A00-000 3561327A00000

$6,97

Unit Price

SCREW(3X30)
.SCREW

35623-27A00-000 3562327A00000

$2,97

Unit Price

.SCREW

35725-40511-000 3572540511000

$2,97

Unit Price

.GASKET

35627-27A02-000 3562727A02000

$2,97

Unit Price

BULB(12V60/55W, H4)
.BULB (12V, 21W)

09471-12045-000 0947112045000

$5,97

Unit Price

NUT

08316-26105-000

08316-2010B-000

$5,97

Unit Price

BRACKET, REAR TURN SIGNAL

35621-31D00-000 3562131D00000

Not available

BOLT

01570-06103-000

01570-0610A-000

$3,97

Unit Price

COVER, TURNSIGNAL
CAP

35698-01480-000 3569801480000

$6,97

Unit Price

DISCONTINUE
GROMMET, LEAD WIRE

09308-05015-000

Not available

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

RELAY ASSY, TURNSIGNAL

38610-31310-000

38610-31X50-000

$72,97

Unit Price

RELAY, TURN SIGNAL

38610-45091-000 3861045091000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TJRN SIGNAL LAMP (MODELE M/N/P) of your Suzuki DR 800 S of DR. Let us know if you have any questions.
