AIR FILTER

MUFFLER (MODEL M) FOR SUZUKI DR 800 1992

MUFFLER (MODEL N / P / R / S / T)

Item numbers

PIPE, EXHAUST

14150-31D00-000 1415031D00000

Not available

GASKET, EXHAUST PIPE

14181-44B00-000 1418144B00000

Not available

BOLT

01570-08253-000

01570-0825A-000

$4,97

Unit Price

COVER, EXHAUST PIPE, FR

14180-31D00-000 1418031D00000

Not available

COVER, EXHAUST PIPE, RR

14180-44B20-000 1418044B20000

Not available

SCREW (6X10)

09139-06076-000 0913906076000

$3,97

Unit Price

WASHER
WASHER (6.5X13X1)

09160-06082-000 0916006082000

$2,97

Unit Price

GASKET(5.8X13X1.4)
GASKET

09168-06120-000 0916806120000

$2,97

Unit Price

DISCONTINUE
PLATE, HEAT GUARD

14782-44B01-000 1478244B01000

Not available

BOLT

01580-06103-000 0158006103000

$1,97

Unit Price

PLATE, MANIFOLD GUARD

14751-31D00-000 1475131D00000

Not available

BODY, MANIFOLD

14210-31D00-000 1421031D00000

Not available

BOLT, M8X40
BOLT (8X40)

09118-08145-000 0911808145000

$9,97

Unit Price

BOLT (10X20)

09103-10256-000 0910310256000

Not available

BOLT

01550-06163-000

01550-0616A-000

$3,97

Unit Price

SPACER

09180-08151-000 0918008151000

$8,97

Unit Price

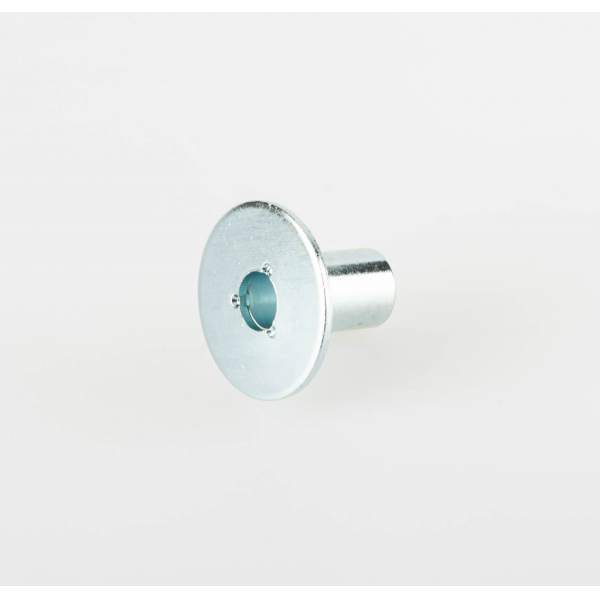

SPACER(8.6X12X20)
SPACER

09180-08168-000 0918008168000

$13,97

Unit Price

BRACKET, MANIFOLD SUPPORT

14745-31D02-000 1474531D02000

Not available

CUSHION

09320-12043-000 0932012043000

$11,97

Unit Price

GUARD, MANIFOLD HEAT

14730-31D00-000 1473031D00000

Not available

SCREW

02122-06353-000

02122-0635B-000

$4,97

Unit Price

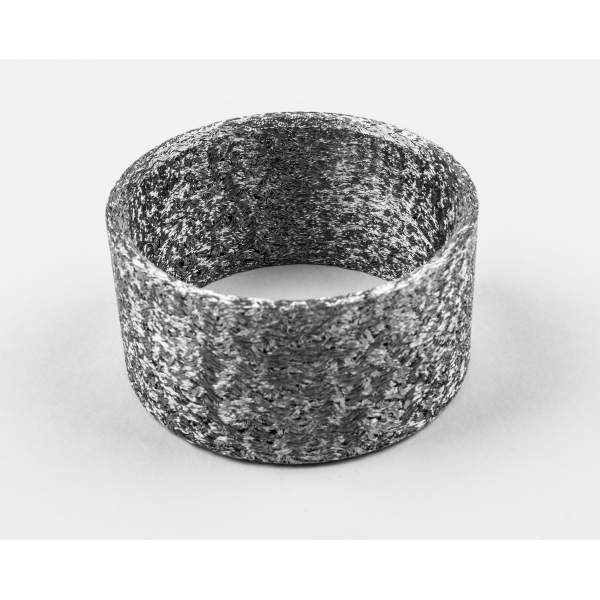

CONNECTOR, MUFFLER JOINT
CONNECTOR

14771-14D00-000 1477114D00000

$31,97

Unit Price

CONNECTOR, MUFFLER
CONNECTOR

14771-44B00-000 1477144B00000

$30,97

Unit Price

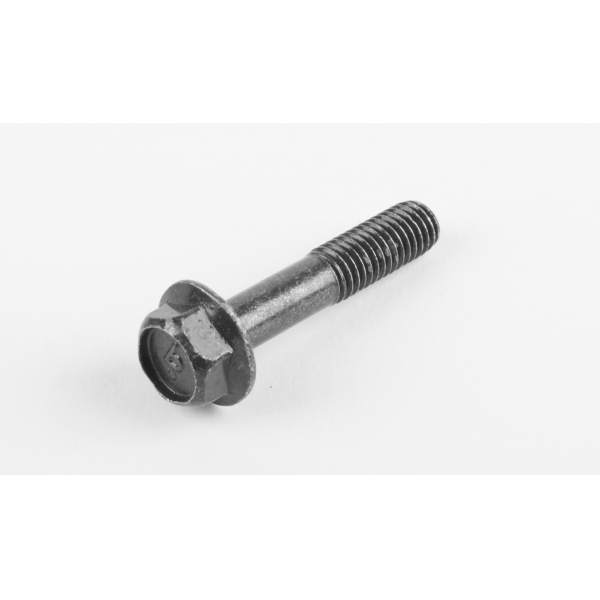

BOLT (8X40)

09103-08222-000 0910308222000

$5,97

Unit Price

MUFFLER, RH

14305-31D00-000 1430531D00000

Not available

MUFFLER, LH

14306-31D00-000 1430631D00000

Not available

COVER, MUFFLER FR, RH

14786-31D10-000 1478631D10000

Not available

COVER, MUFFLER FR, LH

14796-31D10-000 1479631D10000

Not available

BOLT

01550-06123-000

01550-0612A-000

$3,97

Unit Price

SCREW (6X10)

09139-06076-000 0913906076000

$3,97

Unit Price

GUARD, MUFFLER

14710-31D10-000 1471031D10000

Not available

PROTECTOR, MUFFLER GUARD

14792-31D00-000 1479231D00000

Not available

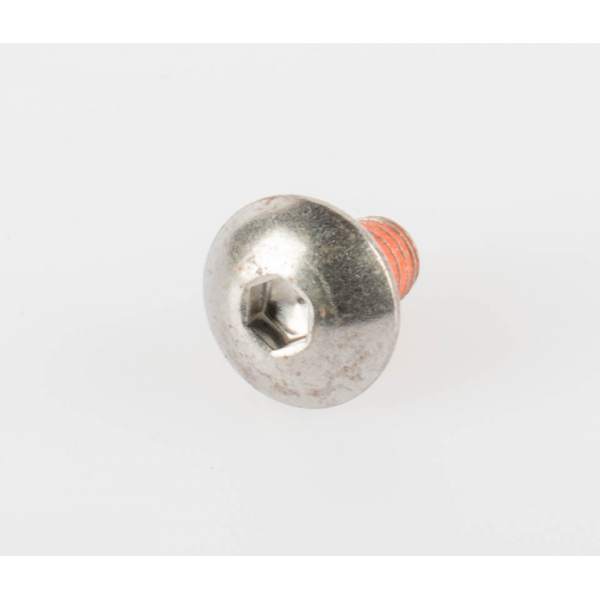

SCREW
SCREW (6X10)

09139-06078-000 0913906078000

$4,97

Unit Price

SCREW (6X12)

09139-06079-000 0913906079000

Not available

WASHER

09169-06037-000 0916906037000

$2,97

Unit Price

GASKET(5.8X13X1.8)
GASKET

09168-06121-000 0916806121000

$4,97

Unit Price

CUSHION

09321-10018-000 0932110018000

$7,97

Unit Price

BRACKET, MUFFLER SUPPORT RH

14765-31D00-000 1476531D00000

Not available

BRACKET, MUFFLER SUPPORT LH

14775-31D00-000 1477531D00000

Not available

BOLT, M8X40
BOLT (8X40)

09118-08145-000 0911808145000

$9,97

Unit Price

DISCONTINUE
GUARD, CHAIN TOUCH

61348-14D00-000 6134814D00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the MUFFLER (MODEL M) of your Suzuki DR 800 S of DR. Let us know if you have any questions.
