HEADLIGHT

INDICATORS FOR SUZUKI GSX 800 2023

TAIL LIGHT

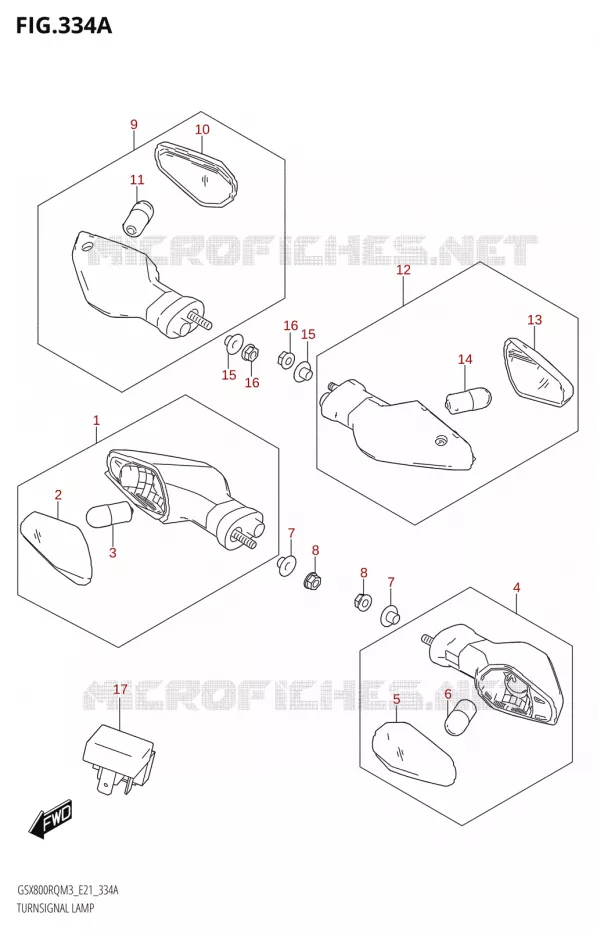

INDICATORS Suzuki MOTO 800 GSX 2023 GSX800RRQ M3 (E21)
1
LAMP ASSY, FRONT TURNSIGNAL, R

35601-25L20-000   3560125L20000

3560125L20000
Not available
2
.LENS

35610-25L00-000   3561025L00000

3561025L00000
Not available
3
.BULB(12V10W, AMBER)

35222-34J80-000   3522234J80000

3522234J80000
Not available
4
LAMP ASSY, FRONT TURNSIGNAL, L

35602-25L20-000   3560225L20000

3560225L20000
Not available
5
.LENS

35630-25L00-000   3563025L00000

3563025L00000
Not available
6
.BULB(12V10W, AMBER)

35222-34J80-000   3522234J80000

3522234J80000
Not available
7
WASHER, FRONT TURNSIGNAL
WASHER

09169-06100-000   0916906100000

0916906100000

Unit Price

8
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

9
LAMP ASSY, REAR TURNSIGNAL, R

35603-25L20-000   3560325L20000

3560325L20000
Not available
10
.LENS

35630-25L00-000   3563025L00000

3563025L00000
Not available
11
.BULB(12V10W, AMBER)

35222-34J80-000   3522234J80000

3522234J80000
Not available
12
LAMP ASSY, REAR TURNSIGNAL, L

35604-25L20-000   3560425L20000

3560425L20000
Not available
13
.LENS

35610-25L00-000   3561025L00000

3561025L00000
Not available
14
.BULB(12V10W, AMBER)

35222-34J80-000   3522234J80000

3522234J80000
Not available
15
WASHER, FRONT TURNSIGNAL
WASHER

09169-06100-000   0916906100000

0916906100000

Unit Price

16
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

17
RELAY ASSY, TURNSIGNAL

38610-23K00-000   3861023K00000

3861023K00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS of your Suzuki GSX-8S of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 800 GSX 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 GSX 2023

Select your Suzuki 2023 model

800 GSX 2023 GSX800RRQ M3 (E21)

GSX-8S

Suzuki GSX

Displacement: 800 cc
Year: 2023
Model code GSX800RRQ M3 (E21)
Color: Pearl cosmic blue (QU1) / Pearl tech white (QU2) / Metallic mat black (KLG)
