Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GEAR SHIFTING ASSY

FUEL EVAP SYSTEM FOR SUZUKI GSX 800 2024

STAND

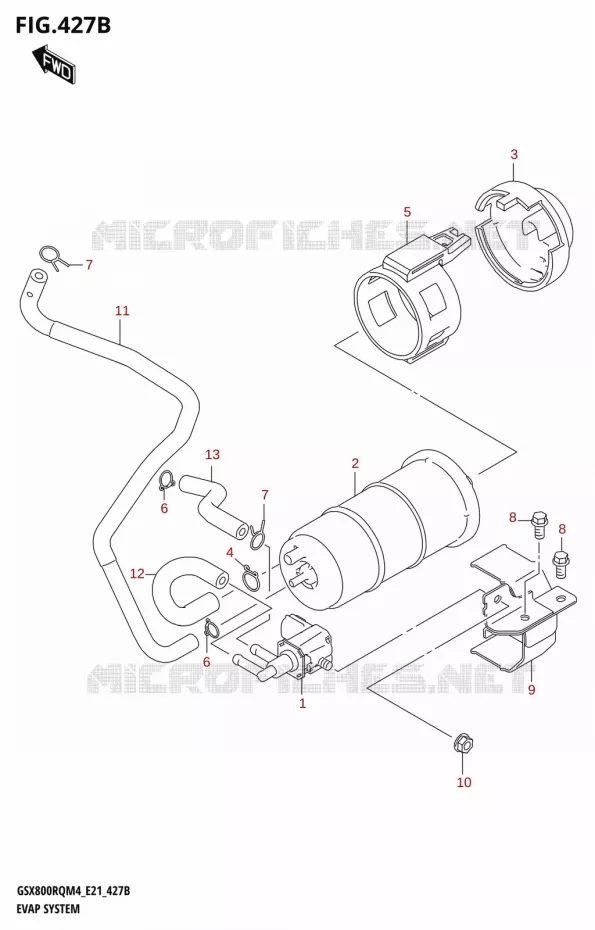

FUEL EVAP SYSTEM Suzuki MOTO 800 GSX 2024 GSX800RQ M4 (E21)
1
VALVE, CANISTER PURGE

18114-74P00-000   1811474P00000

1811474P00000

Unit Price

2
CANISTER ASSY, EVAP

18560-25L00-000   1856025L00000

1856025L00000

Unit Price

3
COVER, CANISTER

18565-25L00-000   1856525L00000

1856525L00000

Unit Price

4
CLIP, EVAP HOSE NO.1

18568-25L00-000   1856825L00000

1856825L00000

Unit Price

5
CUSHION, CANISTER

18572-25L00-000   1857225L00000

1857225L00000

Unit Price

6
FUEL HOSE CLAMP<br />CLIP
FUEL HOSE CLAMP
CLIP

09401-10401-000   0940110401000

0940110401000

Unit Price

7
CLIP, FUELHOSE<br />CLIP(ID:11)
CLIP, FUELHOSE
CLIP(ID:11)

09401-11403-000   0940111403000

0940111403000

Unit Price

8
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

9
BRACKET COMP, CANISTER
BRACKET, CANISTER

18570-25L00-000   1857025L00000

1857025L00000

Unit Price

10
NUT
NUT(6X12)

08316-1006A-000   083161006A000

083161006A000

Unit Price

11
HOSE, SURGE(NBR)

18561-25L00-000   1856125L00000

1856125L00000
Not available
12
HOSE, PURGE NO.1(NBR)

18562-25L00-000   1856225L00000

1856225L00000
Not available
13
HOSE, PURGE NO.2(NBR)

18563-25L00-000   1856325L00000

1856325L00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL EVAP SYSTEM of your Suzuki GSX-8S of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 800 GSX 2024

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 GSX 2024

Select your Suzuki 2024 model

800 GSX 2024 GSX800RQ M4 (E21)

GSX-8S

Suzuki GSX

Displacement: 800 cc
Year: 2024
Model code GSX800RQ M4 (E21)
Color: Pearl cosmic blue (QU1) / Glass mat mechanical gray ( QT7 ) / Metallic mat black (KLG)
