CARBURETOR (FRONT)

CARBURETOR (REAR) FOR SUZUKI INTRUDER 800 1994

AIR FILTER (AVANT)

Item numbers

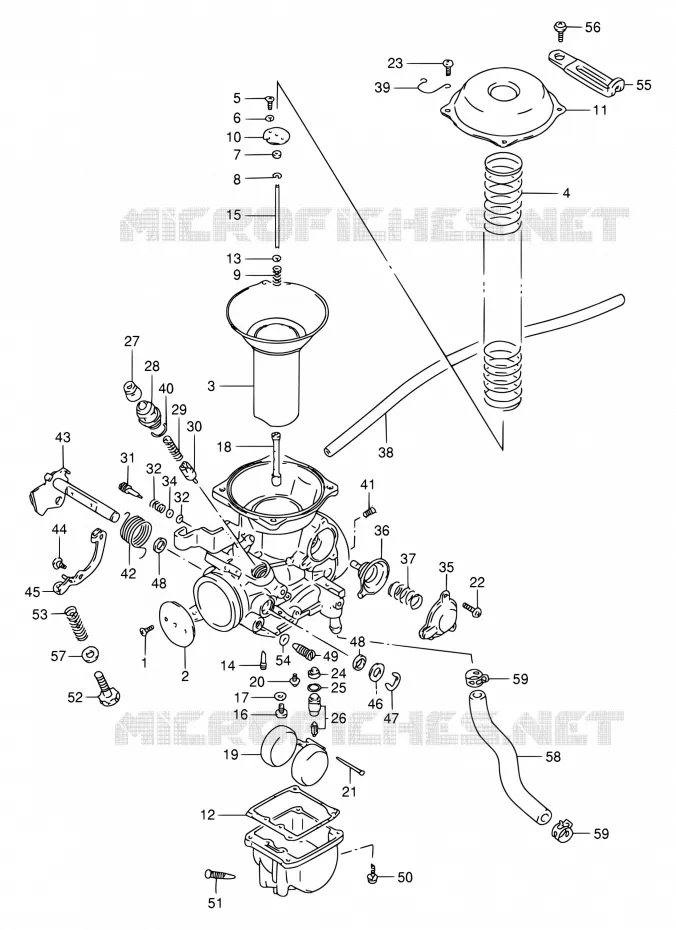

CARBURETOR (REAR) Suzuki MOTO 800 INTRUDER 1994 VS800GL R (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
55
56
57
58
59
59
1
.SCREW
.SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

2
.VALVE, THROTTLE (125)

13551-05A10-000   1355105A10000

1355105A10000
Not available
3
DIAPHRAGM, CARBURETOR
.DIAPHRAGM ASSY

13500-38A10-000   1350038A10000

1350038A10000

Unit Price

4
SPRING, DIAPHRAGM
.SPRING

13503-38B00-000   1350338B00000

1350338B00000

Unit Price

5
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

6
WASHER, LOCK

08321-21033-000  

08321-2103B-000
 0832121033000

Unit Price

7
.RING
.RING

13387-47010-000   1338747010000

1338747010000

Unit Price

8
CLIP<br />.E RING
CLIP
.E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

9
.SPRING
.SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

10
.PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

11
COVER

13502-38A10-000  

13502-45CE0-000
 1350238A10000

Unit Price

12
GASKET, FLOAT CHAMBER
.GASKET

13251-38A10-000   1325138A10000

1325138A10000

Unit Price

13
.WASHER
.WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

14
JET, PILOT
.JET, PILOT (45)

09492-45016-000   0949245016000

0949245016000

Unit Price

15
DISCONTINUE
.NEEDLE, JET (5D61-3)

13383-38E10-000   1338338E10000

1338338E10000
Not available
16
JET, MAIN
.JET, MAIN (132.5)

09491-26012-000   0949126012000

0949126012000

Unit Price

17
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

18
DISCONTINUE
.JET, NEEDLE (P-7)

09494-00689-000   0949400689000

0949400689000
Not available
19
.FLOAT

13252-23010-000   1325223010000

1325223010000

Unit Price

20
.SCREW
.SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

21
PIN,FLOAT<br />.PIN
PIN, FLOAT
.PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

22
.SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

23
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

24
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

25
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

26
.VALVE ASSY, NEEDLE

13370-39A00-000   1337039A00000

1337039A00000

Unit Price

27
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

28
.HOLDER, GUIDE
.HOLDER, GUIDE

13418-43410-000   1341843410000

1341843410000

Unit Price

29
.SPRING

13417-22010-000   1341722010000

1341722010000

Unit Price

30
PLUNGER,STARTER<br />.PLUNGER ASSY
PLUNGER, STARTER
.PLUNGER ASSY

13411-01400-000   1341101400000

1341101400000

Unit Price

31
SCREW,PILOT<br />.SCREW, AIR (1 1/8)
SCREW, PILOT
.SCREW, AIR (1 1/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

32
.SPRING
.SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

33
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

34
.WASHER
.WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

35
.COVER

13484-38A10-000   1348438A10000

1348438A10000

Unit Price

36
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

37
.SPRING

13481-45C10-000   1348145C10000

1348145C10000

Unit Price

38
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

39
.CLIP

13692-02500-000   1369202500000

1369202500000

Unit Price

40
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

41
JET, AIR(65)
.JET, PILOT AIR (65)

09492-65005-000   0949265005000

0949265005000

Unit Price

42
.SPRING

13573-38B10-000   1357338B10000

1357338B10000
Not available
43
.SHAFT ASSY

13550-38A10-000   1355038A10000

1355038A10000
Not available
44
.SCREW

13602-05A30-000   1360205A30000

1360205A30000

Unit Price

45
.LEVER ASSY

13554-38B00-000   1355438B00000

1355438B00000
Not available
46
GASKET,THROTTLE SHAFT<br />.WASHER
GASKET, THROTTLE SHAFT
.WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

47
.E RING
.E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

48
.SEAL

13556-05A10-000  

1355605A10000
Not available
49
SCREW

02112-05063-000  

02112-0506B-000
 0211205063000

Unit Price

50
.SCREW
.SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

51
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

52
ADJUSTER

13267-38A10-000  

13267-39E50-000
 1326738A10000

Unit Price

53
.SPRING
.SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

54
GASKET, DRAIN PLUG
.WASHER

13523-46110-000   1352346110000

1352346110000

Unit Price

55
CLAMP(L:80)

09404-06415-000  

09404-06426-000
 0940406415000

Unit Price

56
SCREW

02142-04083-000  

02142-0408B-000
 0214204083000

Unit Price

57
.WASHER

13277-37100-000   1327737100000

1327737100000

Unit Price

58
HOSE

13683-38E00-000  

13683-38E01-000
 1368338E00000

Unit Price

59
CLAMP, WATER HOSE

09401-11408-000  

09401-11415-000
 0940111408000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 INTRUDER 1994
