Displacement

Model

Year

Finish line

Parts catalogue

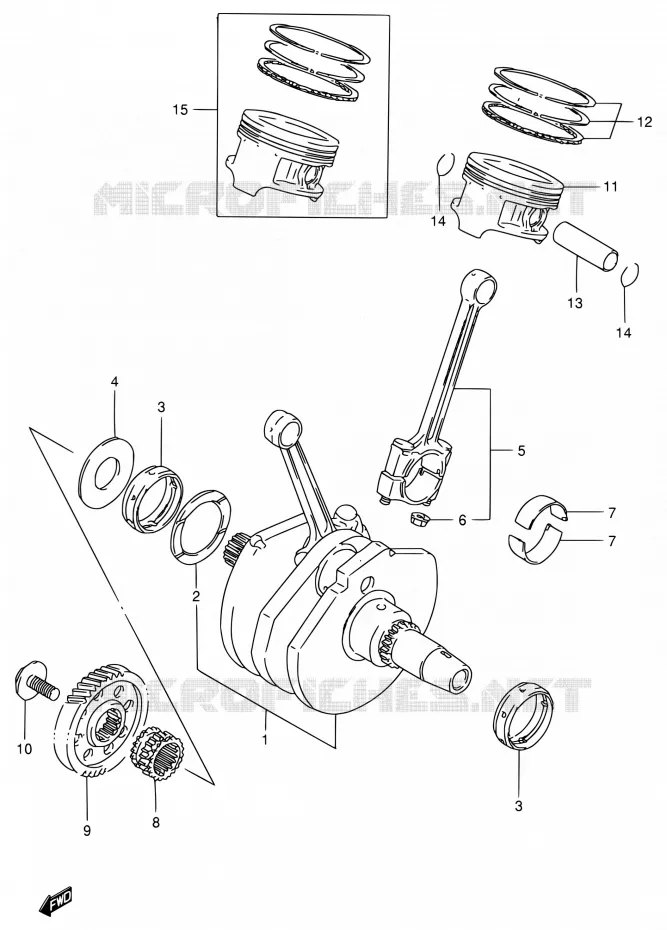

Parts diagram

CRACKCASE COVER

CRANKSHAFT FOR SUZUKI INTRUDER 800 1994

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT SET

12000-38810-000 1200038810000

$2 014,97

Unit Price

WASHER(48.1X64X1.94)
.WASHER, CRANK THRUST (NO.1)

09160-48001-000 0916048001000

$43,97

Unit Price

WASHER(48.1X64X1.96)
.WASHER, CRANK THRUST (NO.2)

09160-48002-000 0916048002000

$39,97

Unit Price

WASHER(48.1X64X1.99)
.WASHER, CRANK THRUST (NO.3)

09160-48003-000 0916048003000

$39,97

Unit Price

WASHER(48.1X64X2.01)
.WASHER, CRANK THRUST (NO.4)

09160-48004-000 0916048004000

$39,97

Unit Price

WASHER(48.1X64X2.04)
.WASHER, CRANK THRUST (NO.5)

09160-48005-000 0916048005000

$36,97

Unit Price

WASHER(48.1X64X2.06)
.WASHER, CRANK THRUST (NO.6)

09160-48006-000 0916048006000

$39,97

Unit Price

WASHER(48.1X64X2.09)
.WASHER, CRANK THRUST (NO.7)

09160-48007-000 0916048007000

$41,97

Unit Price

WASHER(48.1X64X2.11)
.WASHER, CRANK THRUST (NO.8)

09160-48008-000 0916048008000

$39,97

Unit Price

WASHER(48.1X64X2.14)
.WASHER, CRANK THRUST (NO.9)

09160-48009-000 0916048009000

$37,97

Unit Price

WASHER(48.1X64X2.16)
.WASHER, CRANK THRUST (NO.10)

09160-48010-000 0916048010000

$39,97

Unit Price

METAL, CRANKSHAFT
BEARING, CRANKSHAFT

12229-38A00-000 1222938A00000

$35,97

Unit Price

WASHER, CRANK THRUST

12652-38A00-000 1265238A00000

$73,97

Unit Price

12160-45C30
ROD ASSY, CONNECTING

12160-45C10-000

Not available

.NUT

09159-09001-000 0915909001000

$6,97

Unit Price

DISCONTINUE
BEARING, CRANK PIN (GREEN)

12164-45C01-0A0 1216445C010A0

Not available

DISCONTINUE
BEARING, CRANK PIN (BLACK)

12164-45C01-0B0 1216445C010B0

Not available

DISCONTINUE
BEARING, CRANK PIN (BROWN)

12164-45C01-0C0 1216445C010C0

Not available

DISCONTINUE
BEARING, CRANK PIN (YELLOW)

12164-45C01-0D0 1216445C010D0

Not available

DISCONTINUE
BEARING, CRANK PIN (BLUE)

12164-45C01-0E0 1216445C010E0

Not available

SPROCKET, CAM CHAIN DRIVE, R
SPROCKET, CAM CHAIN DRIVE RH

12731-38A00-000 1273138A00000

$52,97

Unit Price

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:42)

21111-38A00-000 2111138A00000

$115,97

Unit Price

BOLT(12X28)
BOLT

09103-12013-000 0910312013000

$11,97

Unit Price

PISTON

12111-45C00-0F0 1211145C000F0

$222,97

Unit Price

RING SET, PISTON

12140-45C10-000 1214045C10000

$110,97

Unit Price

PIN, PISTON

12151-24A00-000 1215124A00000

$25,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

PISTON SET (OS:0.5)

12100-45C00-050 1210045C00050

$284,97

Unit Price

DISCONTINUE
PISTON SET (OS:1.0)

12100-45C00-100 1210045C00100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
