Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP - FUEL PUMP

WATER PUMP FOR SUZUKI INTRUDER 800 2002

RADIATOR

Item numbers

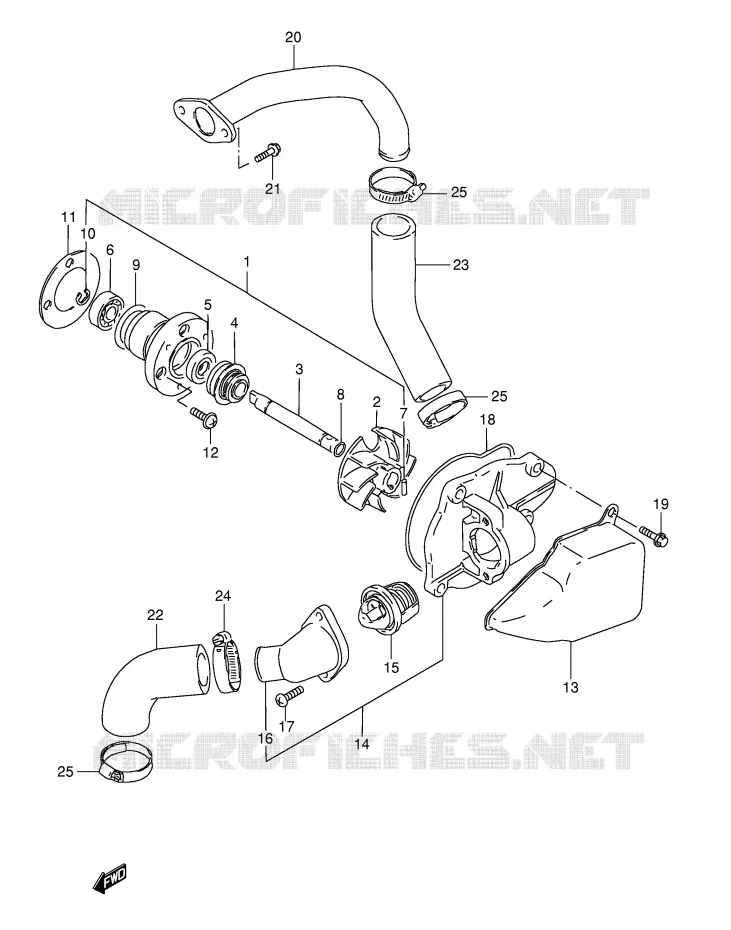

WATER PUMP Suzuki MOTO 800 INTRUDER 2002 VS800GLK2(E22)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
1
PUMP ASSY, WATER

17400-38A02-000  

17400-38A11-000
 1740038A02000

Unit Price

2
IMPELLER

17491-38A00-000   1749138A00000

1749138A00000

Unit Price

3
SHAFT

17511-38A00-000   1751138A00000

1751138A00000

Unit Price

4
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

5
OIL SEAL, WATER PUMP<br />OIL SEAL
OIL SEAL, WATER PUMP
OIL SEAL

09283-10004-000   0928310004000

0928310004000

Unit Price

6
BEARING WATER PUMP
BEARING

09262-10004-000   0926210004000

0926210004000

Unit Price

7
PIN

17516-38A00-000   1751638A00000

1751638A00000

Unit Price

8
O RING

17515-38A00-000   1751538A00000

1751538A00000

Unit Price

9
O RING

17417-38A00-000  

17417-38A01-000
 1741738A00000

Unit Price

10
08332-1108A
E RING

08332-11086-000  

0833211086000
Not available
11
GASKET, WATER PUMP

17431-38A10-000   1743138A10000

1743138A10000

Unit Price

12
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

13
DISCONTINUE
COVER, WATER PUMP

17441-38A02-000   1744138A02000

1744138A02000
Not available
14
CASE ASSY, WATER PUMP

17410-38A00-000  

17410-38A01-000
 1741038A00000

Unit Price

15
THERMOSTAT, WATER

17670-33410-000  

17670-33411-000
 1767033410000

Unit Price

16
CONNECTOR

17412-45C00-000   1741245C00000

1741245C00000

Unit Price

17
SCREW,6X16<br />SCREW
SCREW, 6X16
SCREW

02112-06167-000   0211206167000

0211206167000

Unit Price

18
O RING, WATER PUMP CAP
O RING

17435-38A00-000   1743538A00000

1743538A00000

Unit Price

19
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

20
PIPE, CYLINDER INLET
PIPE, CYLINDER IN

17890-38A00-000   1789038A00000

1789038A00000

Unit Price

21
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

22
HOSE, WATER PUMP IN

17857-38A02-000   1785738A02000

1785738A02000

Unit Price

23
HOSE, WATER PUMP OUTLET
HOSE, WATER PUMP OUT

17858-38820-000   1785838820000

1785838820000

Unit Price

24
CLAMP

09402-30501-000  

09402-32511-000
 0940230501000

Unit Price

25
CLAMP
CLAMP

09402-32511-000   0940232511000

0940232511000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 INTRUDER 2002
