ELECTRICAL (MODEL K1 / K2 / K3 / K4) REFER TO FIG.26A(E- 4) FOR MODEL K5

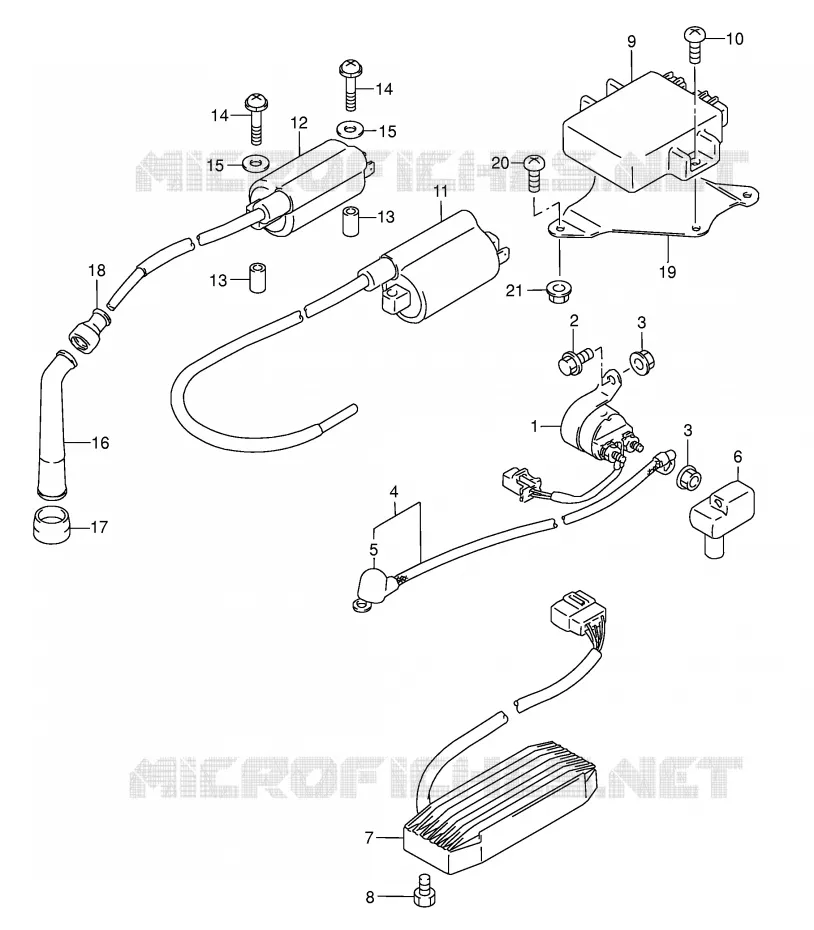

ELECTRICAL (MODEL K5) FOR SUZUKI INTRUDER 800 2002

SPEEDOMETER

Item numbers

RELAY ASSY, STARTING MOTOR
RELAY, STARTING MOTOR

31800-15501-000 3180015501000

$105,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

NUT

08361-35068-000

08361-3506A-000

$3,97

Unit Price

WIRE, STARTER MOTOR LEAD
LEAD WIRE, STARTING MOTOR

33850-38A00-000 3385038A00000

$27,97

Unit Price

CAP, STARTER MOTOR LEAD
CAP, STARTER MOTOR

31861-48B10-000 3186148B10000

$7,97

Unit Price

CAP, STARTER RELAY

31861-38A00-000 3186138A00000

$13,97

Unit Price

RECTIFIER ASSY

32800-12E01-000 3280012E01000

$461,97

Unit Price

BOLT

01500-06103-000

01500-0610B-000

$3,97

Unit Price

32900-38A32
IGNITER UNIT

32900-38A31-000 3290038A31000

Not available

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

COIL ASSY, IGNITION RR
COIL, IGNITION (CORD L:300)

33410-38A20-000 3341038A20000

$159,97

Unit Price

COIL ASSY, IGNITION FR
COIL, IGNITION (CORD L:520)

33420-38A20-000 3342038A20000

$155,97

Unit Price

SPACER (6.4X10X19)

09180-06144-000 0918006144000

Not available

SCREW, IGNITION COIL

09137-05008-000 0913705008000

Not available

WASHER

08322-01053-000

08322-0105B-000

$3,97

Unit Price

CAP, SPARK PLUG

33510-11410-000 3351011410000

$28,97

Unit Price

SEAL, SPARK PLUG
SEAL, PLUG

33541-47D00-000 3354147D00000

$11,97

Unit Price

SEAL, HIGH TENSION CORD

33542-38B00-000 3354238B00000

$6,97

Unit Price

DISCONTINUE
PLATE, IGNITER FITTING

32910-38A10-000 3291038A10000

Not available

SCREW

02112-36123-000

02112-3612A-000

$3,97

Unit Price

NUT

08316-20063-000

08316-10067-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
