GEAR SHIFTING ASSY

DRIVESHAFT FOR SUZUKI INTRUDER 800 2003

FUEL COCK

Item numbers

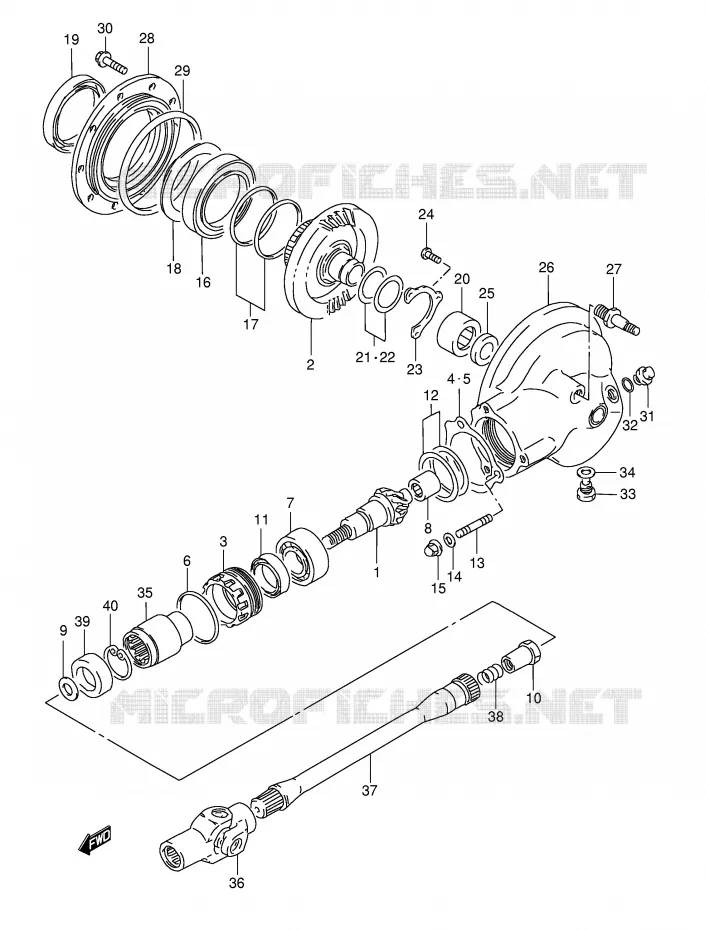

DRIVESHAFT Suzuki MOTO 800 INTRUDER 2003 VS800GLK3(E22)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
GEAR, FINAL DRIVE BEVEL(NT:11)
GEAR, DRIVE BEVEL (NT:11)

27311-38A00-000   2731138A00000

2731138A00000

Unit Price

2
GEAR, FINAL DRIVEN BEVEL(NT:34)
GEAR, DRIVEN BEVEL (NT:34)

27320-45C01-000   2732045C01000

2732045C01000

Unit Price

3
STOPPER, FINAL DRIVE BEARING
STOPPER, BEARING

27312-38A00-000   2731238A00000

2731238A00000

Unit Price

4
PLATE, BEARING STOPPER
PLATE

27313-38A00-000   2731338A00000

2731338A00000

Unit Price

5
PLATE, BEARING STOPPER
PLATE

27313-38A10-000   2731338A10000

2731338A10000

Unit Price

6
O RING
O RING (D:1.9, ID:61.6)

09280-62002-000   0928062002000

0928062002000

Unit Price

7
BEARING
BEARING (30X62X23.8)

09267-30005-000   0926730005000

0926730005000

Unit Price

8
BEARING (17X32X16)

09263-17028-000   0926317028000

0926317028000

Unit Price

9
WASHER
WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

10
NUT

09159-16010-000   0915916010000

0915916010000

Unit Price

11
SEAL, OIL
OIL SEAL (38X54X6)

09283-38009-000   0928338009000

0928338009000

Unit Price

12
SHIM SET, FINAL DRIVE GEAR
SHIM SET, FINAL

27445-38810-000   2744538810000

2744538810000

Unit Price

13
BOLT, STUD
STUD BOLT

09108-10095-000   0910810095000

0910810095000

Unit Price

14
WASHER<br />LOCK WASHER
WASHER
LOCK WASHER

09164-10008-000   0916410008000

0916410008000

Unit Price

15
CYLINDER HEAD NUT
NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

16
FIN DRVN GR BEA *S1
BEARING, RH (70X110X13)

09262-70001-000   0926270001000

0926270001000

Unit Price

17
SHIM SET, DRIVEN GEAR BEARING
SHIM SET, DRIVE GEAR BEARING

27327-34810-000   2732734810000

2732734810000

Unit Price

18
PLATE, FINAL DRIVEN BRG OIL
PLATE

27328-34200-000   2732834200000

2732834200000

Unit Price

19
DRVN GEAR R OIL SEAL
OIL SEAL, RH (70X96X16)

09289-70001-000   0928970001000

0928970001000

Unit Price

20
BEARING FINAL DRIVEN
BEARING, LH (32X46X17.7)

09263-32007-000   0926332007000

0926332007000

Unit Price

21
SHIM SET, FINAL DRIVEN GEAR
SHIM SET, FINAL DRIVE GEAR

27326-34820-000   2732634820000

2732634820000

Unit Price

22
SHIM SET, FINAL DRIVE GEAR

27326-34810-000   2732634810000

2732634810000

Unit Price

23
RETAINER, FINAL DRIVEN GEAR BRG
RETAINER, BEARING

27329-34200-000   2732934200000

2732934200000

Unit Price

24
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

25
DRIVEN GEAR OIL SEAL
OIL SEAL (30X42X7)

09283-30028-000   0928330028000

0928330028000

Unit Price

26
DISCONTINUE
CASE, FINAL GEAR

27450-38A12-000  

2745038A12000
Not available
27
BOLT, STUD
STUD BOLT

27481-38A01-000   2748138A01000

2748138A01000

Unit Price

28
CASE, FINAL GEAR BEARING

27460-07A01-000   2746007A01000

2746007A01000

Unit Price

29
O RING FINAL GR CASE
O RING (D:3.5, ID:131.6)

09280-00015-000   0928000015000

0928000015000

Unit Price

30
BOLT

01550-08253-000  

01550-0825A-000
 0155008253000

Unit Price

31
PLUG
PLUG, OIL FILLER

09247-18001-000   0924718001000

0924718001000

Unit Price

32
SEAL NUT O RING
O RING (D:2.4, ID:17.8)

09280-18004-000   0928018004000

0928018004000

Unit Price

33
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-14002-000   0924714002000

0924714002000

Unit Price

34
GASKET (13.8X18.8X0.4)
GASKET (13.8X18.8X0.4)

09168-14002-000   0916814002000

0916814002000

Unit Price

35
COUPLING, FINAL DRIVE GEAR
COUPLING, PROPELLER SHAFT

27172-38A00-000   2717238A00000

2717238A00000

Unit Price

36
YOKE, UNIVERSAL JOINT

27100-38A50-000  

27100-38A60-000
 2710038A50000

Unit Price

37
DISCONTINUE
SHAFT, PROPELLER

27151-38A01-000   2715138A01000

2715138A01000
Not available
38
SPRING

09440-18019-000   0944018019000

0944018019000

Unit Price

39
SEAL.OIL
OIL SEAL (28.4X48X15)

09283-30051-000   0928330051000

0928330051000

Unit Price

40
DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000   0938140003000

0938140003000

Unit Price

99x
DISCONTINUE
GEAR & CASE SET, FINAL BEVEL

27300-38835-000  

2730038835000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
