GEAR SHIFTING ASSY

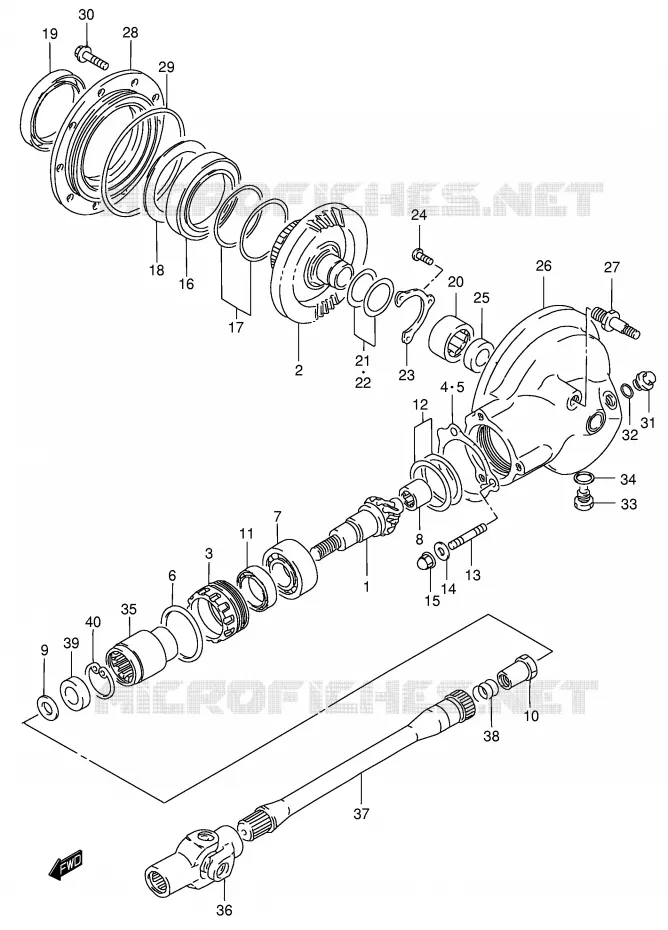

DRIVESHAFT FOR SUZUKI INTRUDER 800 2004

FUEL PUMP (MODEL K1 / K2 / K3 / K4 E33) REFER TO FIG.38A(F-15) FOR MODEL K5 E33

Item numbers

GEAR, FINAL DRIVE BEVEL(NT:11)
GEAR, DRIVE BEVEL (NT:11)

27311-38A00-000 2731138A00000

$254,97

Unit Price

GEAR, FINAL DRIVEN BEVEL(NT:34)
GEAR, DRIVEN BEVEL (NT:34)

27320-45C01-000 2732045C01000

$379,97

Unit Price

STOPPER, FINAL DRIVE BEARING
STOPPER, BEARING

27312-38A00-000 2731238A00000

$75,97

Unit Price

PLATE, BEARING STOPPER
PLATE

27313-38A00-000 2731338A00000

$8,97

Unit Price

PLATE, BEARING STOPPER
PLATE

27313-38A10-000 2731338A10000

$8,97

Unit Price

O RING
O RING (D:1.9, ID:61.6)

09280-62002-000 0928062002000

$5,97

Unit Price

BEARING
BEARING (30X62X23.8)

09267-30005-000 0926730005000

$146,97

Unit Price

BEARING (17X32X16)

09263-17028-000 0926317028000

$54,97

Unit Price

WASHER
WASHER (16X29X4)

09160-16029-000 0916016029000

$8,97

Unit Price

NUT

09159-16010-000 0915916010000

$16,97

Unit Price

SEAL, OIL
OIL SEAL (38X54X6)

09283-38009-000 0928338009000

$22,97

Unit Price

SHIM SET, FINAL DRIVE GEAR
SHIM SET, FINAL

27445-38810-000 2744538810000

$22,97

Unit Price

BOLT, STUD
STUD BOLT

09108-10095-000 0910810095000

$6,97

Unit Price

WASHER
LOCK WASHER

09164-10008-000 0916410008000

$2,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

FIN DRVN GR BEA *S1
BEARING, RH (70X110X13)

09262-70001-000 0926270001000

$158,97

Unit Price

SHIM SET, DRIVEN GEAR BEARING
SHIM SET, DRIVE GEAR BEARING

27327-34810-000 2732734810000

$30,97

Unit Price

PLATE, FINAL DRIVEN BRG OIL
PLATE

27328-34200-000 2732834200000

$11,97

Unit Price

DRVN GEAR R OIL SEAL
OIL SEAL, RH (70X96X16)

09289-70001-000 0928970001000

$74,97

Unit Price

BEARING FINAL DRIVEN
BEARING, LH (32X46X17.7)

09263-32007-000 0926332007000

$97,97

Unit Price

SHIM SET, FINAL DRIVEN GEAR
SHIM SET, FINAL DRIVE GEAR

27326-34820-000 2732634820000

$18,97

Unit Price

SHIM SET, FINAL DRIVE GEAR

27326-34810-000 2732634810000

$13,97

Unit Price

RETAINER, FINAL DRIVEN GEAR BRG
RETAINER, BEARING

27329-34200-000 2732934200000

$7,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

DRIVEN GEAR OIL SEAL
OIL SEAL (30X42X7)

09283-30028-000 0928330028000

$15,97

Unit Price

DISCONTINUE
CASE, FINAL GEAR

27450-38A12-000

Not available

BOLT, STUD
STUD BOLT

27481-38A01-000 2748138A01000

$18,97

Unit Price

CASE, FINAL GEAR BEARING

27460-07A01-000 2746007A01000

$157,97

Unit Price

O RING FINAL GR CASE
O RING (D:3.5, ID:131.6)

09280-00015-000 0928000015000

$15,97

Unit Price

BOLT

01550-08253-000

01550-0825A-000

$3,97

Unit Price

PLUG
PLUG, OIL FILLER

09247-18001-000 0924718001000

$10,97

Unit Price

SEAL NUT O RING
O RING (D:2.4, ID:17.8)

09280-18004-000 0928018004000

$8,97

Unit Price

PLUG
PLUG, OIL DRAIN

09247-14002-000 0924714002000

$7,97

Unit Price

GASKET (13.8X18.8X0.4)

09168-14002-000 0916814002000

$2,97

Unit Price

COUPLING, FINAL DRIVE GEAR
COUPLING, PROPELLER SHAFT

27172-38A00-000 2717238A00000

$63,97

Unit Price

YOKE, UNIVERSAL JOINT

27100-38A50-000

27100-38A60-000

$373,97

Unit Price

DISCONTINUE
SHAFT, PROPELLER

27151-38A01-000 2715138A01000

Not available

SPRING

09440-18019-000 0944018019000

$4,97

Unit Price

SEAL.OIL
OIL SEAL (28.4X48X15)

09283-30051-000 0928330051000

$16,97

Unit Price

DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000 0938140003000

$6,97

Unit Price

99x

GEAR & CASE SET, FINAL BEVEL

27300-38836-000 2730038836000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
