MUFFLER (MODEL K9 / L0)

OIL PUMP FOR SUZUKI INTRUDER 800 2007

FUEL PUMP

Item numbers

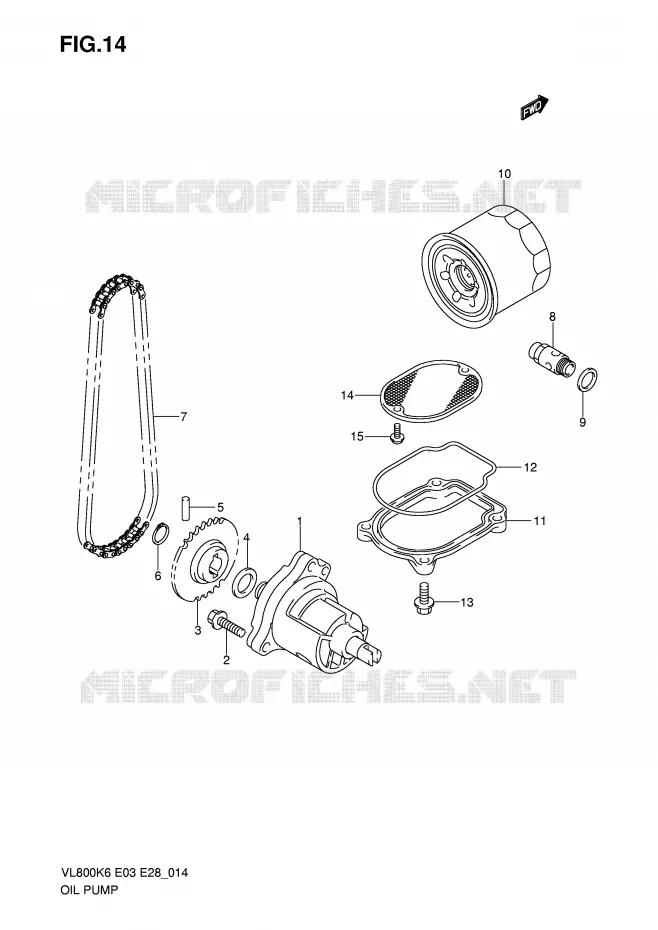

OIL PUMP Suzuki MOTO 800 INTRUDER 2007 VL800TK7(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
1
PUMP ASSY, ENGINE OIL
PUMP ASSY, ENG OIL

16400-38A01-000   1640038A01000

1640038A01000

Unit Price

2
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

3
SPROCKET, OIL PUMP DRIVEN

16331-38A10-000   1633138A10000

1633138A10000

Unit Price

4
SHIM,12X20X0.5<br />WASHER, OIL PUMP DRIVEN
SHIM, 12X20X0.5
WASHER, OIL PUMP DRIVEN

09181-12158-000   0918112158000

0918112158000

Unit Price

5
PIN<br />PIN, OIL PUMP DRIVEN SP
PIN
PIN, OIL PUMP DRIVEN SP

09261-05006-000   0926105006000

0926105006000

Unit Price

6
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

7
CHAIN, OIL PUMP DRIVE
CHAIN ASSY, OIL PUMP DR

16310-38A00-000   1631038A00000

1631038A00000

Unit Price

8
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF

16440-17C20-000   1644017C20000

1644017C20000

Unit Price

9
GASKET OIL GALLERY<br />GASKET, OIL RELIEF VALVE
GASKET OIL GALLERY
GASKET, OIL RELIEF VALVE

09168-16002-000   0916816002000

0916816002000

Unit Price

10
FILTER ASSY, ENGINE OIL

16510-03G00-X07  

16510-07J10-000
 1651003G00X07

Unit Price

11
CAP, OIL STRAINER

16523-38A00-000   1652338A00000

1652338A00000

Unit Price

12
O RING, OIL STRAINER CAP
O RING, OIL STRAINER CA

16528-38A00-000   1652838A00000

1652838A00000

Unit Price

13
BOLT
BOLT, OIL STRAINER CAP

01547-0620A-000   015470620A000

015470620A000

Unit Price

14
STRAINER, ENGINE OIL
STRAINER, ENG OIL

16520-38A00-000   1652038A00000

1652038A00000

Unit Price

14
STRAINER, ENGINE OIL
STRAINER, ENG OIL

16520-38A10-000   1652038A10000

1652038A10000

Unit Price

15
SCREW
SCREW, OIL STRAINER

02112-7512A-000   021127512A000

021127512A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
