TRANSMISSION

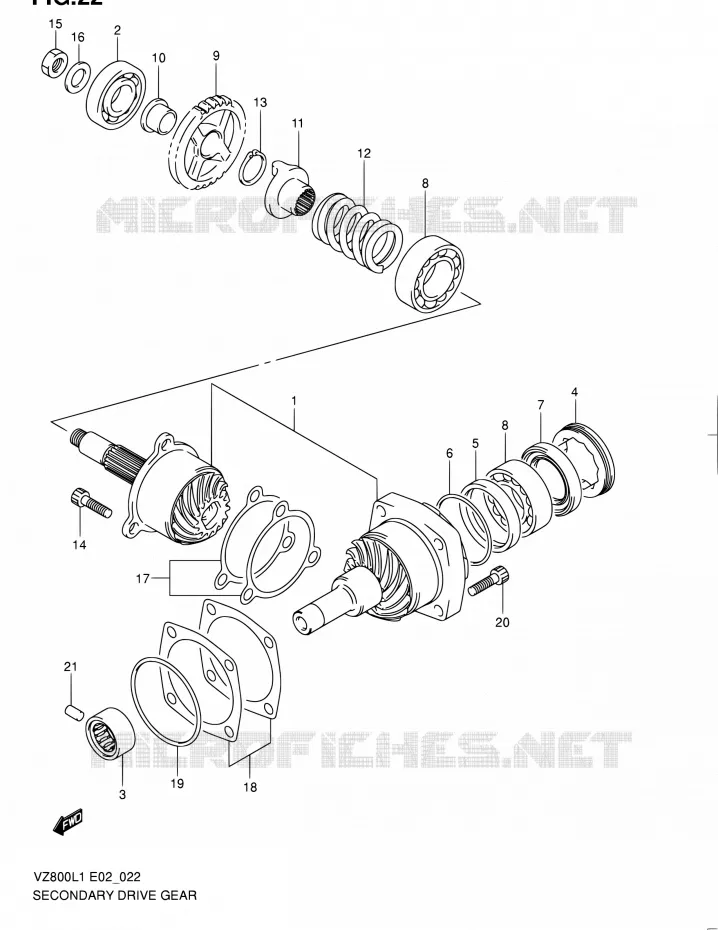

DRIVESHAFT FOR SUZUKI INTRUDER 800 2012

GEAR SHIFTING ASSY

Item numbers

GEAR & HOUSING SET, SECONDARY

24900-41810-000 2490041810000

$1 125,97

Unit Price

.BEARING (20X52X15)

09262-20073-000 0926220073000

$29,97

Unit Price

.BEARING (20X34X16)

09263-20038-000 0926320038000

$64,97

Unit Price

STOPPER, SEC DRIVEN BEARING
.STOPPER, BEARING

24942-38A50-000 2494238A50000

$60,97

Unit Price

.HOUSING, OIL SEAL

24943-38A50-000 2494338A50000

$78,97

Unit Price

.O RING (D:1.2, ID:59.6)

09280-60003-000 0928060003000

$3,97

Unit Price

.OIL SEAL (38X54X8.5)

09283-38016-000 0928338016000

$25,97

Unit Price

BEARING
.BEARING (30X62X23.8)

09267-30005-000 0926730005000

$130,97

Unit Price

GEAR, REDUCTION DRIVEN (NT:30)

24631-38A00-000 2463138A00000

$118,97

Unit Price

BUSH, REDUCTION DRIVEN GEAR
BUSH

24632-38A00-000 2463238A00000

$18,97

Unit Price

DOG, OUTPUT CAM

24922-38A00-000 2492238A00000

$60,97

Unit Price

SPRING

09440-44002-000 0944044002000

$27,97

Unit Price

CIRCLIP

08331-3121A-000 083313121A000

Not available

BOLT (8X25)

09106-08097-000 0910608097000

$4,97

Unit Price

SPR MOUNT DRUM NUT

09140-16001-000

09140-16005-000

$6,97

Unit Price

WASHER
WASHER (16X29X4)

09160-16029-000 0916016029000

$8,97

Unit Price

SHIM SET, SEC DRIVE GEAR

24935-38810-000 2493538810000

$22,97

Unit Price

SHIM SET, SEC DRIVEN HOUSING
SHIM SET, SEC DRIVE HOUSING

24945-05810-000 2494505810000

$37,97

Unit Price

O RING
O RING (D:2.1, ID:66.2)

09280-67004-000 0928067004000

$5,97

Unit Price

BOLT (8X25)

09106-08097-000 0910608097000

$4,97

Unit Price

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
