Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI INTRUDER 800 2015

FRONT FORK

Item numbers

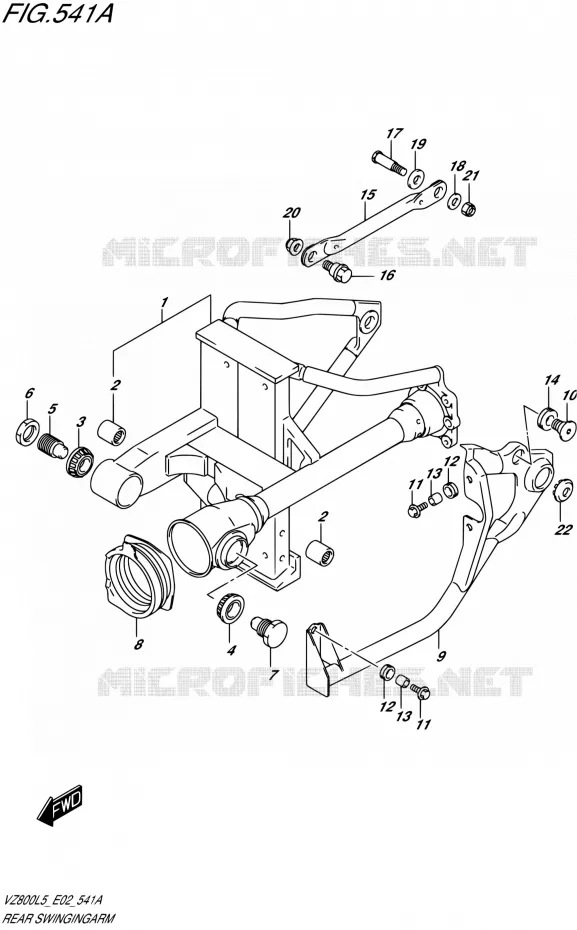

SWINGARM Suzuki MOTO 800 INTRUDER 2015 VZ800 L5 (E19)
1
2
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
1
61101-41891-019
SWINGING ARM SET, REAR (BLACK)

61101-41890-019   6110141890019

6110141890019
Not available
2
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

3
BEARING (17X40X13.25)

09265-17013-000   0926517013000

0926517013000

Unit Price

4
SWING PIVOT BEA *S1
BEARING (17X40X13.25)

09265-17012-000   0926517012000

0926517012000

Unit Price

5
BOLT, RR SWGARM PIVOT
BOLT, PIVOT RH

61213-24A00-000   6121324A00000

6121324A00000

Unit Price

6
NUT
NUT

09140-24007-000   0914024007000

0914024007000

Unit Price

7
BOLT, SWINGINGARM PIVOT, L
BOLT, PIVOT LH

61213-10F00-000   6121310F00000

6121310F00000

Unit Price

8
BOOT, PROPELLER SHAFT
BOOT, SHAFT

61372-41F00-000   6137241F00000

6137241F00000

Unit Price

9
COVER, RR SWINGINGARM, L(BLACK)
COVER LH (BLACK)

61120-41F10-019   6112041F10019

6112041F10019

Unit Price

10
BOLT, COVER RR
BOLT, COVER REAR

61127-41F20-000   6112741F20000

6112741F20000

Unit Price

11
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06152-000   0911606152000

0911606152000

Unit Price

12
CUSHION

09320-10056-000  

09320-10069-000
 0932010056000

Unit Price

13
SPACER (6.5X10X9.4)
SPACER (6.5X10X9.4)

09180-06286-000   0918006286000

0918006286000

Unit Price

14
CUSHION, RR SWGARM CO

09320-22003-000  

09320-22004-000
 0932022003000

Unit Price

15
TORQUELINK, RR
TORQUE LINK, REAR

64310-41F00-000   6431041F00000

6431041F00000

Unit Price

16
BOLT, RR TORQUELINK F
BOLT (10X22)

09111-10062-000   0911110062000

0911110062000

Unit Price

17
BOLT
BOLT (10X41)

09111-10057-000   0911110057000

0911110057000

Unit Price

18
WASHER (10X20X2.3)
WASHER (10X20X2.3)

09160-10142-000   0916010142000

0916010142000

Unit Price

19
CUSHION

09320-12501-000   0932012501000

0932012501000

Unit Price

20
NUT
NUT

08319-3110B-000   083193110B000

083193110B000

Unit Price

21
NUT

08319-2110A-000  

08319-2110B-000
 083192110A000

Unit Price

22
CAP, FRAME PIVOT
CAP

41899-42F10-000   4189942F10000

4189942F10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 INTRUDER 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 800 INTRUDER 2015

Choose your Suzuki 800 2015 INTRUDER model

800 INTRUDER 2015 VZ800 L5 (E19)

Suzuki INTRUDER

Displacement: 800 cc
Year: 2015
Model code VZ800 L5 (E19)
