FRONT CARBURETOR

REAR CARBURETOR FOR SUZUKI MARAUDER 800 2000

FRONT AIR FILTER

Item numbers

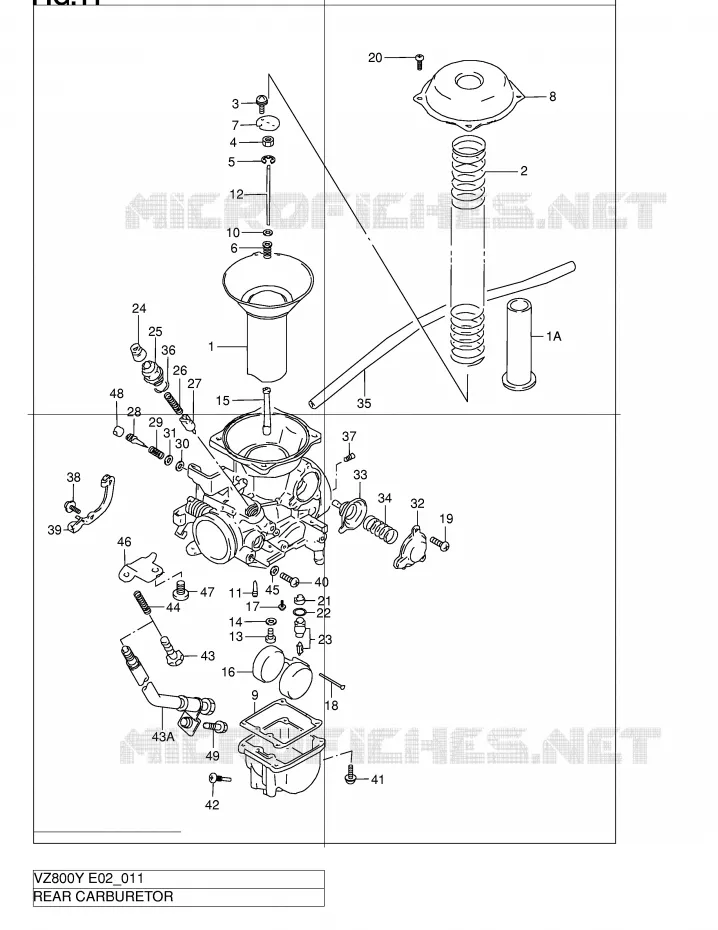

REAR CARBURETOR Suzuki MOTO 800 MARAUDER 2000 VZ800Y(E2)
1A
1
1
1
1
2
2
3
3
4
4
4
5
5
6
7
8
9
10
11
11
11
12
12
13
13
14
15
16
17
18
19
20
24
25
26
27
29
30
31
32
33
34
34
35
36
37
38
39
41
42
43
43A
44
46
47
47
48
49
1
DIAPHRAGM, CARBURETOR
DIAPHRAGM ASSY

13500-38A10-000   1350038A10000

1350038A10000

Unit Price

1
DIAPHRAGM ASSY

13500-48E90-000   1350048E90000

1350048E90000
Not available
1A
PIPE

13485-45C00-000   1348545C00000

1348545C00000
Not available
2
SPRING, DIAPHRAGM
SPRING

13503-38B00-000   1350338B00000

1350338B00000

Unit Price

3
SCREW

02112-33073-000   0211233073000

0211233073000

Unit Price

4
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

5
CLIP
CLIP

13394-10010-000   1339410010000

1339410010000

Unit Price

6
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

7
PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

8
COVER

13502-45CE0-000   1350245CE0000

1350245CE0000

Unit Price

9
GASKET, FLOAT CHAMBER
GASKET

13251-38A10-000   1325138A10000

1325138A10000

Unit Price

10
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

11
JET, PILOT
JET, PILOT (45)

09492-42010-000   0949242010000

0949242010000

Unit Price

11
JET, PILOT (40)

09492-40024-000   0949240024000

0949240024000
Not available
11
DISCONTINUE
JET, PILOT (50)

09492-50026-000   0949250026000

0949250026000
Not available
12
NEEDLE, JET
NEEDLE, JET (5D27-3)

13383-38A30-000   1338338A30000

1338338A30000

Unit Price

12
NEEDLE, JET (5D105-3)

13383-48EH0-000   1338348EH0000

1338348EH0000
Not available
13
JET,MAIN<br />JET, MAIN (100)
JET, MAIN
JET, MAIN (100)

09491-20017-000   0949120017000

0949120017000

Unit Price

13
JET, MAIN (105)

09491-21016-000   0949121016000

0949121016000

Unit Price

14
WASHER
WASHER

13382-03110-000   1338203110000

1338203110000

Unit Price

15
JET, NEEDLE (P-3)

09494-00750-000   0949400750000

0949400750000
Not available
16
FLOAT

13252-23010-000   1325223010000

1325223010000

Unit Price

17
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

18
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

19
SCREW
SCREW

13602-19B50-000   1360219B50000

1360219B50000

Unit Price

20
SCREW

13602-48B00-000   1360248B00000

1360248B00000

Unit Price

21
FILTER
FILTER

13376-19F00-000   1337619F00000

1337619F00000

Unit Price

22
O RING,NEEDLE VALVE SEAT<br />O RING
O RING, NEEDLE VALVE SEAT
O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

23
VALVE ASSY, NEEDLE

13370-39A00-000   1337039A00000

1337039A00000

Unit Price

23
VALVE ASSY, NEEDLE

13370-38E00-000   1337038E00000

1337038E00000
Not available
24
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

25
HOLDER,GUIDE<br />HOLDER
HOLDER, GUIDE
HOLDER

13418-43410-000   1341843410000

1341843410000

Unit Price

26
SPRING

13417-22010-000   1341722010000

1341722010000

Unit Price

27
PLUNGER,STARTER<br />PLUNGER
PLUNGER, STARTER
PLUNGER

13411-01400-000   1341101400000

1341101400000

Unit Price

28
SCREW,PILOT<br />SCREW, PILOT (1 5/8)
SCREW, PILOT
SCREW, PILOT (1 5/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

29
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

30
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

31
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

32
COVER

13484-45C00-000   1348445C00000

1348445C00000

Unit Price

33
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

34
SPRING

13481-45C10-000   1348145C10000

1348145C10000

Unit Price

34
SPRING

13481-37300-000   1348137300000

1348137300000
Not available
35
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

36
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

37
JET, PILOT(70)
JET, AIR (70)

09492-70004-000   0949270004000

0949270004000

Unit Price

38
SCREW

13602-05A30-000   1360205A30000

1360205A30000

Unit Price

39
DISCONTINUE
LEVER ASSY

13554-38A10-000   1355438A10000

1355438A10000
Not available
40
SCREW,MUFFLER COVER<br />SCREW
SCREW, MUFFLER COVER
SCREW

09125-05122-000   0912505122000

0912505122000

Unit Price

41
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

42
PLUG,DRAIN<br />SCREW, DRAIN
PLUG, DRAIN
SCREW, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

43
ADJUSTER

13267-39E50-000   1326739E50000

1326739E50000

Unit Price

43A
DISCONTINUE
ADJUSTER

13267-48E00-000   1326748E00000

1326748E00000
Not available
44
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

45
GASKET, DRAIN PLUG
GASKET

13523-46110-000   1352346110000

1352346110000

Unit Price

46
DISCONTINUE
BRACKET

13621-38A10-000   1362138A10000

1362138A10000
Not available
47
SCREW

13602-06128-000   1360206128000

1360206128000

Unit Price

47
SCREW

13602-45C00-000   1360245C00000

1360245C00000
Not available
48
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

49
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

99x
CARBURETOR ASSY, REAR

13220-48E60-000   1322048E60000

1322048E60000
Not available
99x
CARBURETOR ASSY, REAR

13220-48E90-000   1322048E90000

1322048E90000
Not available
99x
CARBURETOR ASSY, REAR

13220-48EC0-000   1322048EC0000

1322048EC0000
Not available
99x
CARBURETOR ASSY, REAR

13220-48EE0-000   1322048EE0000

1322048EE0000
Not available
99x
CARBURETOR ASSY, REAR

13220-48EH0-000   1322048EH0000

1322048EH0000
Not available
99x
CARBURETOR ASSY, REAR

13220-48EJ0-000   1322048EJ0000

1322048EJ0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 MARAUDER 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME (MODEL V/W/X/Y) for Suzuki MARAUDER 800 2000

FRAME (MODEL V / W / X / Y)
for Suzuki MARAUDER 800 2000

FRAME (MODEL K1/K2/K3) for Suzuki MARAUDER 800 2000

FRAME (MODEL K1 / K2 / K3)
for Suzuki MARAUDER 800 2000

FOOTREST for Suzuki MARAUDER 800 2000

FOOTREST
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL V) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL V)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL W) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL W)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL X) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL X)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL Y,SEE NOTE) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL Y,SEE NOTE)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL Y,SEE NOTE) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL Y,SEE NOTE)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL K1) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL K1)
for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL K2/K3) for Suzuki MARAUDER 800 2000

FUEL TANK (MODEL K2 / K3)
for Suzuki MARAUDER 800 2000

FAIRING for Suzuki MARAUDER 800 2000

FAIRING
for Suzuki MARAUDER 800 2000

HEADLAMP HOUSING for Suzuki MARAUDER 800 2000

HEADLAMP HOUSING
for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL V) for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL V)
for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL W) for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL W)
for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL X) for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL X)
for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL Y) for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL Y)
for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL K1/K2/K3) for Suzuki MARAUDER 800 2000

FRONT FENDER (MODEL K1 / K2 / K3)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL V) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL V)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL W) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL W)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL X) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL X)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL Y) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL Y)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL K1) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL K1)
for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL K2/K3) for Suzuki MARAUDER 800 2000

REAR FENDER (MODEL K2 / K3)
for Suzuki MARAUDER 800 2000

TOOL BOX (MODEL V/W) for Suzuki MARAUDER 800 2000

TOOL BOX (MODEL V / W)
for Suzuki MARAUDER 800 2000

TOOL BOX (MODEL X/Y/K1/K2/K3) for Suzuki MARAUDER 800 2000

TOOL BOX (MODEL X / Y / K1 / K2 / K3)
for Suzuki MARAUDER 800 2000

LABEL (MODEL V/W/X/Y) for Suzuki MARAUDER 800 2000

LABEL (MODEL V / W / X / Y)
for Suzuki MARAUDER 800 2000

LABEL (MODEL K1) for Suzuki MARAUDER 800 2000

LABEL (MODEL K1)
for Suzuki MARAUDER 800 2000

LABEL (MODEL K2/K3) for Suzuki MARAUDER 800 2000

LABEL (MODEL K2 / K3)
for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL V/W) for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL V / W)
for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL X/Y) for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL X / Y)
for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL K1/K2/K3) for Suzuki MARAUDER 800 2000

FAIRING (OPTIONAL, MODEL K1 / K2 / K3)
for Suzuki MARAUDER 800 2000

SEAT for Suzuki MARAUDER 800 2000

SEAT
for Suzuki MARAUDER 800 2000

Suzuki 800 MARAUDER 2000

Choose your Suzuki 800 2000 MARAUDER model

800 MARAUDER 2000 VZ800Y(E2)

Suzuki MARAUDER

Displacement: 800 cc
Year: 2000
Model code VZ800Y(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
