HEADLIGHT

INDICATORS FOR SUZUKI MARAUDER 800 2004

TAIL LIGHT

Item numbers

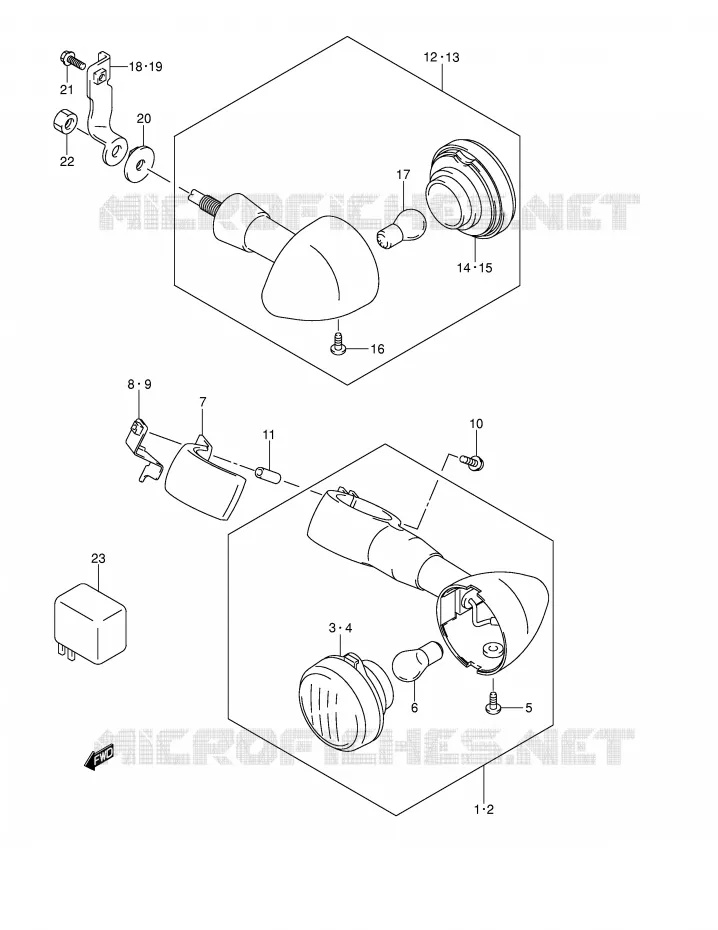

INDICATORS Suzuki MOTO 800 MARAUDER 2004 VZ800K4(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
LAMP ASSY, FR TURN SIGNAL, R
LAMP ASSY, FRONT TURNSIGNAL R

35601-48E60-000   3560148E60000

3560148E60000

Unit Price

2
LAMP ASSY, FR TURN SIGNAL, L
LAMP ASSY, FRONT TURNSIGNAL L

35602-48E60-000   3560248E60000

3560248E60000

Unit Price

3
LENS

35610-38AA0-000   3561038AA0000

3561038AA0000

Unit Price

4
LENS

35630-38AA0-000   3563038AA0000

3563038AA0000

Unit Price

5
SCREW(4X10)
SCREW

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V,21/5W)
BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
DISCONTINUE
COVER, FRONT TURNSIGNAL STAY

35645-48E00-000   3564548E00000

3564548E00000
Not available
8
DISCONTINUE
BRACKET, FRONT TURNSIGNAL R

35671-48E10-000   3567148E10000

3567148E10000
Not available
9
DISCONTINUE
BRACKET, FRONT TURNSIGNAL L

35681-48E10-000   3568148E10000

3568148E10000
Not available
10
SCREW(6X25)
SCREW

09136-06126-000   0913606126000

0913606126000

Unit Price

11
SPACER 6.4X9.2X12
SPACER

09180-06121-000   0918006121000

0918006121000

Unit Price

12
LAMP ASSY, RR TURNSIGNAL RH

35603-48EC0-000  

35603-48EC1-000
 3560348EC0000

Unit Price

13
LAMP ASSY, RR TURNSIGNAL LH

35604-48EC0-000  

35604-48EC1-000
 3560448EC0000

Unit Price

14
LENS

35630-38AA0-000   3563038AA0000

3563038AA0000

Unit Price

15
LENS

35610-38AA0-000   3561038AA0000

3561038AA0000

Unit Price

16
SCREW(4X10)
SCREW

35623-38AA0-000   3562338AA0000

3562338AA0000

Unit Price

17
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

18
DISCONTINUE
REINF, REAR TURNSIGNAL R

35608-48E01-000   3560848E01000

3560848E01000
Not available
19
DISCONTINUE
REINF, REAR TURNSIGNAL L

35609-48E01-000   3560948E01000

3560948E01000
Not available
20
SPACER,RR TURNSIGNAL<br />SPACER, REAR TURNSIGNAL
SPACER, RR TURNSIGNAL
SPACER, REAR TURNSIGNAL

35695-17C00-000   3569517C00000

3569517C00000

Unit Price

21
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

22
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

23
RELAY ASSY,TURNSIGNAL LAMP
RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000  

38610-03F01-000
 3861003F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 MARAUDER 2004

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 800 MARAUDER 2004

Choose your Suzuki 800 2004 MARAUDER model

800 MARAUDER 2004 VZ800K4(E3/E28)

Suzuki MARAUDER

Displacement: 800 cc
Year: 2004
Model code VZ800K4(E3 / E28)
