LEVERS - HANDGRIPS (MODEL K7 / K8 / K9)

FRONT FORK FOR SUZUKI MARAUDER 800 2007

STEERING COLUMN

Item numbers

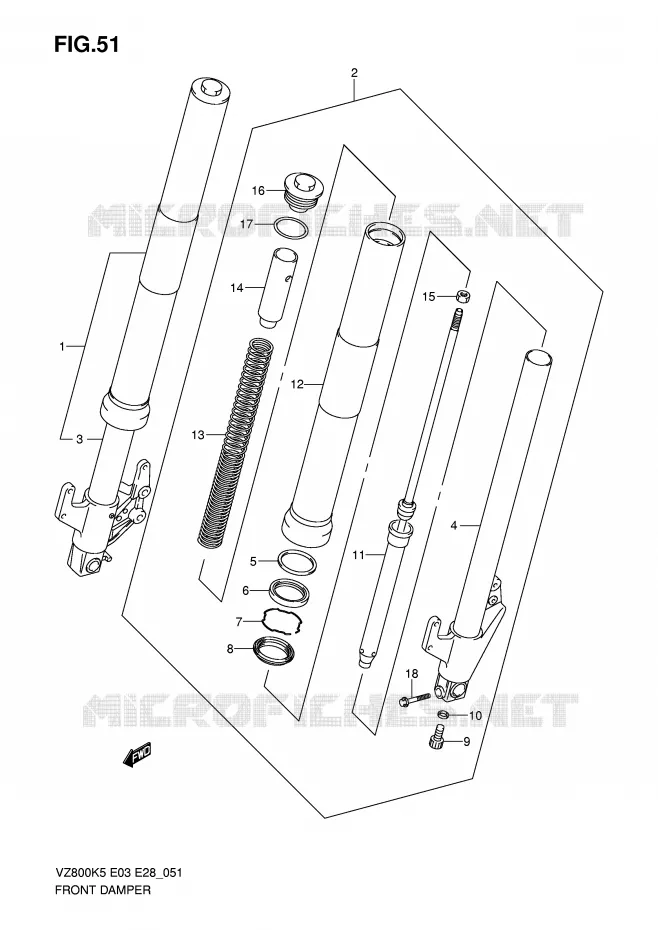

FRONT FORK Suzuki MOTO 800 MARAUDER 2007 VZ800K7(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-39G00-000   5110339G00000

5110339G00000

Unit Price

2
DAMPER ASSY, FR FORK, L
DAMPER ASSY, FRONT FORK LH

51104-39G00-000   5110439G00000

5110439G00000

Unit Price

3
TUBE, INNER, R

51110-39G00-000  

51110-39G01-000
 5111039G00000

Unit Price

4
TUBE, INNER, L

51120-39G00-000  

51120-39G01-000
 5112039G00000

Unit Price

5
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

6
SEAL, OIL

51153-10G50-000   5115310G50000

5115310G50000

Unit Price

7
RING,OIL SEAL STOPPER<br />RING
RING, OIL SEAL STOPPER
RING

51156-49440-000   5115649440000

5115649440000

Unit Price

8
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

9
BOLT,CYLINDER<br />BOLT
BOLT, CYLINDER
BOLT

51147-40300-000   5114740300000

5114740300000

Unit Price

10
GASKET,CYLINDER<br />GASKET
GASKET, CYLINDER
GASKET

51148-40300-000   5114840300000

5114840300000

Unit Price

11
CYLINDER

51146-39G00-000   5114639G00000

5114639G00000

Unit Price

12
TUBE, OUTER

51130-39G00-000   5113039G00000

5113039G00000

Unit Price

13
DISCONTINUE
SPRING, FRONT

51171-39G00-000   5117139G00000

5117139G00000
Not available
14
SPACER, SPRING

51176-40F30-000   5117640F30000

5117640F30000

Unit Price

15
NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

16
CAP

51351-39G00-000   5135139G00000

5135139G00000

Unit Price

17
O RING

62278-14100-000   6227814100000

6227814100000

Unit Price

18
BOLT, AXLE STOPPER

51166-10G00-000  

51166-10G10-000
 5116610G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
