Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI MARAUDER 800 2011

STEERING COLUMN

Item numbers

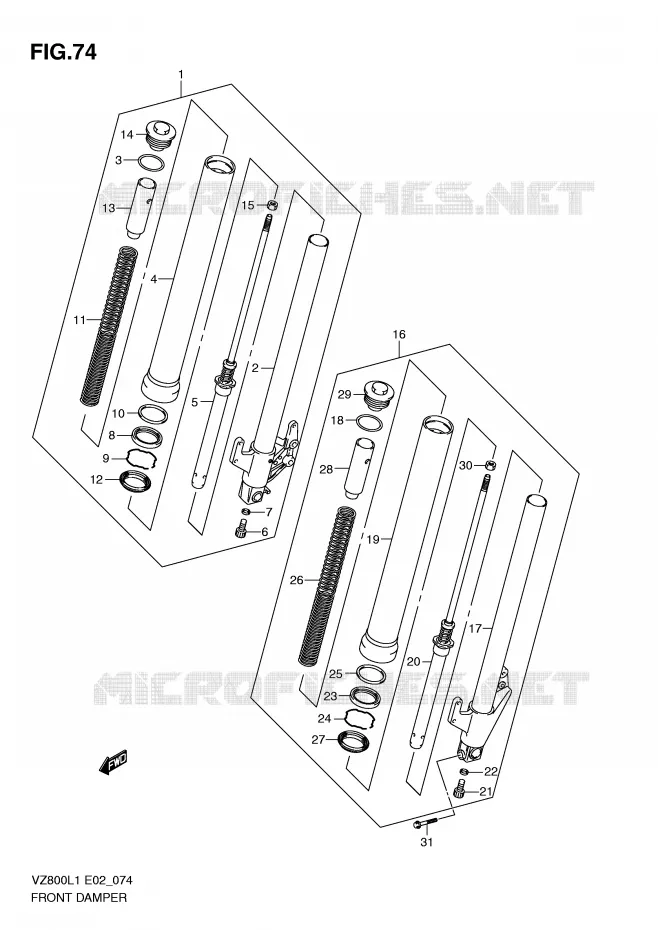

FRONT FORK Suzuki MOTO 800 MARAUDER 2011 VZ800L1(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
DAMPER ASSY, FR FORK, R
DAMPER ASSY, FRONT FORK RH

51103-39G20-000  

5110339G20000
Not available
2
TUBE, INNER, R

51110-39G20-000  

51110-39G21-000
 5111039G20000

Unit Price

3
O RING

51117-39G20-000   5111739G20000

5111739G20000

Unit Price

4
TUBE, OUTER

51130-39G20-000   5113039G20000

5113039G20000

Unit Price

5
CYLINDER

51146-39G20-000   5114639G20000

5114639G20000

Unit Price

6
BOLT

51147-05H00-000   5114705H00000

5114705H00000

Unit Price

7
GASKET
GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

8
SEAL, OIL

51153-10G50-000   5115310G50000

5115310G50000

Unit Price

9
RING, OIL SEAL STOPPER
RING, OIL SEAL STOPPER

51156-49440-000   5115649440000

5115649440000

Unit Price

10
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

11
SPRING, FRONT

51171-39G20-000   5117139G20000

5117139G20000
Not available
12
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

13
SPACER, SPRING

51176-21H00-000   5117621H00000

5117621H00000

Unit Price

14
CAP

51351-39G20-000   5135139G20000

5135139G20000
Not available
15
NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

16
DAMPER ASSY, FRONT FORK LH

51104-39G20-000   5110439G20000

5110439G20000
Not available
17
TUBE, INNER, L

51120-39G20-000  

51120-39G21-000
 5112039G20000

Unit Price

18
O RING

51117-39G20-000   5111739G20000

5111739G20000

Unit Price

19
TUBE, OUTER

51130-39G20-000   5113039G20000

5113039G20000

Unit Price

20
CYLINDER

51146-39G20-000   5114639G20000

5114639G20000

Unit Price

21
BOLT

51147-05H00-000   5114705H00000

5114705H00000

Unit Price

22
GASKET
GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

23
SEAL, OIL

51153-10G50-000   5115310G50000

5115310G50000

Unit Price

24
RING, OIL SEAL STOPPER
RING, OIL SEAL STOPPER

51156-49440-000   5115649440000

5115649440000

Unit Price

25
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

26
SPRING, FRONT

51171-39G20-000   5117139G20000

5117139G20000
Not available
27
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

28
SPACER, SPRING

51176-21H00-000   5117621H00000

5117621H00000

Unit Price

29
CAP

51351-39G20-000   5135139G20000

5135139G20000
Not available
30
NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

31
BOLT, AXLE STOPPER

51166-10G10-000   5116610G10000

5116610G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 MARAUDER 2011

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 800 MARAUDER 2011

Choose your Suzuki 800 2011 MARAUDER model

800 MARAUDER 2011 VZ800L1(E2)

MARAUDER 800

Suzuki MARAUDER

Displacement: 800 cc
Year: 2011
Model code VZ800L1(E2)
