FRONT FORK FOR SUZUKI V-STROM 800 2023

STEERING COLUMN

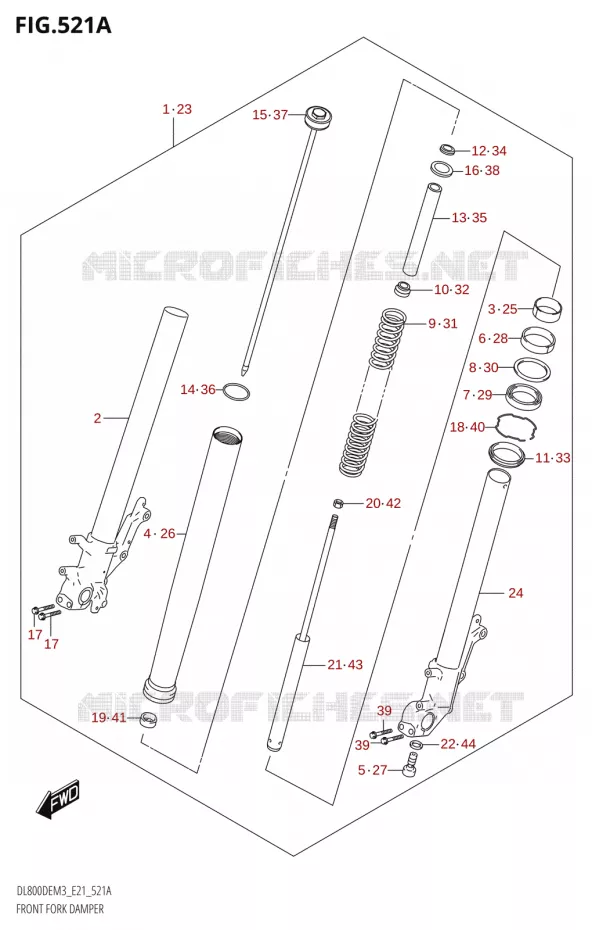

FRONT FORK Suzuki MOTO 800 V-STROM 2023 DL800DERC M3 (E21)
1
DAMPER ASSY, R

51103-25L30-000   5110325L30000

5110325L30000

Unit Price

2
.TUBE, INNER, R

51110-25L30-000   5111025L30000

5111025L30000

Unit Price

3
.BUSH, SLIDE

51121-07J00-000   5112107J00000

5112107J00000

Unit Price

4
.TUBE, OUTER

51131-25L30-000   5113125L30000

5113125L30000

Unit Price

5
.BOLT, CENTER

51147-25L30-000   5114725L30000

5114725L30000

Unit Price

6
.BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

7
.SEAL, OIL

51153-47H00-000   5115347H00000

5115347H00000

Unit Price

8
.SPACER,SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

9
.SPRING, FR

51171-25L30-000   5117125L30000

5117125L30000

Unit Price

10
DISCONTINUE
.JOINT, SPRING LWR

51172-22D00-000  

5117222D00000
Not available
11
DUST SEAL
.SEAL, DUST

51173-25L30-000   5117325L30000

5117325L30000

Unit Price

12
GUIDE,SPRING UPR<br />.GUIDE,SPRING,UPPER
GUIDE, SPRING UPR
.GUIDE, SPRING, UPPER

51175-22D00-000   5117522D00000

5117522D00000

Unit Price

13
.COLLAR SPRING

51176-25L30-000   5117625L30000

5117625L30000

Unit Price

14
.O-RING

51187-47H00-000   5118747H00000

5118747H00000

Unit Price

15
.BOLT, FORK

51189-25L30-000   5118925L30000

5118925L30000

Unit Price

16
.SEAT, RUBBER

51193-25L30-000   5119325L30000

5119325L30000

Unit Price

17
.BOLT

51328-37F80-000   5132837F80000

5132837F80000

Unit Price

18
CIRCLIP,FORK OIL SEAL<br />.RING,STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

19
.PLATE, CENTERING

51815-17D00-000   5181517D00000

5181517D00000

Unit Price

20
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

21
.PISTON ROD

52110-25L30-000   5211025L30000

5211025L30000

Unit Price

22
WASHER<br />.WASHER(10X15X1.5)
WASHER
.WASHER(10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

23
DAMPER ASSY, L

51104-25L30-000   5110425L30000

5110425L30000

Unit Price

24
.TUBE, INNER, L

51120-25L30-000   5112025L30000

5112025L30000

Unit Price

25
.BUSH, SLIDE

51121-07J00-000   5112107J00000

5112107J00000

Unit Price

26
.TUBE, OUTER

51131-25L30-000   5113125L30000

5113125L30000

Unit Price

27
.BOLT, CENTER

51147-25L30-000   5114725L30000

5114725L30000

Unit Price

28
.BUSH, GUIDE

51152-47H00-000   5115247H00000

5115247H00000

Unit Price

29
.SEAL, OIL

51153-47H00-000   5115347H00000

5115347H00000

Unit Price

30
.SPACER,SEAL
.SPACER, SEAL

51168-17C00-000   5116817C00000

5116817C00000

Unit Price

31
.SPRING, FR

51171-25L30-000   5117125L30000

5117125L30000

Unit Price

32
DISCONTINUE
.JOINT, SPRING LWR

51172-22D00-000  

5117222D00000
Not available
33
DUST SEAL
.SEAL, DUST

51173-25L30-000   5117325L30000

5117325L30000

Unit Price

34
GUIDE,SPRING UPR<br />.GUIDE,SPRING,UPPER
GUIDE, SPRING UPR
.GUIDE, SPRING, UPPER

51175-22D00-000   5117522D00000

5117522D00000

Unit Price

35
.COLLAR SPRING

51176-25L30-000   5117625L30000

5117625L30000

Unit Price

36
.O-RING

51187-47H00-000   5118747H00000

5118747H00000

Unit Price

37
.BOLT, FORK

51189-25L30-000   5118925L30000

5118925L30000

Unit Price

38
.SEAT, RUBBER

51193-25L30-000   5119325L30000

5119325L30000

Unit Price

39
.BOLT

51328-37F80-000   5132837F80000

5132837F80000

Unit Price

40
CIRCLIP,FORK OIL SEAL<br />.RING,STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

41
.PLATE, CENTERING

51815-17D00-000   5181517D00000

5181517D00000

Unit Price

42
.NUT
.NUT

51827-27E00-000   5182727E00000

5182727E00000

Unit Price

43
.PISTON ROD

52110-25L30-000   5211025L30000

5211025L30000

Unit Price

44
WASHER<br />.WASHER(10X15X1.5)
WASHER
.WASHER(10X15X1.5)

09161-10009-000   0916110009000

0916110009000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki V-STROM 800DE of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 800 V-STROM 2023

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 V-STROM 2023

Select your Suzuki 2023 model

800 V-STROM 2023 DL800DERC M3 (E21)

V-STROM 800DE

Suzuki V-STROM

Displacement: 800 cc
Year: 2023
Model code DL800DERC M3 (E21)
Color: Champion yellow No.2 (YU1) / Glass Mat Mechanical Gray (QT7) / Glass Sparkle Black (YVB)
