Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

INDICATORS (MODEL K4 / K5)

TAIL LIGHT (MODEL K1 / K2 / K3) FOR SUZUKI VOLUSIA 800 2005

TAIL LIGHT (MODEL K4 / K5)

Item numbers

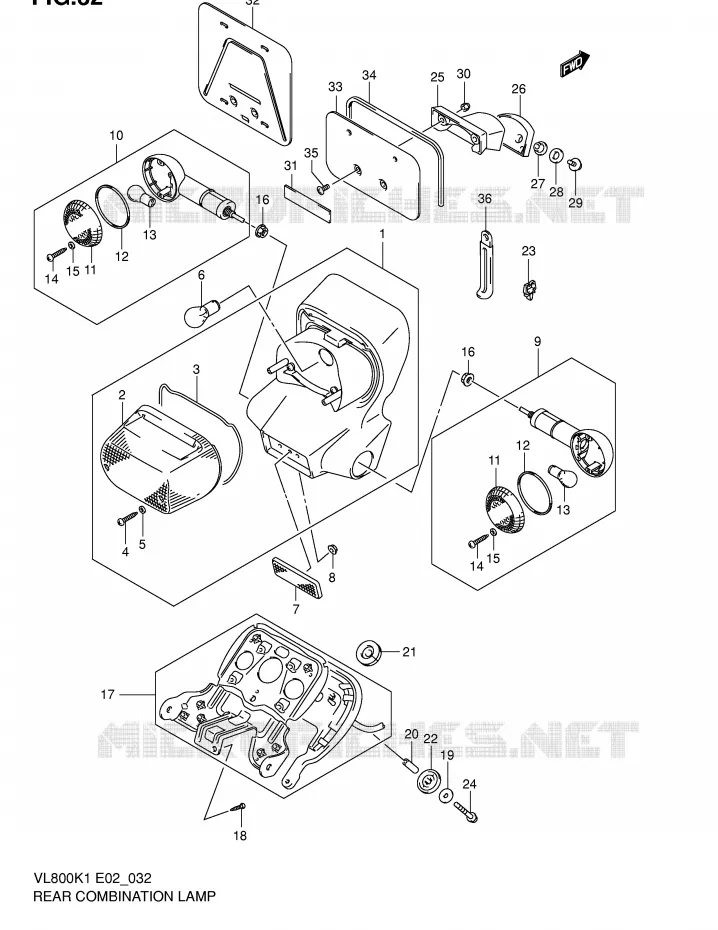

TAIL LIGHT (MODEL K1/K2/K3) Suzuki MOTO 800 VOLUSIA 2005 VL800K5(E2)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
34
35
36
1
LAMP UNIT

35735-41F01-999   3573541F01999

3573541F01999
Not available
2
LENS

35712-10F00-000   3571210F00000

3571210F00000
Not available
3
DISCONTINUE
GASKET

35613-80F00-000   3561380F00000

3561380F00000
Not available
4
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET<br />PACKING
GASKET
PACKING

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V,21/5W)
BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
REFLECTOR ASSY, RR

35970-07F00-000  

35970-07F01-000
 3597007F00000

Unit Price

8
NUT

08316-20053-000  

08316-2005A-000
 0831620053000

Unit Price

9
LAMP ASSY, RR TURNSIGNAL, R
REAR TURN ASSY, RH

35603-41F00-000   3560341F00000

3560341F00000

Unit Price

10
LAMP ASSY, RR TURNSIGNAL, L
REAR TURN ASSY, LH

35604-41F00-000   3560441F00000

3560441F00000

Unit Price

11
LENS

35652-38A21-000   3565238A21000

3565238A21000

Unit Price

12
GASKET

35613-38A00-000   3561338A00000

3561338A00000

Unit Price

13
BULB(12V60/55W,H4)<br />BULB (12V,21W)
BULB(12V60/55W, H4)
BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

14
SCREW

03211-04253-000  

03211-0425B-000
 0321104253000

Unit Price

15
GASKET<br />PACKING
GASKET
PACKING

35627-43010-000   3562743010000

3562743010000

Unit Price

16
NUT

08316-20103-000  

08316-2010B-000
 0831620103000

Unit Price

17
SOCKET & CORD ASSY

35718-41F00-000   3571841F00000

3571841F00000

Unit Price

18
DISCONTINUE
SCREW

03211-05163-000  

0321105163000
Not available
19
WASHER 6.5X20X1.6<br />WASHER (6.5X210X1.6)
WASHER 6.5X20X1.6
WASHER (6.5X210X1.6)

09160-06088-000   0916006088000

0916006088000

Unit Price

20
SPACER (6.5X9X23)

09180-06275-000   0918006275000

0918006275000

Unit Price

21
GROMMET(10X35X9.5)
GROMMET

09308-10017-000   0930810017000

0930810017000

Unit Price

22
CUSHION

09320-09046-000   0932009046000

0932009046000

Unit Price

23
CLAMP

09403-11313-000   0940311313000

0940311313000
Not available
24
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

25
STAY, LICENSE PLATE HOLDER

35928-41F00-000   3592841F00000

3592841F00000

Unit Price

26
CUSHION, LICENSE HOLDER STAY
CUSHION, HOLDER STAY

35929-41F00-000   3592941F00000

3592941F00000

Unit Price

27
WASHER
SPACER

09169-06077-000   0916906077000

0916906077000

Unit Price

28
WASHER
WASHER

09160-06109-000   0916006109000

0916006109000

Unit Price

29
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

30
NUT<br />NUT, LICENSE HOLDER
NUT
NUT, LICENSE HOLDER

08313-10067-000   0831310067000

0831310067000

Unit Price

31
PROTECTOR(20X90)X1.0<br />PROTECTOR, HOLDER
PROTECTOR(20X90)X1.0
PROTECTOR, HOLDER

33652-26E00-000   3365226E00000

3365226E00000

Unit Price

32
HOLDER

63461-41F20-000   6346141F20000

6346141F20000
Not available
33
HOLDER

63461-41F00-000   6346141F00000

6346141F00000
Not available
34
MOLDING, LICENSE HOLDER

94635-10F00-000   9463510F00000

9463510F00000
Not available
34
MOLDING
MOLDING, LICENSE HOLDER

94635-19C00-000   9463519C00000

9463519C00000
Not available
35
SCREW

02142-06163-000  

02142-0616A-000
 0214206163000

Unit Price

36
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
