SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI VOLUSIA 800 2005

OPTIONS

Item numbers

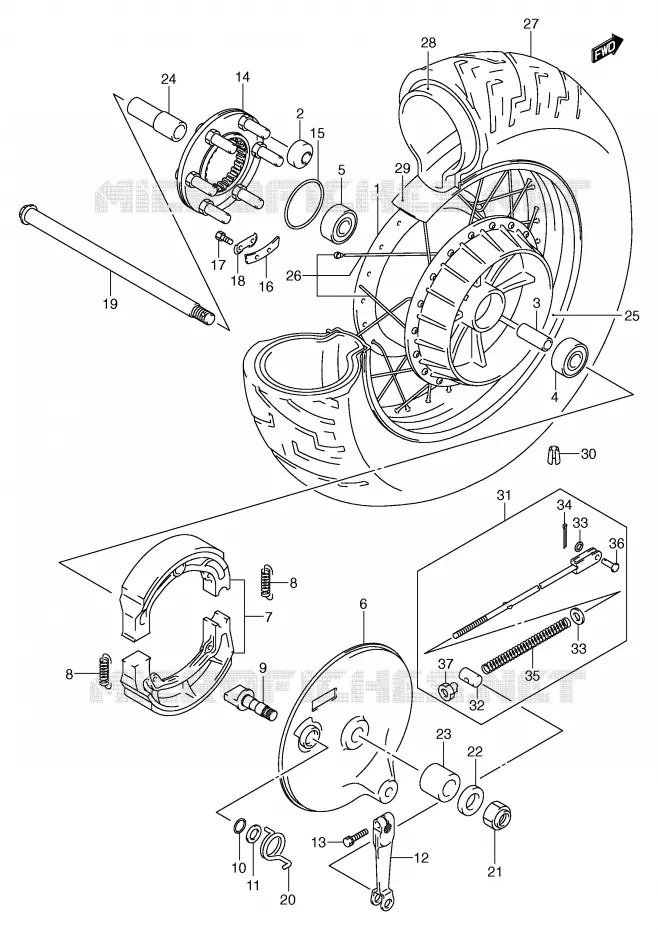

REAR WHEEL Suzuki MOTO 800 VOLUSIA 2005 VL800ZK5(E2)
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
30
31
32
33
33
34
35
36
37
1
HUB, RR WHEEL
HUB, REAR WHEEL

64110-41F00-000   6411041F00000

6411041F00000

Unit Price

2
BUSH
BUSHING (12X41X34)

09319-12019-000   0931912019000

0931912019000

Unit Price

3
SPACER(17.5X25X113)
SPACER, RR HUB (17.5X25X80)

09180-17092-000   0918017092000

0918017092000

Unit Price

4
BALL BEARING

08123-63037-000  

08123-6303B-000
 0812363037000

Unit Price

5
B. BEARING 17X47X14<br />BEARING, LH
B. BEARING 17X47X14
BEARING, LH

08143-63037-000   0814363037000

0814363037000

Unit Price

6
PANEL, RR BRAKE ANCHOR

64210-38A40-000  

64210-38A70-13L
 6421038A40000

Unit Price

7
SHOE SET, BRAKE

64400-38820-000   6440038820000

6440038820000

Unit Price

8
SPRING,BRAKE SHOE<br />SPRING, SHOE
SPRING, BRAKE SHOE
SPRING, SHOE

55420-30000-000   5542030000000

5542030000000

Unit Price

9
CAM, RR BRAKE
CAM, BRAKE

64441-38A20-000   6444138A20000

6444138A20000

Unit Price

10
O'RING<br />O RING (ID:14.8,D:2.40)
O'RING
O RING (ID:14.8, D:2.40)

09280-15003-000   0928015003000

0928015003000

Unit Price

11
WASHER,15.5X24X1.6<br />WASHER
WASHER, 15.5X24X1.6
WASHER

09160-15048-000   0916015048000

0916015048000

Unit Price

12
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-38A01-000   6445138A01000

6445138A01000

Unit Price

13
BOLT

01570-06257-000   0157006257000

0157006257000

Unit Price

14
JOINT ASSY, RR HUB DRIVEN
JOINT, HUB DRIVEN

64680-45113-000   6468045113000

6468045113000

Unit Price

15
O RING, D:2.1, ID:65
O RING (ID:65, D:2.10)

09280-65003-000   0928065003000

0928065003000

Unit Price

16
WASHER, THRUST(T:1.6)
WASHER, THRUST

64677-45110-000   6467745110000

6467745110000

Unit Price

17
BOLT (6X16)

09119-06049-000   0911906049000

0911906049000

Unit Price

18
WASHER

09169-06030-000   0916906030000

0916906030000

Unit Price

19
AXLE,RR<br />AXLE, REAR (L:302)
AXLE, RR
AXLE, REAR (L:302)

64711-19F00-000   6471119F00000

6471119F00000

Unit Price

20
SPRING ****
SPRING, CAM

09448-33006-000   0944833006000

0944833006000

Unit Price

21
NUT

08319-21168-000  

08319-2116A-000
 0831921168000

Unit Price

22
WASHER,17X30X3.20<br />WASHER
WASHER, 17X30X3.20
WASHER

09160-17050-000   0916017050000

0916017050000

Unit Price

23
SPACER, RR AXLE, R
SPACER, RH

64741-41F00-000   6474141F00000

6474141F00000

Unit Price

24
SPACER, RR AXLE, L
SPACER, LH

64772-34201-000   6477234201000

6477234201000

Unit Price

25
RIM, RR WHEEL(15M/CXMT4.00 FE)
RIM, WHEEL, 15M/CXMT4.00 FE

65311-41F00-000   6531141F00000

6531141F00000

Unit Price

26
SPOKE SET, RR WHEEL
SPOKE SET, REAR WHEEL

65320-41F00-000   6532041F00000

6532041F00000

Unit Price

27
TIRE, 170/80-15M/C 77

65100-41F00-000  

65100-41F01-000
 6510041F00000

Unit Price

28
65200-41F01
TUBE ASSY, WHEEL INNER

65200-41F00-000   6520041F00000

6520041F00000
Not available
29
PROTECTOR, WHEEL INNER TUBE

65261-41F00-000  

65261-41F10-000
 6526141F00000

Unit Price

30
BALANCER, WHEEL(30G)

55412-38A00-000  

55412-41F00-000
 5541238A00000

Unit Price

30
BALANCER, WHEEL(30G)

55413-38A00-000  

55413-41F00-000
 5541338A00000

Unit Price

31
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-41F00-000   4330041F00000

4330041F00000

Unit Price

32
PIN(13X18)<br />PIN, REAR BRAKE ROD
PIN(13X18)
PIN, REAR BRAKE ROD

09209-13018-000   0920913018000

0920913018000

Unit Price

33
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

34
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

35
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

36
FR BRAKE CABLE PIN
PIN

09200-06013-000   0920006013000

0920006013000

Unit Price

37
09150-06010
NUT

09150-06014-000  

0915006014000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
