TRANSMISSION

DRIVESHAFT FOR SUZUKI VOLUSIA 800 2006

GEAR SHIFTING ASSY

Item numbers

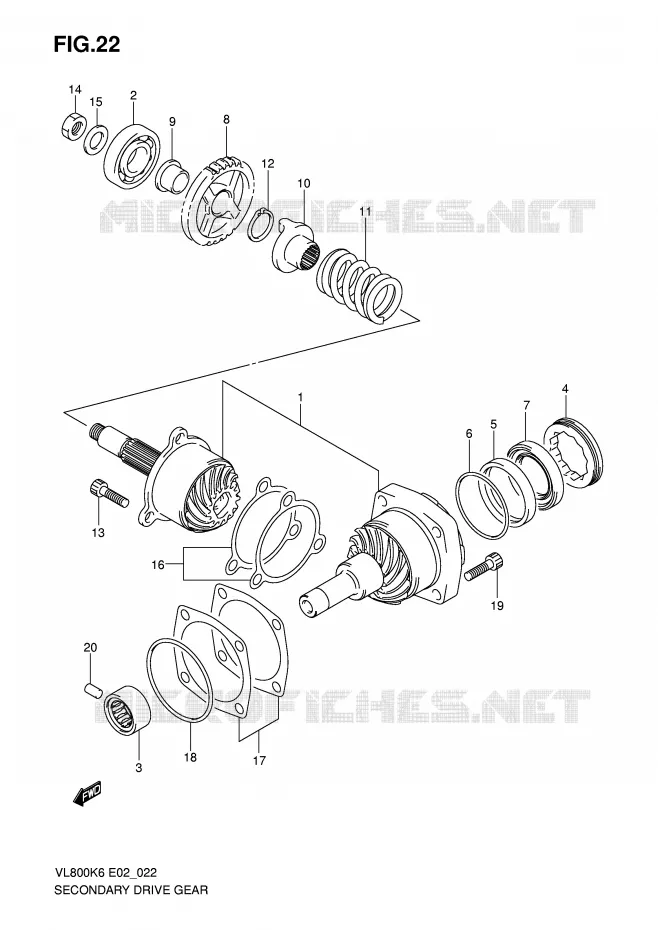

DRIVESHAFT Suzuki MOTO 800 VOLUSIA 2006 VL800CUEK6(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
GEAR & HOUSING SET, SECONDARY

24900-41810-000   2490041810000

2490041810000

Unit Price

2
BEARING (20X52X15)

09262-20073-000   0926220073000

0926220073000

Unit Price

3
BEARING (20X34X16)

09263-20038-000   0926320038000

0926320038000

Unit Price

4
STOPPER, SEC DRIVEN BEARING
STOPPER, BEARING

24942-38A50-000   2494238A50000

2494238A50000

Unit Price

5
HOUSING, OIL SEAL

24943-38A50-000   2494338A50000

2494338A50000

Unit Price

6
O RING (D:1.2, ID:59.6)

09280-60003-000   0928060003000

0928060003000

Unit Price

7
OIL SEAL (38X54X8.5)

09283-38016-000   0928338016000

0928338016000

Unit Price

8
GEAR, REDUCTION DRIVEN (NT:30)

24631-38A00-000   2463138A00000

2463138A00000

Unit Price

9
BUSH, REDUCTION DRIVEN GEAR
BUSH

24632-38A00-000   2463238A00000

2463238A00000

Unit Price

10
DOG, OUTPUT CAM

24922-38A00-000   2492238A00000

2492238A00000

Unit Price

11
SPRING

09440-44002-000   0944044002000

0944044002000

Unit Price

12
CIRCLIP

08331-3121A-000   083313121A000

083313121A000
Not available
13
BOLT (8X25)
BOLT (8X25)

09106-08097-000   0910608097000

0910608097000

Unit Price

14
SPR MOUNT DRUM NUT

09140-16001-000  

09140-16005-000
 0914016001000

Unit Price

15
WASHER
WASHER (16X29X4)

09160-16029-000   0916016029000

0916016029000

Unit Price

16
SHIM SET, SEC DRIVE GEAR

24935-38810-000   2493538810000

2493538810000

Unit Price

17
SHIM SET, SEC DRIVEN HOUSING
SHIM SET, SEC DRIVE HOUSING

24945-05810-000   2494505810000

2494505810000

Unit Price

18
O RING
O RING (D:2.1, ID:66.2)

09280-67004-000   0928067004000

0928067004000

Unit Price

19
BOLT (8X25)
BOLT (8X25)

09106-08097-000   0910608097000

0910608097000

Unit Price

20
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
