INDICATORS (MODEL K9 / L0)

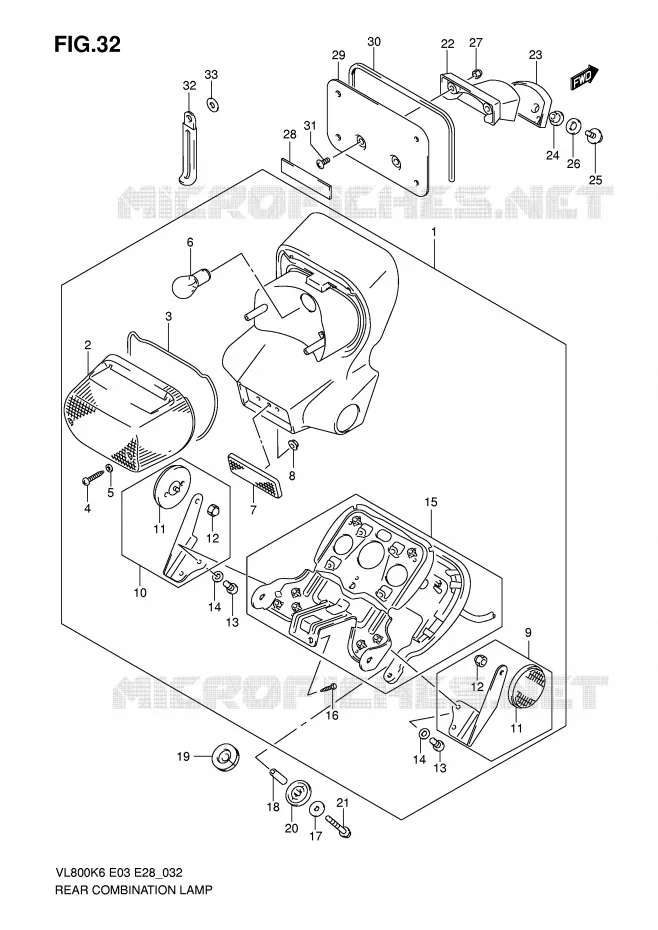

TAIL LIGHT (MODEL K6 / K7 / K8) FOR SUZUKI VOLUSIA 800 2007

TAIL LIGHT (MODEL K9 / L0)

Item numbers

LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-41F61-000 3571041F61000

$585,97

Unit Price

LENS

35712-10F30-000

35712-10F00-000

$87,97

Unit Price

DISCONTINUE
GASKET

35613-80F00-000 3561380F00000

Not available

SCREW

03211-04207-000 0321104207000

$2,97

Unit Price

GASKET
PACKING

35627-43010-000 3562743010000

$2,97

Unit Price

BULB(12V1.4W G30)
BULB (12V21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

REFLECTOR ASSY, RR
REFLEX REFLECTOR ASSY

35970-07F01-000 3597007F01000

$21,97

Unit Price

NUT

08316-2005A-000 083162005A000

$3,97

Unit Price

DISCONTINUE
REFLEX REFLECTOR, RH

35078-41F30-000 3507841F30000

Not available

DISCONTINUE
REFLEX REFLECTOR, LH

35079-41F30-000 3507941F30000

Not available

REFLEX REFLECTOR, RR
REFLEX REFLECTOR

35970-14A10-000 3597014A10000

$20,97

Unit Price

NUT

08313-20057-000 0831320057000

$3,97

Unit Price

SCREW

02112-0512A-000 021120512A000

$2,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-0105A-000 083210105A000

$2,97

Unit Price

DISCONTINUE
SOCKET & CORD ASSY

35718-41F00-000 3571841F00000

Not available

SCREW

03211-0516A-000 032110516A000

Not available

WASHER 6.5X20X1.6
WASHER (6.5X210X1.6)

09160-06088-000 0916006088000

$2,97

Unit Price

SPACER (6.5X9X23)

09180-06275-000 0918006275000

$6,97

Unit Price

GROMMET(10X35X9.5)
GROMMET

09308-10017-000 0930810017000

$6,97

Unit Price

CUSHION

09320-09046-000 0932009046000

$12,97

Unit Price

BOLT

01550-0635B-000 015500635B000

$4,97

Unit Price

STAY, LICENSE PLATE HOLDER

35928-41F00-000 3592841F00000

$140,97

Unit Price

CUSHION, LICENSE HOLDER STAY
CUSHION, HOLDER STAY

35929-41F00-000 3592941F00000

$40,97

Unit Price

WASHER
SPACER

09169-06077-000 0916906077000

$7,97

Unit Price

BOLT
BOLT, LICENSE STAY

01550-0630B-000 015500630B000

$4,97

Unit Price

WASHER
WASHER (6.5X18X1.6)

09160-06109-000 0916006109000

$3,97

Unit Price

NUT
NUT, LICENSE HOLDER

08313-10067-000 0831310067000

$2,97

Unit Price

PROTECTOR(20X90)X1.0
PROTECTOR, HOLDER

33652-26E00-000 3365226E00000

$5,97

Unit Price

63461-41F31
HOLDER

63461-41F30-000

Not available

MOLDING
MOLDING, LICENSE HOLDER

94635-19C00-000 9463519C00000

Not available

SCREW
SCREW, PLATE HOLDER

02142-0616B-000 021420616B000

$2,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

WASHER

09160-06079-000

09160-06052-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
