INDICATORS (MODEL K9 / L0)

TAIL LIGHT (MODEL K6 / K7 / K8) FOR SUZUKI VOLUSIA 800 2007

TAIL LIGHT (MODEL K9 / L0)

Item numbers

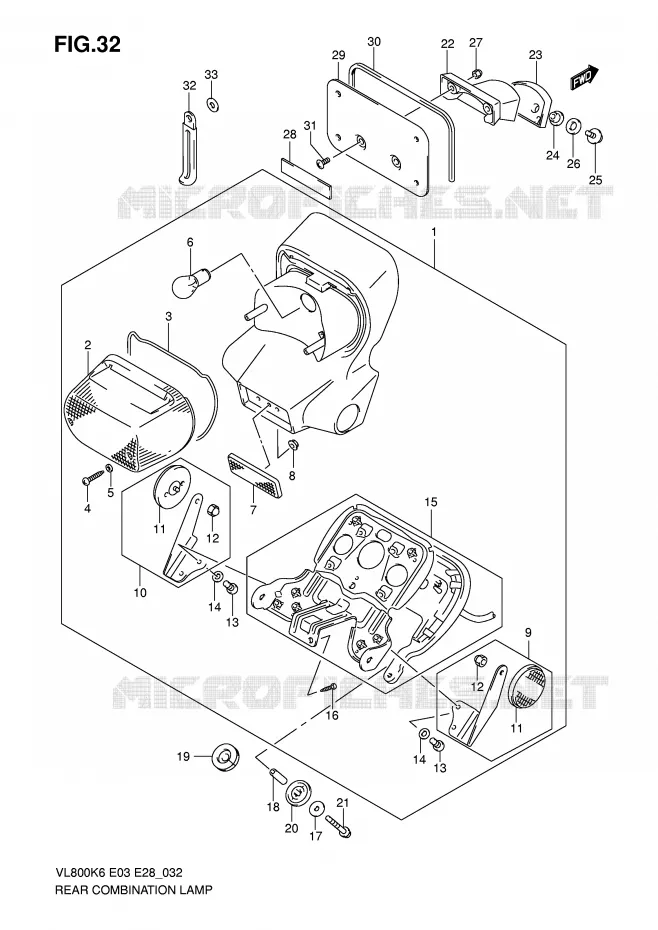

TAIL LIGHT (MODEL K6/K7/K8) Suzuki MOTO 800 VOLUSIA 2007 VL800TK7(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-41F61-000   3571041F61000

3571041F61000

Unit Price

2
LENS

35712-10F30-000  

3571210F30000
Not available
3
DISCONTINUE
GASKET

35613-80F00-000   3561380F00000

3561380F00000
Not available
4
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET<br />PACKING
GASKET
PACKING

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V21/5W)
BULB(12V1.4W G30)
BULB (12V21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
REFLECTOR ASSY,RR<br />REFLEX REFLECTOR ASSY
REFLECTOR ASSY, RR
REFLEX REFLECTOR ASSY

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

8
NUT
NUT

08316-2005A-000   083162005A000

083162005A000

Unit Price

9
DISCONTINUE
REFLEX REFLECTOR, RH

35078-41F30-000   3507841F30000

3507841F30000
Not available
10
DISCONTINUE
REFLEX REFLECTOR, LH

35079-41F30-000   3507941F30000

3507941F30000
Not available
11
REFLEX REFLECTOR, RR
REFLEX REFLECTOR

35970-14A10-000   3597014A10000

3597014A10000

Unit Price

12
NUT

08313-20057-000   0831320057000

0831320057000

Unit Price

13
SCREW

02112-0512A-000   021120512A000

021120512A000

Unit Price

14
WASHER, LOCK<br />LOCK WASHER
WASHER, LOCK
LOCK WASHER

08321-0105A-000   083210105A000

083210105A000

Unit Price

15
SOCKET & CORD ASSY

35718-41F00-000   3571841F00000

3571841F00000

Unit Price

16
SCREW

03211-0516A-000   032110516A000

032110516A000
Not available
17
WASHER 6.5X20X1.6<br />WASHER (6.5X210X1.6)
WASHER 6.5X20X1.6
WASHER (6.5X210X1.6)

09160-06088-000   0916006088000

0916006088000

Unit Price

18
SPACER (6.5X9X23)

09180-06275-000   0918006275000

0918006275000

Unit Price

19
GROMMET(10X35X9.5)
GROMMET

09308-10017-000   0930810017000

0930810017000

Unit Price

20
CUSHION

09320-09046-000   0932009046000

0932009046000

Unit Price

21
BOLT
BOLT

01550-0635B-000   015500635B000

015500635B000

Unit Price

22
STAY, LICENSE PLATE HOLDER

35928-41F00-000   3592841F00000

3592841F00000

Unit Price

23
CUSHION, LICENSE HOLDER STAY
CUSHION, HOLDER STAY

35929-41F00-000   3592941F00000

3592941F00000

Unit Price

24
WASHER
SPACER

09169-06077-000   0916906077000

0916906077000

Unit Price

25
BOLT
BOLT, LICENSE STAY

01550-0630B-000   015500630B000

015500630B000

Unit Price

26
WASHER<br />WASHER (6.5X18X1.6)
WASHER
WASHER (6.5X18X1.6)

09160-06109-000   0916006109000

0916006109000

Unit Price

27
NUT<br />NUT, LICENSE HOLDER
NUT
NUT, LICENSE HOLDER

08313-10067-000   0831310067000

0831310067000

Unit Price

28
PROTECTOR(20X90)X1.0<br />PROTECTOR, HOLDER
PROTECTOR(20X90)X1.0
PROTECTOR, HOLDER

33652-26E00-000   3365226E00000

3365226E00000

Unit Price

29
63461-41F31
HOLDER

63461-41F30-000  

6346141F30000
Not available
30
MOLDING
MOLDING, LICENSE HOLDER

94635-19C00-000   9463519C00000

9463519C00000
Not available
31
SCREW
SCREW, PLATE HOLDER

02142-0616B-000   021420616B000

021420616B000

Unit Price

32
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

33
WASHER

09160-06079-000  

09160-06052-000
 0916006079000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
