Displacement

Model

Year

Finish line

Parts catalogue

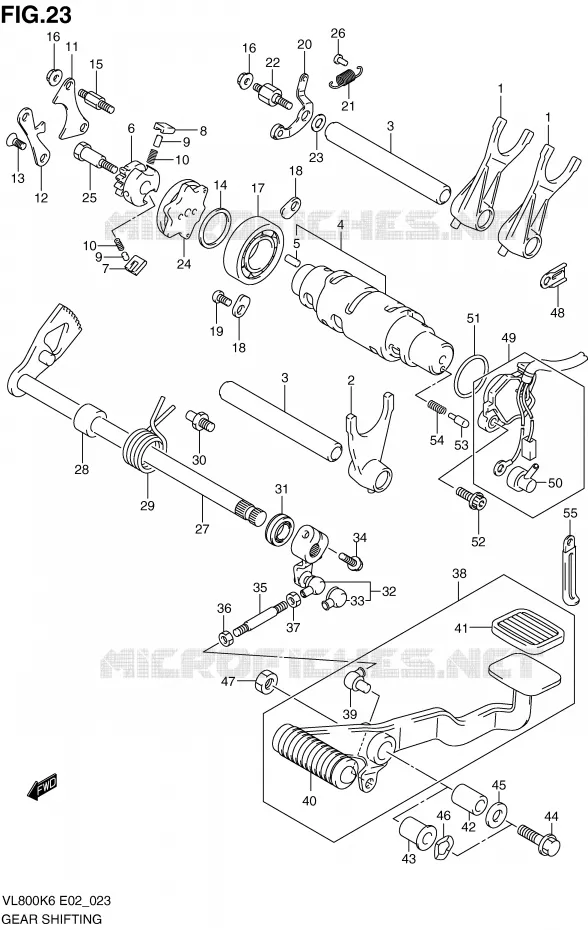

Parts diagram

DRIVESHAFT

GEAR SHIFTING ASSY FOR SUZUKI VOLUSIA 800 2010

DRIVESHAFT (SEE NOTE) NOTE : VL800K6/K7/K8/K9/L0/UK6/UEK7/UEK8/UEK9/UEL0

Item numbers

FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

25211-38A02-000 2521138A02000

$132,97

Unit Price

FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

25211-38A10-000 2521138A10000

$68,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-38A01-000 2522138A01000

$100,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-38A10-000 2522138A10000

$68,97

Unit Price

SHAFT, GEAR SHIFT FORK(L:115)
SHAFT, GEAR SHIFTING FORK

25411-38A00-000 2541138A00000

$25,97

Unit Price

CAM, GEAR SHIFT
CAM, GEAR SHIFTING

25310-41F00-000 2531041F00000

$190,97

Unit Price

04221-04089-000 0422104089000

$2,97

Unit Price

GEAR, GEAR SHIFT CAM DRIVEN
GEAR, CAM DRIVEN

25322-31310-000 2532231310000

$24,97

Unit Price

PAWL, GEAR SHIFT NO.1
PAWL, NO.1

25323-34201-000 2532334201000

$11,97

Unit Price

PAWL, GEAR SHIFT NO.2
PAWL, NO.2

25324-34201-000 2532434201000

$11,97

Unit Price

SHIFTING PAUL ROLLER
PIN

09261-05003-000 0926105003000

$2,97

Unit Price

K S PAWL SPRING
SPRING

09440-04003-000 0944004003000

$2,97

Unit Price

LIFTER, GEAR SHIFT POLE
LIFTER, PAWL

25331-38A00-000 2533138A00000

$7,97

Unit Price

GUIDE, GEAR SHIFT CAM
GUIDE, CAM

25341-38A00-000 2534138A00000

$10,97

Unit Price

SCREW
SCREW (6X12)

09126-06011-000 0912606011000

$3,97

Unit Price

WASHER (25X32X3)

09160-25059-000 0916025059000

$8,97

Unit Price

BOSS, SHIFT POLE LIFTER
BOSS, SHIFT PAWL LIFTER

25332-38A10-000 2533238A10000

$5,97

Unit Price

NUT

08316-1006A-000 083161006A000

$3,97

Unit Price

BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000 0926225006000

$37,97

Unit Price

RETAINER
RETAINER, BEARING

24741-21A00-000 2474121A00000

$4,97

Unit Price

BOLT, 6X12
SCREW (6X12)

09125-06110-000 0912506110000

$4,97

Unit Price

STOPPER, GEAR SHIFT CAM
STOPPER, CAM

25350-38A00-000 2535038A00000

$15,97

Unit Price

SPRING

09443-09027-000 0944309027000

$5,97

Unit Price

SUPPORT, CAM STOPPER ARM
SUPPORT, CAM STOPPER

25355-38A10-000 2535538A10000

$9,97

Unit Price

THRUST WASHER
WASHER

08211-06141-000 0821106141000

$3,97

Unit Price

PLATE, GEAR SHIFT CAM

25380-38A02-000

25380-38B00-000

$25,97

Unit Price

PIN, SHIFT CAM DRIVEN GEAR
PIN, SHIFT CAM

25312-38A00-000 2531238A00000

$9,97

Unit Price

RIVET
HOOK

09223-04004-000 0922304004000

$3,97

Unit Price

SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING

25510-38A00-000 2551038A00000

$80,97

Unit Price

SPACER (12X20X15.3)

09180-12068-000 0918012068000

$4,97

Unit Price

SHAFT RETURN SPRING
SPRING

09444-26013-000 0944426013000

$5,97

Unit Price

STOPPER, GEAR SHIFT ARM
STOPPER, ARM

25671-01011-000 2567101011000

$6,97

Unit Price

09285-12006
OIL SEAL (12X22X9)

09285-12002-000

Not available

ARM, GEAR SHIFT LINK

25520-38B00-000

25520-38B01-000

$62,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$7,97

Unit Price

BOLT
BOLT, GEAR ARM

01547-0620A-000 015470620A000

$3,97

Unit Price

ROD, GEAR SHIFT LINK

25525-41F00-000 2552541F00000

$8,97

Unit Price

ROD, GEAR SHIFT LINK

25525-47020-000 2552547020000

$16,97

Unit Price

GR SHFT LINK ROD NUT
NUT, GEAR SHIFT

09140-06011-000 0914006011000

$2,97

Unit Price

NUT

08310-00067-000 0831000067000

$3,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-41F10-000

25600-41F11-000

$319,97

Unit Price

LEVER ASSY, GEAR SHIFT

25600-41F20-000

25600-41F21-000

$179,97

Unit Price

COVER, DUST

25526-47000-000

25526-47001-000

$7,97

Unit Price

RUBBER
RUBBER, GEAR, FR

25652-10F00-000 2565210F00000

$9,97

Unit Price

RUBBER
RUBBER, GEAR, RR

43151-01400-000 4315101400000

$7,97

Unit Price

SPSCER, GEAR SHIFT LEVER
SPACER, GEAR SHIFT

25617-10F00-000 2561710F00000

$20,97

Unit Price

SPACER, GEAR SHIFT LEVER

25617-41F00-000 2561741F00000

$19,97

Unit Price

BOLT
BOLT, GEAR SHIFT (10X40)

09103-10300-000 0910310300000

$10,97

Unit Price

WASHER
WASHER (14.2X22X1)

09160-10093-000 0916010093000

$3,97

Unit Price

WASHER

09164-18009-000 0916418009000

$3,97

Unit Price

NUT
NUT, GEAR SHIFT

08310-0010B-000 083100010B000

$3,97

Unit Price

CLAMP, GENERATOR LEAD WIRE
CLAMP, OIL PRESS LEAD

31497-45000-000 3149745000000

$2,97

Unit Price

BASE ASSY, GEAR SHIFT TERMINAL

37730-41F01-000

37730-41F02-000

$135,97

Unit Price

CAP, OIL PRESSURE SWITCH
CAP, OIL PRESSURE

36618-43410-000 3661843410000

$4,97

Unit Price

O RING
O RING (D:2.4, ID:25.7)

09280-26005-000 0928026005000

Not available

BOLT

07120-0516A-000

07120-0516B-000

$4,97

Unit Price

K S PAWL ROLLER
CONTACT, SWITCH

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
