FRAME (VL800TL2 E28)

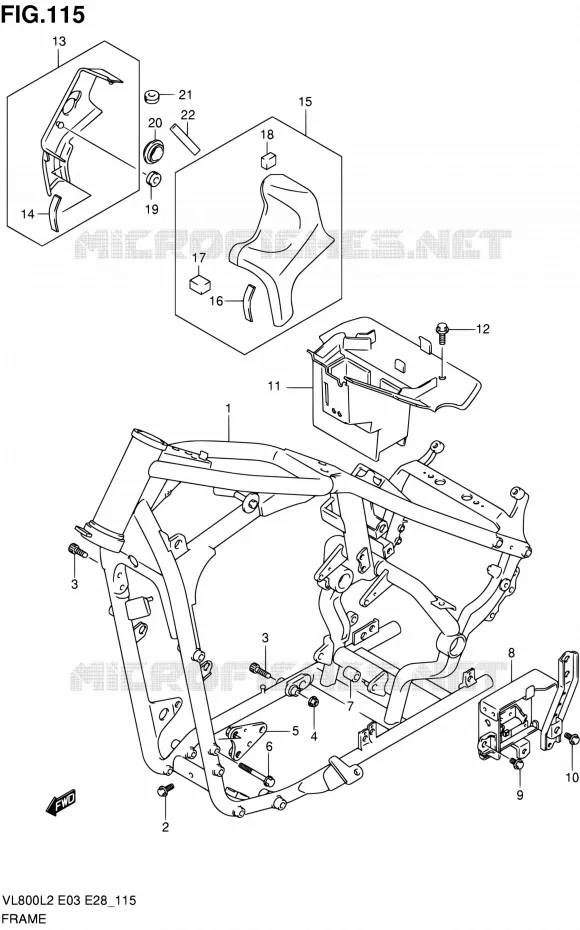

FRAME (VL800TL2 E33) FOR SUZUKI VOLUSIA 800 2012

FRAME BRACE

Item numbers

FRAME(BLACK)

41100-41F60-019

41100-41F80-019

$3 742,97

Unit Price

BOLT

01550-0816B-000 015500816B000

$4,97

Unit Price

BOLT

07130-1035B-000 071301035B000

$7,97

Unit Price

NUT

08319-3110B-000 083193110B000

$4,97

Unit Price

PLATE, ENGINE MOUNT NO.1, L
PLATE, ENGINE MOUNT LH

41920-41F00-000 4192041F00000

$21,97

Unit Price

BOLT (8X65)

09112-08013-000 0911208013000

$6,97

Unit Price

SPACER, ENG MTG LR
SPACER, LOWER

41941-41F00-000 4194141F00000

$12,97

Unit Price

HOLDER, ELECTRIC PARTS

41540-41F30-000 4154041F30000

$81,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

BOLT

01550-0816A-000 015500816A000

$3,97

Unit Price

HOLDER, ELECTRIC PARTS

47410-41F02-000 4741041F02000

$71,97

Unit Price

BOLT (6X16)

09113-06001-000 0911306001000

$4,97

Unit Price

47350-41F30-019
COVER, FRAME HEAD RH (BLACK)

47350-41F10-019 4735041F10019

Not available

53145-40A01
.CUSHION

53145-40A00-000 5314540A00000

Not available

47360-41F40-019
COVER, FRAME HEAD LH (BLACK)

47360-41F12-019 4736041F12019

Not available

53145-40A01
.CUSHION

53145-40A00-000 5314540A00000

Not available

CUSHION, FR FENDER SIDE
.CUSHION, LH LOWER

53146-05G00-000 5314605G00000

$5,97

Unit Price

CUSHION(20X30X8)
.CUSHION, FRONT

94422-06G00-000 9442206G00000

$7,97

Unit Price

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$4,97

Unit Price

CAP
CAP, HEAD COVER RH

47355-41F01-000 4735541F01000

$9,97

Unit Price

CUSHION

09320-09501-000 0932009501000

$3,97

Unit Price

CUSHION, RADIATOR COVER INNER
CUSHION, FRAME HEAD COVER LOW

17798-39G00-000 1779839G00000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
