FRAME (MODEL R / T)

FOOTREST FOR SUZUKI VX 800 1991

STAND

Item numbers

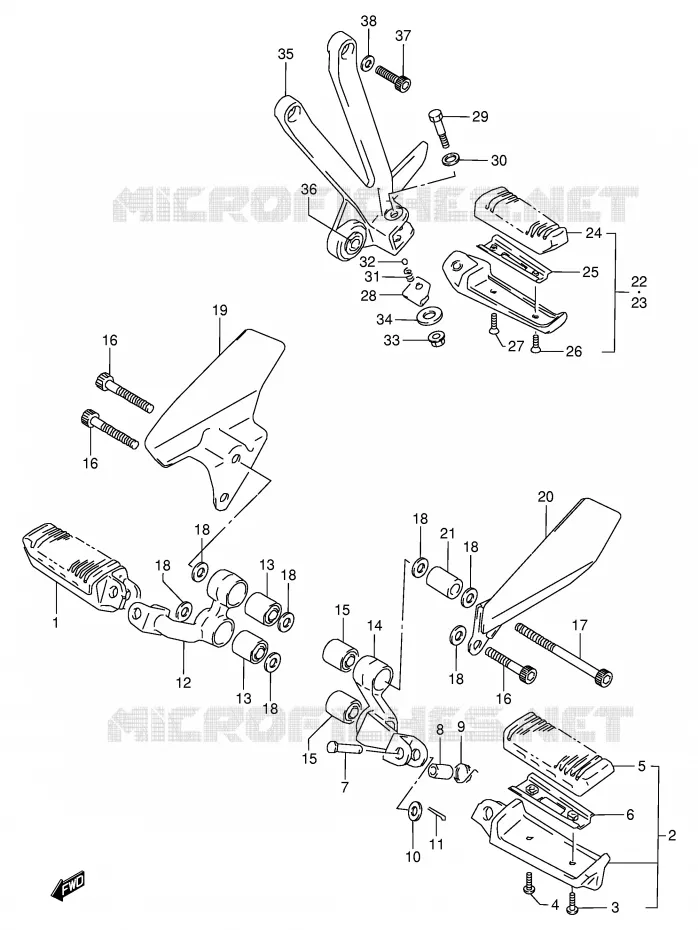

FOOTREST Suzuki MOTO 800 VX 1991 VX800M(E4)
1
2
3
3
4
4
5
5
6
7
8
9
10
10
11
12
13
13
14
15
15
16
16
16
17
18
18
18
18
18
18
18
19
19
20
20
21
22
23
24
25
26
26
27
27
28
28
29
30
31
32
33
34
35
35
36
37
38
1
DISCONTINUE
FOOTREST ASSY, FRONT RH

43501-45C00-000   4350145C00000

4350145C00000
Not available
2
DISCONTINUE
FOOTREST ASSY, FRONT LH

43502-45C00-000   4350245C00000

4350245C00000
Not available
3
SCREW

02112-05123-000  

02112-0512A-000
 0211205123000

Unit Price

3
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

4
SCREW

02112-05163-000  

02112-0516B-000
 0211205163000

Unit Price

4
SCREW
SCREW

02112-05167-000   0211205167000

0211205167000

Unit Price

5
RUBBER, FOOTREST
RUBBER, FRONT FOOTREST

43550-31300-000   4355031300000

4355031300000

Unit Price

6
DISCONTINUE<br />PLATE, FRONT FOOTREST RUBBER
DISCONTINUE
PLATE, FRONT FOOTREST RUBBER

43580-33301-000   4358033301000

4358033301000
Not available
7
PIN
PIN

09200-08057-000   0920008057000

0920008057000

Unit Price

8
SPACER, 8.1X12.22<br />SPACER
SPACER, 8.1X12.22
SPACER

09180-08149-000   0918008149000

0918008149000

Unit Price

9
SPRING
SPRING

09448-18022-000   0944818022000

0944818022000

Unit Price

10
08322-0108A
WASHER

08322-01083-000  

0832201083000
Not available
11
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

12
DISCONTINUE
HOLDER, FOOTREST RH

43530-45C00-000   4353045C00000

4353045C00000
Not available
13
BUSH

09319-10047-000   0931910047000

0931910047000

Unit Price

14
DISCONTINUE
HOLDER, FOOTREST LH

43540-45C00-000   4354045C00000

4354045C00000
Not available
15
BUSH

09319-10047-000   0931910047000

0931910047000

Unit Price

16
BOLT

07130-10457-000  

0713010457000
Not available
17
BOLT, LH

07130-10707-000   0713010707000

0713010707000
Not available
18
WASHER
WASHER

09160-10039-000   0916010039000

0916010039000

Unit Price

19
DISCONTINUE

43560-45C00-000  

4356045C00000
Not available
20
DISCONTINUE

43570-45C01-000  

4357045C01000
Not available
21
DISCONTINUE
SPACER, LH

43597-45C01-000   4359745C01000

4359745C01000
Not available
22
DISCONTINUE
FOOTREST ASSY, PILLION RH

43600-45C00-000   4360045C00000

4360045C00000
Not available
23
DISCONTINUE
FOOTREST ASSY, PILLION LH

43700-45C00-000   4370045C00000

4370045C00000
Not available
24
RUBBER, RR FOOTREST
RUBBER, PILLION FOOTREST

43612-31300-000   4361231300000

4361231300000

Unit Price

25
PLATE,RUBBER STOPPER<br />PLATE, RUBBER STOP
PLATE, RUBBER STOPPER
PLATE, RUBBER STOP

43632-45501-000   4363245501000

4363245501000

Unit Price

26
SCREW

02122-05123-000  

02122-05127-000
 0212205123000

Unit Price

27
SCREW

02122-05163-000  

02122-0516B-000
 0212205163000

Unit Price

27
SCREW
SCREW

02122-05167-000   0212205167000

0212205167000

Unit Price

28
DISCONTINUE
PLATE, SPRING STOP RH

43635-45C00-000   4363545C00000

4363545C00000
Not available
28
DISCONTINUE
PLATE, SPRING STOP LH

43735-45C00-000   4373545C00000

4373545C00000
Not available
29
BOLT

09111-06048-000   0911106048000

0911106048000
Not available
30
DISCONTINUE<br />SHIM
DISCONTINUE
SHIM

09181-08004-000   0918108004000

0918108004000
Not available
31
SPRING

09440-05028-000   0944005028000

0944005028000
Not available
32
STEEL BALL
STEEL BALL

06111-08003-000   0611108003000

0611108003000

Unit Price

33
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price

34
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

35
DISCONTINUE
BRACKET, PILLION RH

43801-45C00-000   4380145C00000

4380145C00000
Not available
35
BRACKET, PILLION LH

43802-45C00-000   4380245C00000

4380245C00000
Not available
36
BUSH

09319-10033-000   0931910033000

0931910033000

Unit Price

37
BOLT
BOLT

07130-08257-000   0713008257000

0713008257000

Unit Price

38
WASHER HANDLEBAR<br />WASHER
WASHER HANDLEBAR
WASHER

09164-08015-000   0916408015000

0916408015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST of your Suzuki of VX. Let us know if you have any questions.

Genuine parts for Suzuki 800 VX 1991
