STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI VX 800 1992

TIMING

DISCONTINUE
CAMSHAFT, FRONT

12711-45C00-000 1271145C00000

Not available

DISCONTINUE
CAMSHAFT, REAR

12713-38A03-000 1271338A03000

Not available

SPROCKET, CAMSHAFT(NT:42)
SPROCKET, CAMSHAFT

12741-37400-000 1274137400000

$52,97

Unit Price

WASHER, SPROCKET

12747-44000-000

12747-44001-000

$3,97

Unit Price

04221-05109-000 0422105109000

$2,97

Unit Price

BOLT(6X12.5)
BOLT

09111-06027-000 0911106027000

$2,97

Unit Price

ARM, INTAKE VALVE ROCKER FR
ARM, VALVE ROCKER FRONT IN

12840-38A01-000 1284038A01000

$104,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000 1284238A00000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

ARM, EXHAUST VALVE ROCKER FR
ARM, VALVE ROCKER FRONT EX

12850-38A01-000 1285038A01000

$97,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000 1284238A00000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

ARM, INTAKE VALVE ROCKER RR
ARM, VALVE ROCKER REAR IN

12845-38A01-000 1284538A01000

$97,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000 1284238A00000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

ARM, EXHAUST VALVE ROCKER RR
ARM, VALVE ROCKER REAR EX

12855-38A01-000 1285538A01000

$104,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW

12842-38A00-000 1284238A00000

$7,97

Unit Price

NUT, ADJUSTING SCREW
NUT

12843-32400-000 1284332400000

$4,97

Unit Price

DISCONTINUE

12861-38A00-000

Not available

DISCONTINUE

12871-38A00-000

Not available

WASHER, V LKR ARM SFT
WASHER

09164-12018-000 0916412018000

$2,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

VALVE, INTAKE

12911-38A02-000

12911-38A10-000

$59,97

Unit Price

VALVE, EXHAUST

12912-38A02-000

12912-38A10-000

$94,97

Unit Price

COTTER, VALVE

12932-24400-000 1293224400000

$2,97

Unit Price

RETAINER, VALVE SPRING

12931-33200-000

12931-33201-000

$10,97

Unit Price

SPRING SET, VALVE

12920-38A00-000 1292038A00000

$20,97

Unit Price

SEAT, VALVE SPRING

12933-33200-000

12933-33201-000

$8,97

Unit Price

SEAL, OIL(5.5X11X8.2)

09289-05003-000

09289-05015-000

$8,97

Unit Price

CAP(OD:12)
CAP

09250-08012-000 0925008012000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

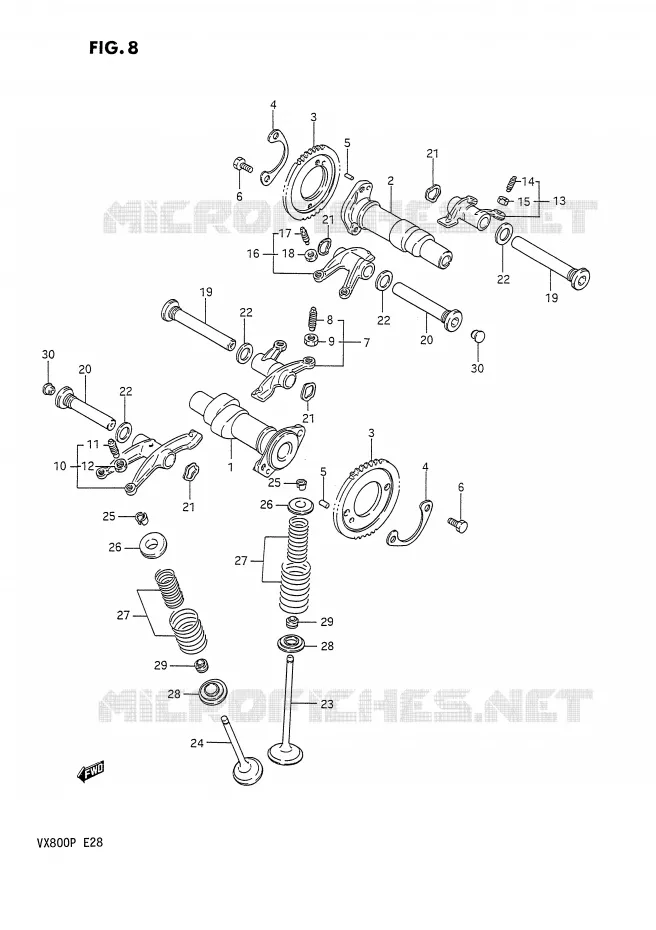

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of VX. Let us know if you have any questions.
