HEADLIGHT (MODEL P / R E2,E24) REFER TO FIG.29B(E- 9) FOR MODEL P/R EXCEPT E2,E24

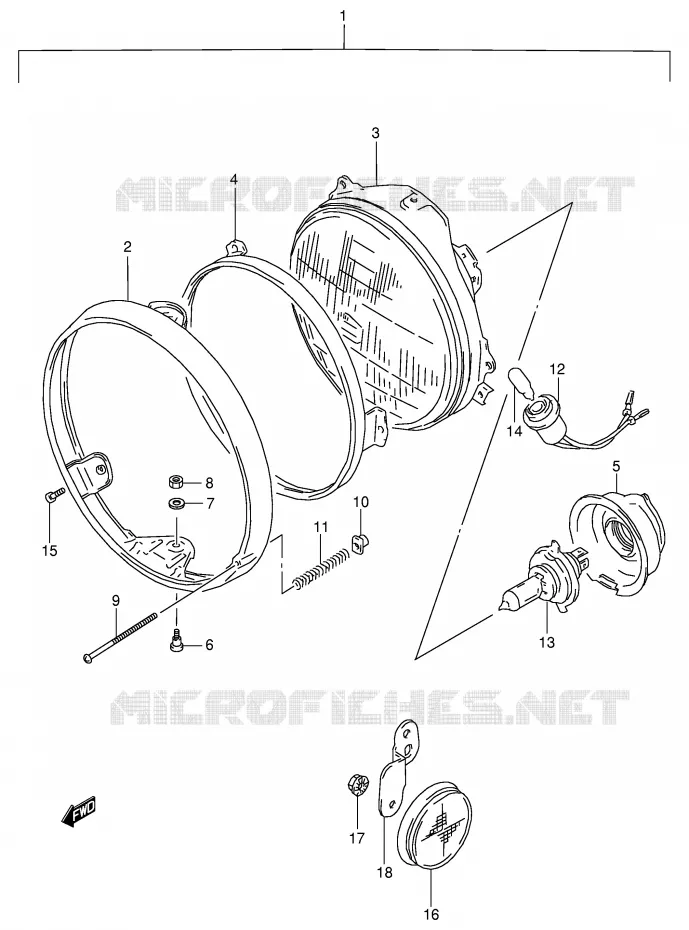

HEADLIGHT (MODEL P / R EXCEPT E2,E24) FOR SUZUKI VX 800 1992

HEADLIGHT (MODEL T)

Item numbers

HEADLAMP ASSY

35100-10D40-999 3510010D40999

Not available

HEADLAMP ASSY

35100-10D51-999 3510010D51999

Not available

RIM

35111-01D20-000 3511101D20000

$125,97

Unit Price

LAMP UNIT

35121-10D40-000 3512110D40000

Not available

RING

35127-10D20-000 3512710D20000

$39,97

Unit Price

COVER, SOCKET

35173-20A01-000 3517320A01000

$26,97

Unit Price

SCREW, HEADLAMP RING
SCREW

35181-15611-000 3518115611000

$5,97

Unit Price

WASHER, LOCK

08321-01057-000

08321-0105A-000

$2,97

Unit Price

NUT

08310-00057-000 0831000057000

$2,97

Unit Price

SCREW

35151-45900-000 3515145900000

$7,97

Unit Price

NUT

35152-15611-000 3515215611000

$5,97

Unit Price

SPRING, ADJUSTING
SPRING

35154-31900-000 3515431900000

$9,97

Unit Price

DISCONTINUE
SOCKET

36118-04A00-000 3611804A00000

Not available

BULB(12V, 5W)
BULB (12V60/55W)

09471-12060-000

Not available

09471-12144
BULB (12V60/55W)

09471-12061-000

Not available

BULB (12V, 4W)

09471-12063-000

Not available

SCREW

02122-05127-000 0212205127000

$2,97

Unit Price

REFLECTOR, REFLEX FR
REFLEX REFLECTOR, FRONT SIDE

35950-14A00-000 3595014A00000

$26,97

Unit Price

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

08310-0005A

08310-00053-000

Not available

DISCONTINUE
BRACKET, FRONT SIDE RH

35956-45C01-000 3595645C01000

Not available

DISCONTINUE
BRACKET, FRONT SIDE LH

35957-45C01-000 3595745C01000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL P/R EXCEPT E2,E24) of your Suzuki of VX. Let us know if you have any questions.
