Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI VX 800 1993

CLUTCH

Item numbers

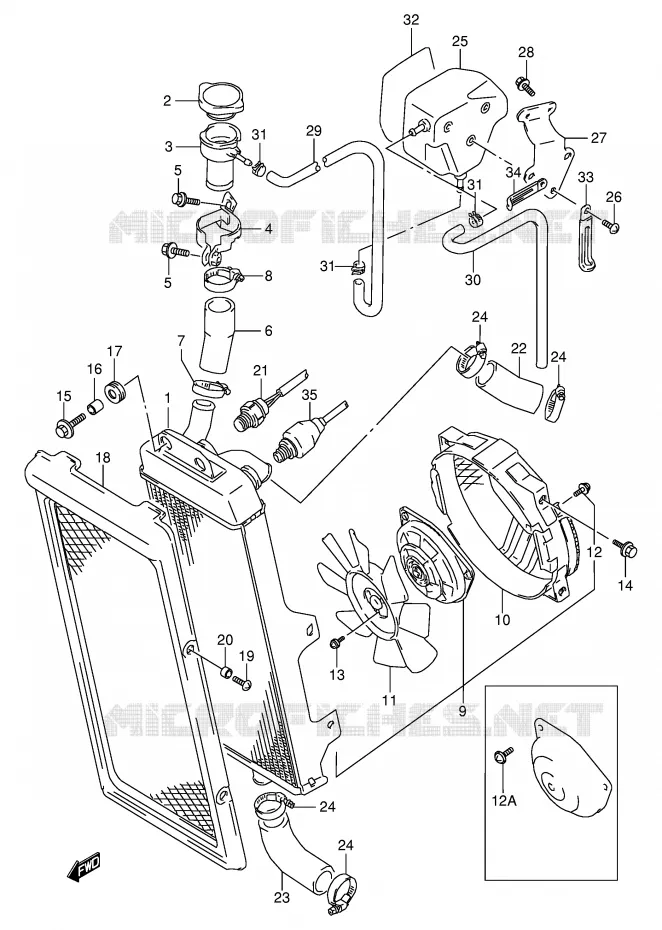

RADIATOR Suzuki MOTO 800 VX 1993 VX800UP(E4)
1
1
2
3
4
5
5
5
5
6
7
7
8
8
9
10
11
12A
12
13
14
14
15
16
17
18
19
19
19
19
20
21
22
23
24
24
24
24
24
24
24
24
25
25
26
27
28
28
28
29
30
30
31
31
31
31
31
31
31
31
31
32
33
33
34
34
35
35
1
RADIATOR

17710-45C00-000   1771045C00000

1771045C00000
Not available
1
RADIATOR

17710-45C10-000   1771045C10000

1771045C10000
Not available
2
CAP, RADIATOR

17730-12C01-000  

17730-08J00-000
 1773012C01000

Unit Price

3
DISCONTINUE
CONDUCTION, RADIATOR

17791-45C00-000   1779145C00000

1779145C00000
Not available
4
BRACKET, CONDUCTION

17793-45C00-000   1779345C00000

1779345C00000
Not available
5
01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000  

0151706164000
Not available
6
DISCONTINUE
HOSE, CONDUCTION

17859-45C00-000   1785945C00000

1785945C00000
Not available
7
CLAMP

09402-30502-000  

09402-32511-000
 0940230502000

Unit Price

8
CLAMP
CLAMP

09402-38511-000   0940238511000

0940238511000

Unit Price

8
CLAMP
CLAMP

09402-32502-000   0940232502000

0940232502000
Not available
9
DISCONTINUE
FAN ASSY

17800-45C01-000   1780045C01000

1780045C01000
Not available
10
DISCONTINUE
SHROUD

17760-45C01-000   1776045C01000

1776045C01000
Not available
11
DISCONTINUE
FAN

17820-45C00-000   1782045C00000

1782045C00000
Not available
12
SCREW

02112-75103-000   0211275103000

0211275103000
Not available
12A
.SCREW

02112-15083-000   0211215083000

0211215083000
Not available
13
SCREW

02112-04063-000  

02112-0406B-000
 0211204063000

Unit Price

14
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

14
BOLT

01550-06107-000  

01550-06123-000
 0155006107000

Unit Price

15
BOLT (6X25)
BOLT (6X25)

09116-06131-000   0911606131000

0911606131000

Unit Price

16
SPACER

09180-06030-000  

09180-06310-000
 0918006030000

Unit Price

17
CUSHION
CUSHION

09320-10015-000   0932010015000

0932010015000

Unit Price

18
COVER, RADIATOR

17761-45C00-000   1776145C00000

1776145C00000
Not available
19
SCREW

02142-06103-000  

02142-0610B-000
 0214206103000

Unit Price

19
SCREW
SCREW

02142-06107-000   0214206107000

0214206107000

Unit Price

19
SCREW
SCREW (6X10)

09139-06055-000   0913906055000

0913906055000

Unit Price

19
SCREW<br />SCREW (6X10)
SCREW
SCREW (6X10)

09139-06078-000   0913906078000

0913906078000

Unit Price

20
SPACER (6.4X9X3.5)

09180-06102-000   0918006102000

0918006102000
Not available
21
DISCONTINUE
SWITCH, RADIATOR FAN

17680-45C00-000   1768045C00000

1768045C00000
Not available
22
DISCONTINUE
HOSE, RADIATOR IN

17851-45C00-000   1785145C00000

1785145C00000
Not available
23
DISCONTINUE
HOSE, RADIATOR OUT

17852-45C00-000   1785245C00000

1785245C00000
Not available
24
CLAMP

09402-30502-000  

09402-32511-000
 0940230502000

Unit Price

25
TANK, RESERVOIR

17911-45C10-000   1791145C10000

1791145C10000

Unit Price

25
TANK, RESERVOIR

17911-45C00-000   1791145C00000

1791145C00000
Not available
26
SCREW

02142-06083-000  

02142-0608A-000
 0214206083000

Unit Price

27
DISCONTINUE
BRACKET, RESERVOIR TANK

17920-45C00-000   1792045C00000

1792045C00000
Not available
28
BOLT

01517-06204-000  

01550-0620B-000
 0151706204000

Unit Price

28
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
29
HOSE, RESERVOIR TANK INLET
HOSE, TANK IN

17981-45C00-000   1798145C00000

1798145C00000

Unit Price

30
HOSE, 5 X 9 X 2000

17981-21E00-000  

09352-50901-00B
 1798121E00000

Unit Price

31
CLIP

09401-08405-000  

0940108405000
Not available
31
CLIP

09401-08407-000  

0940108407000
Not available
32
DISCONTINUE
EMBLEM, RESERVIOR TANK

17930-45C00-000   1793045C00000

1793045C00000
Not available
33
CLAMP(L:80)

09404-06415-000  

09404-06426-000
 0940406415000

Unit Price

33
CLAMP(L:65)

09404-06431-000  

09404-06207-000
 0940406431000

Unit Price

34
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

35
SWITCH ASSY, WATER TEMP
SWITCH, WATER TEMPARATURE

34850-03D00-000   3485003D00000

3485003D00000

Unit Price

35
SWITCH ASSY, WATER TEMP
SWITCH, WATER TEMPARATURE

34850-10D00-000   3485010D00000

3485010D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki of VX. Let us know if you have any questions.

Genuine parts for Suzuki 800 VX 1993

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 800 VX 1993

Select your Suzuki 1993 model

800 VX 1993 VX800UP(E4)

Suzuki VX

Displacement: 800 cc
Year: 1993
Model code VX800UP(E4)
