SWINGARM

REAR WHEEL FOR SUZUKI QUADSPORT 90 2010

OPTIONS

Item numbers

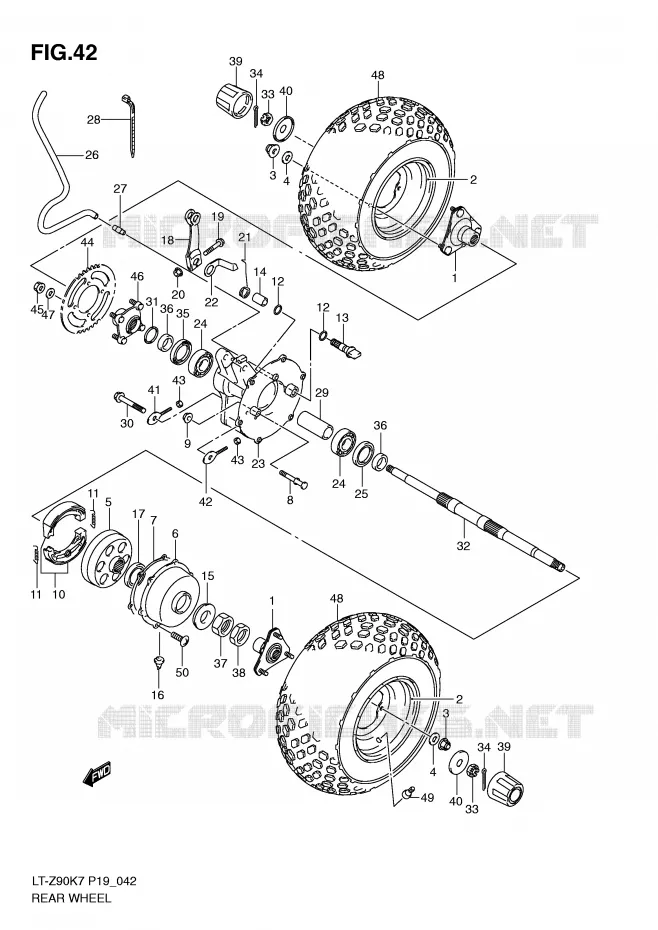

REAR WHEEL Suzuki QUAD 90 QUADSPORT 2010 LT-Z90L0(P19)
1
1
2
2
3
3
4
4
5
6
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
34
35
36
36
37
38
39
39
40
40
41
42
43
43
44
45
46
47
48
48
49
50
1
HUB, RR
HUB, REAR WHEEL

64110-40B50-000   6411040B50000

6411040B50000

Unit Price

2
RIM, FR WHEEL
RIM, REAR WHEEL (8X5.5AT) (SILVER)

55310-40B00-13L   5531040B0013L

5531040B0013L

Unit Price

3
NUT
NUT

08316-1010B-000   083161010B000

083161010B000

Unit Price

4
WASHER,10X20X2.3<br />WASHER
WASHER, 10X20X2.3
WASHER

09160-10142-000   0916010142000

0916010142000

Unit Price

5
DRUM, RR BRAKE
DRUM, REAR BRAKE

64120-40B10-000   6412040B10000

6412040B10000

Unit Price

6
COVER, RR BRAKE DRUM
COVER, REAR BRAKE

64130-40B10-000   6413040B10000

6413040B10000

Unit Price

7
PACKING, RR BRAKE DRUM COVER
PACKING, REAR BRAKE DRUM COVER

64125-40B00-000   6412540B00000

6412540B00000

Unit Price

8
PIN, RR BRAKE ANCHOR
PIN, REAR BRAKE ANCHOR

64231-40B00-000   6423140B00000

6423140B00000

Unit Price

9
NUT<br />NUT, REAR BRAKE ANCHOR PIN
NUT
NUT, REAR BRAKE ANCHOR PIN

08316-1008B-000   083161008B000

083161008B000

Unit Price

10
SHOE SET, BRAKE

64400-40860-000   6440040860000

6440040860000

Unit Price

10
SHOE SET, BRAKE

64400-08810-000   6440008810000

6440008810000
Not available
11
SPRING, BRAKE SHOE
SPRING

64430-14600-000   6443014600000

6443014600000

Unit Price

12
O RING
O RING (D:1.9, ID:13.8)

09280-14004-000   0928014004000

0928014004000

Unit Price

13
CAM, RR BRAKE
CAM, BRAKE

64441-40B00-000   6444140B00000

6444140B00000

Unit Price

14
SPACER, RR BRAKE CAM LEVER
SPACER, BRAKE CAM LEVER

64454-40B00-000   6445440B00000

6445440B00000

Unit Price

15
SEAL, DUST

64729-08H00-000  

64729-08H01-000
 6472908H00000

Unit Price

16
CAP
PLUG, DRAIN

09250-11002-000   0925011002000

0925011002000

Unit Price

17
SEAL, OIL 42X55X9
SEAL, BRAKE DRUM INNER

09282-42001-000   0928242001000

0928242001000

Unit Price

18
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-08H00-000   6445108H00000

6445108H00000

Unit Price

19
BOLT
BOLT

01550-0630A-000   015500630A000

015500630A000

Unit Price

20
NUT
NUT

08316-1006B-000   083161006B000

083161006B000

Unit Price

21
SPRING, BRAKE CAM LEVER RETURN
SPRING, BRAKE CAM LEVER

64444-40B00-000   6444440B00000

6444440B00000

Unit Price

22
PLATE, BK LINING INDICATOR
PLATE

64492-08H00-000   6449208H00000

6449208H00000

Unit Price

23
HOUSING, RR AXLE BEARING
HOUSING, AXLE BEARING

64721-08H00-000   6472108H00000

6472108H00000

Unit Price

24
BEARING, 32X65X17

09262-32007-000  

09262-32024-000
 0926232007000

Unit Price

25
OIL SEAL 42X65X7
DUST, L

09283-42015-000   0928342015000

0928342015000

Unit Price

26
HOSE,5X8.2X2000
HOSE, 5X8.2X2000

09352-50823-00B  

09352-50005-00B
 093525082300B

Unit Price

27
JOINT, BREATHER HOSE

09364-06004-000   0936406004000

0936406004000
Not available
28
BAND,WIRING HARNESS<br />CLAMP, BRAKE BREATHR HOSE
BAND, WIRING HARNESS
CLAMP, BRAKE BREATHR HOSE

09407-14403-000   0940714403000

0940714403000

Unit Price

29
SPACER, RR AXLE BEARING
SPACER, AXLE BEARING

64731-08H00-000   6473108H00000

6473108H00000

Unit Price

30
BOLT(14X105)
BOLT, AXLE BEARING HOUSING (14X105)

09103-14033-000   0910314033000

0910314033000

Unit Price

31
OIL SEAL 42X54X9.2
SEAL, DUST, R OUTER

09286-42001-000   0928642001000

0928642001000

Unit Price

32
AXLE, RR
AXLE, REAR

64711-08H00-000   6471108H00000

6471108H00000

Unit Price

33
NUT

09141-16004-000   0914116004000

0914116004000

Unit Price

34
PIN
COTTER PIN

04111-4035A-000   041114035A000

041114035A000

Unit Price

35
OIL SEAL 42X65X8.5
SEAL, DUST, R INNER

09283-42016-000   0928342016000

0928342016000

Unit Price

36
SPACER, RR AXLE OUTER
SPACER AXLE OUTER

64741-08H00-000   6474108H00000

6474108H00000

Unit Price

37
NUT, RR AXLE
NUT, REAR AXLE

64871-08H00-000   6487108H00000

6487108H00000

Unit Price

38
NUT
NUT, REAR AXLE ROCK

64872-08H00-000   6487208H00000

6487208H00000

Unit Price

39
CAP, WHEEL CTR
CAP, WHEEL CENTER

54725-18A00-000   5472518A00000

5472518A00000

Unit Price

40
HOLDER, CTR CAP
HOLDER, CAP

64726-08H00-000   6472608H00000

6472608H00000

Unit Price

41
ADJUSTER, CHAIN, R

61411-08H00-000   6141108H00000

6141108H00000

Unit Price

42
ADJUSTER, CHAIN, L

61421-08H00-000   6142108H00000

6142108H00000

Unit Price

43
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

44
SPROCKET, RR(24T-520)
SPROCKET, REAR (NT:24)

64511-08H00-000   6451108H00000

6451108H00000

Unit Price

45
NUT<br />NUT, REAR SPROCKET
NUT
NUT, REAR SPROCKET

08319-3108A-000   083193108A000

083193108A000

Unit Price

46
FLANGE, SPROCKET MOUNTING
FLANGE, REAR SPROCKET MOUNTING

64610-08H00-000   6461008H00000

6461008H00000

Unit Price

47
WASHER
WASHER

08322-0108B-000   083220108B000

083220108B000

Unit Price

48
TIRE, RR

65100-40B51-000  

65100-40B60-000
 6510040B51000

Unit Price

49
VALVE ASSY,WHEEL RIM(TR412)<br />VALVE ASSY, WHEEL RIM
VALVE ASSY, WHEEL RIM(TR412)
VALVE ASSY, WHEEL RIM

43130-24A00-000   4313024A00000

4313024A00000

Unit Price

50
SCREW
BOLT, RR BRAKE DRUM COVER

02142-0608B-000   021420608B000

021420608B000

Unit Price
