TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI QUADSPORT 90 2014

FUEL COCK

Item numbers

SHAFT, DRIVE
SHAFT, DRIVE (NT:17)

24131-08H00-000 2413108H00000

$113,97

Unit Price

SHAFT, IDLE (NT:15/45)

24150-33G00-000 2415033G00000

$115,97

Unit Price

WASHER, THRUST
SHIM (12X20X1.0)

09181-12167-000 0918112167000

$3,97

Unit Price

OIL SEAL

09283-20052-000

09283-20073-000

$15,97

Unit Price

BEARING (15X35X11)

09262-15031-000 0926215031000

$27,97

Unit Price

BEARING (20X47X14)

09262-20069-000 0926220069000

$27,97

Unit Price

BALL BEARING
BEARING (12X28X8)

09262-12001-000 0926212001000

$23,97

Unit Price

DISCONTINUE

08113-62017-000

Not available

SHAFT, RR AXLE
SHAFT, REAR AXLE

24141-08H00-000 2414108H00000

$103,97

Unit Price

SEAL, DRIVE SHAFT OIL NO.2
SEAL, DRIVE SHAFT OIL NO.2 BEARING

24142-40B00-000 2414240B00000

$7,97

Unit Price

WASHER, AXLE SHAFT BEARING
WASHER, AXLE SHAFT

24143-08H00-000 2414308H00000

$5,97

Unit Price

GEAR, FINAL DRIVEN (NT:47)

24371-33G00-000 2437133G00000

$99,97

Unit Price

BEARING
BEARING (20X47X14)

09262-20121-000 0926220121000

$40,97

Unit Price

SEAL.OIL(20X47X12)
SEA OIL (20X47X12)

09283-20047-000 0928320047000

$17,97

Unit Price

BALL BEARING
BEARING, AXLE SHAFT, L

08110-62030-000 0811062030000

$19,97

Unit Price

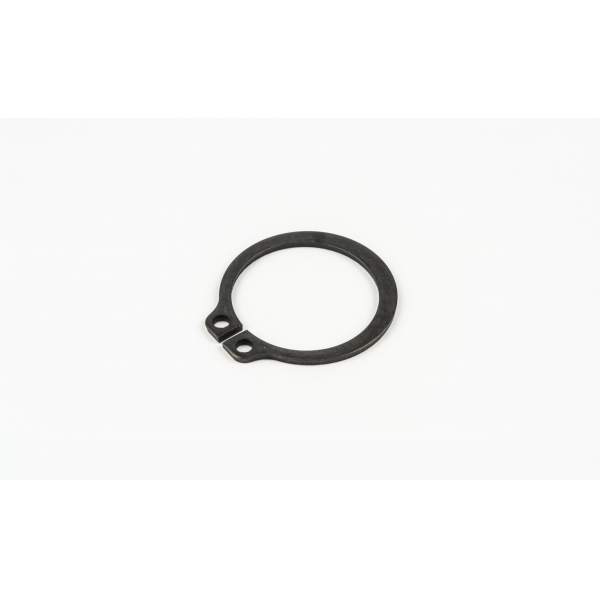

CIRCLIP

08331-31229-000 0833131229000

$3,97

Unit Price

CIRCLIP

08331-4147A-000 083314147A000

$4,97

Unit Price

RETAINER, AXLE SHAFT

24751-08H00-000 2475108H00000

$5,97

Unit Price

SCREW

02122-0630A-000 021220630A000

$2,97

Unit Price

HOUSING, RR AXLE SHAFT

24145-08H00-000 2414508H00000

$130,97

Unit Price

BOLT (10X44)

09103-10086-000 0910310086000

$6,97

Unit Price

BOLT(L:45)
BOLT (10X45)

09103-10218-000 0910310218000

$7,97

Unit Price

NUT
NUT (M10X1.25)

09159-10115-000 0915910115000

$5,97

Unit Price

NUT
NUT (M10X1.25)

09159-10115-000 0915910115000

$5,97

Unit Price

BUSH (10.2X22.3X20)

09319-10032-000 0931910032000

$11,97

Unit Price

PIN
PIN, RR AXLE SHAFT BEARING

04211-13149-000 0421113149000

$3,97

Unit Price

BOLT (10X30)

09103-10395-000 0910310395000

$5,97

Unit Price

SPROCKET, ENGINE (NT:11)

27511-08H00-000 2751108H00000

$32,97

Unit Price

CHAIN, DRIVE(RK50GSVZ3M)
CHAIN ASSY, DRIVE (60L, RK50GSVZ3M)

27600-24F20-060 2760024F20060

$202,97

Unit Price

JOINT SET
JOINT SET, CHAIN

27620-24F20-000 2762024F20000

$14,97

Unit Price

PLATE, FR CHAIN
PLATE, FRONT CHAIN GUIDE

27640-08H00-000 2764008H00000

$20,97

Unit Price

BOLT

01550-0840B-000 015500840B000

$5,97

Unit Price

CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000 0938020009000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
