Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI QUADSPORT 90 2017

CRANKSHAFT

Item numbers

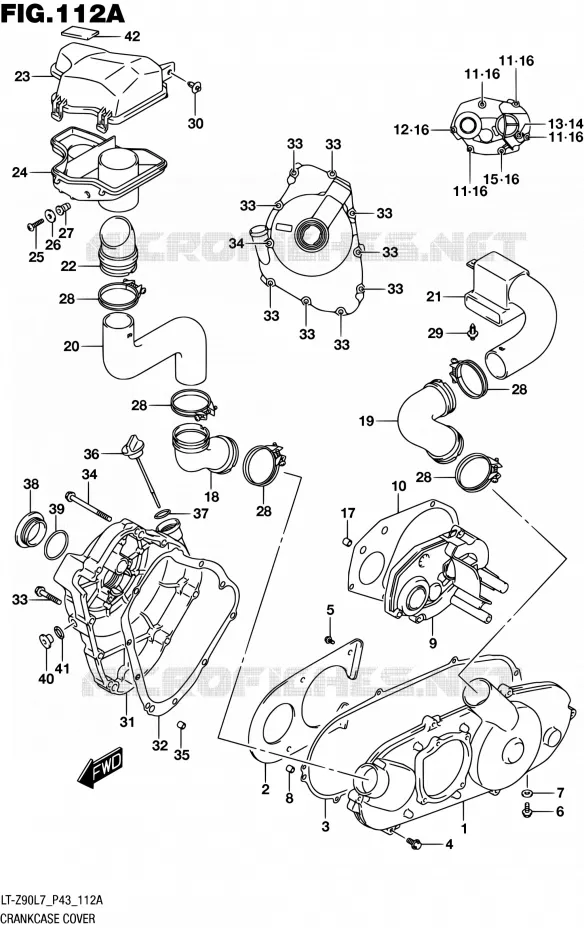

CASING Suzuki QUAD 90 QUADSPORT 2017 LT-Z90 L7 (P43)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
16
16
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
28
28
28
28
29
30
31
32
33
33
33
33
33
33
33
33
33
33
34
34
35
36
37
38
39
40
41
42
1
COVER, CLUTCH

11341-08H00-000   1134108H00000

1134108H00000

Unit Price

2
PLATE, CLUTCH COVER AIR INTAKE
PLATE, AIR INTAKE

11346-08H00-000   1134608H00000

1134608H00000

Unit Price

3
GASKET, CLUTCH COVER
GASKET

11482-08H00-000   1148208H00000

1148208H00000

Unit Price

4
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

5
SCREW<br />BOLT
SCREW
BOLT

02112-0510B-000   021120510B000

021120510B000

Unit Price

6
BOLT<br />PLUG, WATER DRAIN
BOLT
PLUG, WATER DRAIN

01550-0612B-000   015500612B000

015500612B000

Unit Price

7
GASKET,OIL GALLERY<br />GASKET
GASKET, OIL GALLERY
GASKET

09168-06018-000   0916806018000

0916806018000

Unit Price

8
PIN(8X11)<br />PIN (6.2X8X11)
PIN(8X11)
PIN (6.2X8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

9
COVER, GEAR BOX

11431-33G41-000   1143133G41000

1143133G41000

Unit Price

10
GASKET, GEAR BOX COVER

11484-33G40-000   1148433G40000

1148433G40000

Unit Price

11
BOLT

11432-08H00-000   1143208H00000

1143208H00000

Unit Price

12
BOLT

11433-08H00-000   1143308H00000

1143308H00000

Unit Price

13
BOLT<br />BOLT, LEVEL
BOLT
BOLT, LEVEL

01550-0812B-000   015500812B000

015500812B000

Unit Price

14
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

15
BOLT
BOLT, DRAIN

01547-0695B-000   015470695B000

015470695B000

Unit Price

16
GASKET,OIL GALLERY<br />GASKET (6.2X13X1.2)
GASKET, OIL GALLERY
GASKET (6.2X13X1.2)

09168-06018-000   0916806018000

0916806018000

Unit Price

17
PIN(8X11)<br />PIN (6.2X8X11)
PIN(8X11)
PIN (6.2X8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

18
CONNECTOR, CLG DUCT FR NO.1
CONNECTOR, COOLING DUCT FR

11385-08H00-000   1138508H00000

1138508H00000

Unit Price

19
CONNECTOR, CLG DUCT RR
CONNECTOR, COOLING DUCT RR

11386-08H00-000   1138608H00000

1138608H00000

Unit Price

20
DUCT, BELT COOLING FR

11387-08H00-000   1138708H00000

1138708H00000

Unit Price

21
DUCT, BELT COOLING RR

11398-08H00-000   1139808H00000

1139808H00000

Unit Price

22
CONNECTOR, CLG DUCT FR NO.2
CONNECTOR, COOLING DUCT FR

11388-08H00-000   1138808H00000

1138808H00000

Unit Price

23
BOX, INDUCTION UPR
BOX, INDUCTION UPPER

11393-08H00-000   1139308H00000

1139308H00000

Unit Price

24
BOX, INDUCTION LWR
BOX, INDUCTION LOWER

11394-08H00-000   1139408H00000

1139408H00000

Unit Price

25
SCREW
SCREW

02142-0520B-000   021420520B000

021420520B000

Unit Price

26
WASHER, 5.5X20X1.4
WASHER

09160-05046-000   0916005046000

0916005046000

Unit Price

27
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

28
CLAMP

09402-50203-000  

09402-50208-000
 0940250203000

Unit Price

29
CLIP<br />CLIP (BLACK)
CLIP
CLIP (BLACK)

09409-06322-5PK   09409063225PK

09409063225PK

Unit Price

30
CLIP

09409-07333-000   0940907333000

0940907333000

Unit Price

31
COVER, MAGNETO

11351-08H00-000   1135108H00000

1135108H00000

Unit Price

32
GASKET, CRANKSHAFT COVER, R
GASKET

11483-33G40-000   1148333G40000

1148333G40000

Unit Price

33
BOLT
BOLT

01547-0630B-000   015470630B000

015470630B000

Unit Price

34
BOLT
BOLT

01547-0665B-000   015470665B000

015470665B000

Unit Price

35
PIN(8X11)<br />PIN (6.2X8X11)
PIN(8X11)
PIN (6.2X8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

36
GAUGE, OIL LEVEL

11971-08H00-000   1197108H00000

1197108H00000

Unit Price

37
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

38
PLUG,SHAFT HOLE<br />PLUG, CRANKSHAFT HOLE
PLUG, SHAFT HOLE
PLUG, CRANKSHAFT HOLE

09259-36016-20H   092593601620H

092593601620H

Unit Price

39
O-RING,CRANK SHAFT<br />O RING
O-RING, CRANK SHAFT
O RING

09280-33004-000   0928033004000

0928033004000

Unit Price

40
PLUG
PLUG, TDC

09248-12007-000   0924812007000

0924812007000

Unit Price

41
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
42
PROTECTOR,BATTERY(70X100X6)<br />PROTECTOR (70X100X6)
PROTECTOR, BATTERY(70X100X6)
PROTECTOR (70X100X6)

33652-08420-000   3365208420000

3365208420000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 90 QUADSPORT 2017

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 90 QUADSPORT 2017

Choose your Suzuki 90 2017 QUADSPORT model

90 QUADSPORT 2017 LT-Z90 L7 (P43)

QUADSPORT Z90

Suzuki QUADSPORT

Displacement: 90 cc
Year: 2017
Model code LT-Z90 L7 (P43)
