OIL PUMP FOR SUZUKI QUADSPORT 90 2023

TRANSMISSION (1)

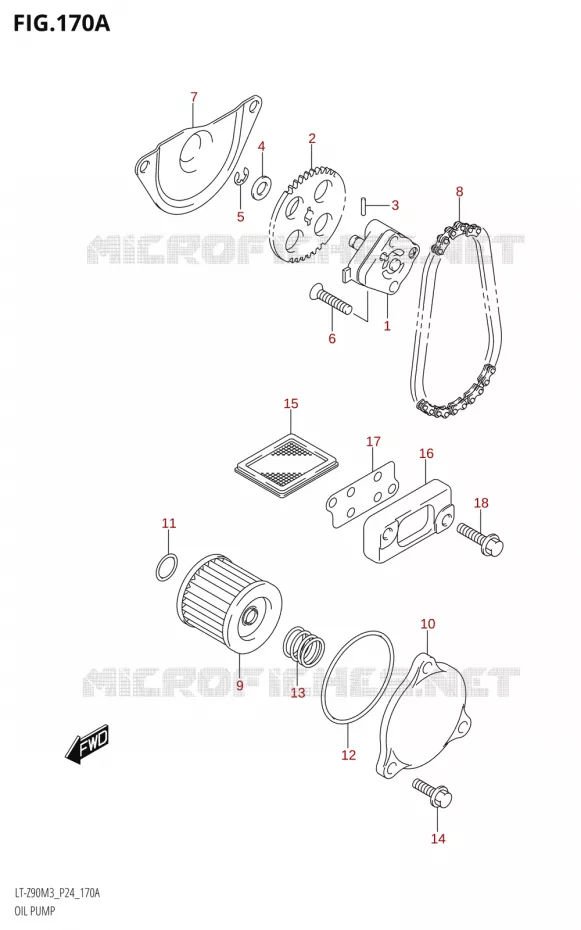

OIL PUMP Suzuki QUAD 90 QUADSPORT 2023 LT-Z90 M3 (P03,P28)
1
PUMP ASSY, ENGINE OIL
PUMP ASSY, ENG OIL

16400-33G40-000   1640033G40000

1640033G40000

Unit Price

2
SPROCKET, OIL PUMP DRIVEN
SPROCKET, OIL PUMP DRIVEN(NT:31)

16331-33G40-000   1633133G40000

1633133G40000

Unit Price

3
PIN

16421-20E00-000   1642120E00000

1642120E00000

Unit Price

4
WASHER

16422-20E00-000   1642220E00000

1642220E00000

Unit Price

5
CIRCLIP

16423-20E00-000   1642320E00000

1642320E00000

Unit Price

6
SCREW
SCREW

02122-0625B-000   021220625B000

021220625B000

Unit Price

7
COVER, OIL PUMP

16422-33G00-000   1642233G00000

1642233G00000

Unit Price

8
CHAIN, OIL PUMP DRIVE
CHAIN ASSY, OIL PUMP DRIVE

16310-33G40-000   1631033G40000

1631033G40000

Unit Price

9
FILTER ASSY, ENGINE OIL
FILTER ASSY, ENG OIL

16510-05240-000   1651005240000

1651005240000

Unit Price

10
CAP, OIL FILTER

16512-09G00-000   1651209G00000

1651209G00000
Not available
11
ENG OIL PUMP O RING<br />O-RING(D:1.9,ID:13)
ENG OIL PUMP O RING
O-RING(D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

12
O-RING, OIL FLT CAP
O-RING(D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

13
SPRING<br />SPRING(L:14.5)
SPRING
SPRING(L:14.5)

09440-18002-000   0944018002000

0944018002000

Unit Price

14
BOLT
BOLT

01547-0616B-000   015470616B000

015470616B000

Unit Price

15
STRAINER, ENGINE OIL

16520-09410-000   1652009410000

1652009410000

Unit Price

16
CAP, OIL STRAINER

16523-20E00-000   1652320E00000

1652320E00000

Unit Price

17
GASKET, OIL STRAINER CAP

16524-20E00-000   1652420E00000

1652420E00000

Unit Price

18
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
