CRANKCASE COVER

OIL PAN - OIL PUMP FOR SUZUKI RF 900 1995

CRANKSHAFT

Item numbers

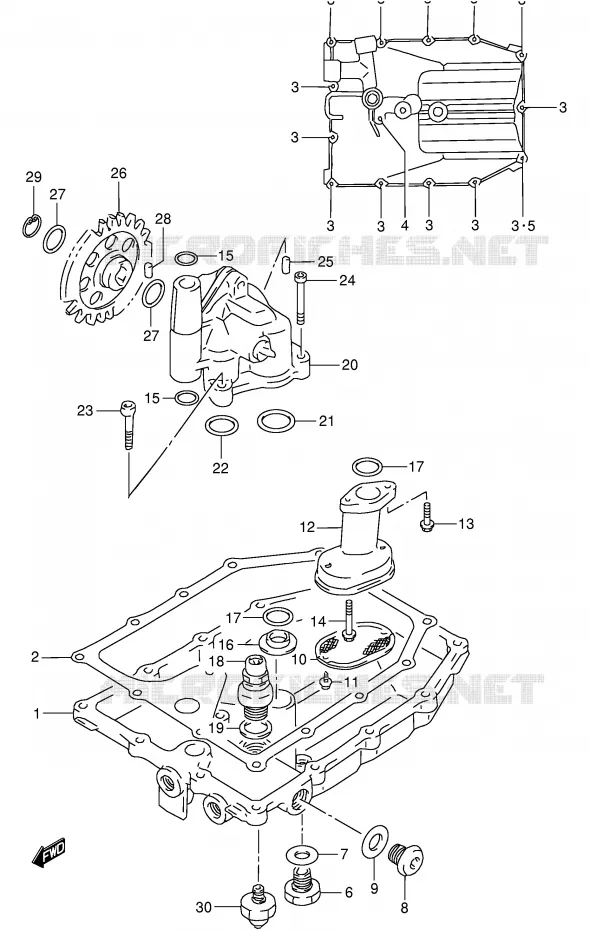

OIL PAN - OIL PUMP Suzuki MOTO 900 RF 1995 RF900RS2(E2)
1
2
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
27
28
29
30
1
DISCONTINUE
PAN, OIL

11511-46E02-000   1151146E02000

1151146E02000
Not available
2
DISCONTINUE
GASKET, OIL PAN

11489-17E01-000   1148917E01000

1148917E01000
Not available
3
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

4
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

5
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price

6
PLUG

09247-14001-000  

09247-14002-000
 0924714001000

Unit Price

7
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

8
PLUG, OIL

09248-16010-000  

09248-16012-000
 0924816010000

Unit Price

9
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

10
STRAINER, ENGINE OIL

16520-38A00-000   1652038A00000

1652038A00000

Unit Price

11
SCREW

02112-75123-000  

02112-7512A-000
 0211275123000

Unit Price

11
DISCONTINUE
BOLT

01580-05123-000   0158005123000

0158005123000
Not available
12
DISCONTINUE
PROTECTOR, OIL STRAINER

16525-46E01-000   1652546E01000

1652546E01000
Not available
13
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

14
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

15
O-RING<br />O RING, OIL GALLERY (D:2.4,ID:11.8)
O-RING
O RING, OIL GALLERY (D:2.4, ID:11.8)

09280-12012-000   0928012012000

0928012012000

Unit Price

16
GASKET,OIL OUTLET<br />GASKET, OUTLET
GASKET, OIL OUTLET
GASKET, OUTLET

16529-27A01-000   1652927A01000

1652927A01000

Unit Price

17
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

18
VALVE ASSY, OIL RELIEF

16440-17C00-000  

16440-17C10-000
 1644017C00000

Unit Price

19
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

20
DISCONTINUE
PUMP ASSY, ENGINE OIL

16400-46E00-000   1640046E00000

1640046E00000
Not available
21
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
22
O RING<br />O RING (D:3.2,ID:17.8)
O RING
O RING (D:3.2, ID:17.8)

09280-18009-000   0928018009000

0928018009000

Unit Price

23
BOLT

07130-06303-000  

07130-0630B-000
 0713006303000

Unit Price

24
BOLT

07130-06353-000  

07130-0635B-000
 0713006353000

Unit Price

25
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

26
GEAR,OIL PUMP DRIVEN(NT:37)<br />GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN(NT:37)
GEAR, OIL PUMP DRIVEN

16332-19C00-000   1633219C00000

1633219C00000

Unit Price

27
WASHER
WASHER

08221-12205-000   0822112205000

0822112205000
Not available
28
PIN
PIN

09261-05006-000   0926105006000

0926105006000

Unit Price

29
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

30
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PAN - OIL PUMP of your Suzuki RF 900 of RF. Let us know if you have any questions.

Genuine parts for Suzuki 900 RF 1995
