LEVERS - HANDGRIPS

FRONT FORK (RF900RR / RS) FOR SUZUKI RF 900 1997

FRONT FORK (RF900RS2 / RT / RV / RW)

Item numbers

DISCONTINUE
TUBE, OUTER RH

51130-31E00-000 5113031E00000

Not available

DISCONTINUE
TUBE, OUTER LH

51140-31E00-000 5114031E00000

Not available

DISCONTINUE

51110-31E00-000

Not available

51121-07J00
BUSH, SLIDE

51121-17C00-000 5112117C00000

Not available

BUSH, GUIDE

51152-31E00-000 5115231E00000

$34,97

Unit Price

SPACER, SEAL

51168-17C00-000 5116817C00000

$9,97

Unit Price

SEAL, OIL
OIL SEAL

51153-14D00-000 5115314D00000

$30,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST
DUST SEAL

51173-29E00-000 5117329E00000

$39,97

Unit Price

PIECE, OIL LOCK

51195-31E00-000 5119531E00000

$43,97

Unit Price

BOLT(8X27)
BOLT, CYLINDER

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

BOLT
BOLT, RH

01550-08457-000 0155008457000

$5,97

Unit Price

DISCONTINUE
REORDER ROBINSONS

52110-31E00-000 5211031E00000

Not available

SPRING

51171-31E00-000 5117131E00000

Not available

SEAT, SPRING LWR
SEAT, SPRING LOWER

51186-17C00-000 5118617C00000

$9,97

Unit Price

DISCONTINUE
SPACER, SPRING

51176-17C00-000 5117617C00000

Not available

SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000 5117217C00000

$19,97

Unit Price

DISCONTINUE
NUT

51827-17C00-000 5182717C00000

Not available

ADJUSTER, SPRING

51185-31E00-000 5118531E00000

$82,97

Unit Price

O RING, 02.5, ID:13.8

09280-14003-000

09280-14011-000

$7,97

Unit Price

BOLT, FORK

51189-14D00-000 5118914D00000

$105,97

Unit Price

O RING

51117-17C00-000 5111717C00000

$9,97

Unit Price

99x

DAMPER ASSY, FRONT FORK RH

51103-31E00-000 5110331E00000

Not available

99x

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-31E00-000 5110431E00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

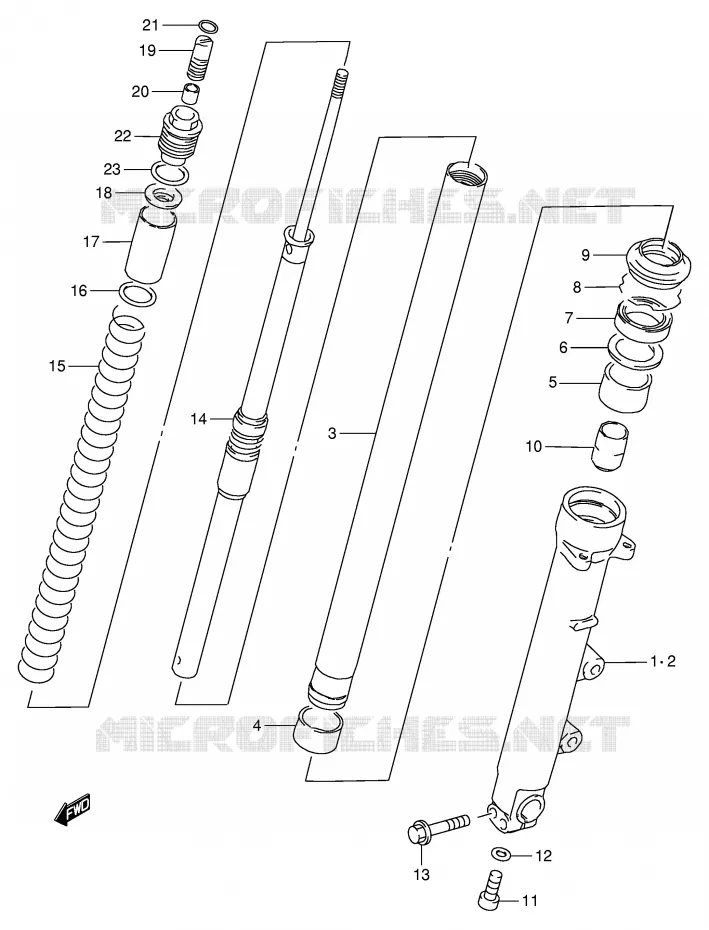

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (RF900RR/RS) of your Suzuki RF 900 of RF. Let us know if you have any questions.
