CLUTCH

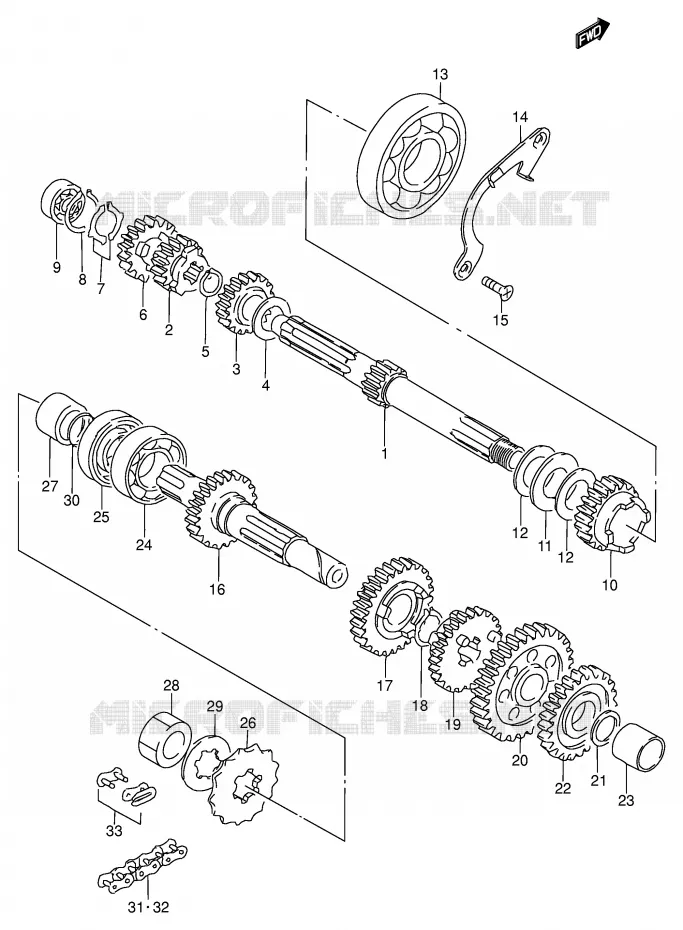

TRANSMISSION FOR SUZUKI AP 100 1996

GEAR SHIFTING ASSY

Item numbers

COUNTERSHAFT (NT:11)

24121-12002-000 2412112002000

Not available

GEAR, 2ND DRIVE

24221-23000-000

24221-23001-000

$135,97

Unit Price

GEAR, 3RD DRIVE (NT:18)

24231-12020-000 2423112020000

Not available

WASHER

08211-17241-000 0821117241000

$3,97

Unit Price

THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000 0938017001000

$2,97

Unit Price

GEAR, 4TH DRIVE (NT:22)

24241-12020-000 2424112020000

Not available

RING
RING, 4TH DRIVE GEAR

09399-14001-000 0939914001000

$5,97

Unit Price

RING, SNAP
CIRCLIP

09380-26001-000 0938026001000

$4,97

Unit Price

BALL BEARING
BEARING, COUNTERSHAFT LH

09262-12001-000 0926212001000

$26,97

Unit Price

DISCONTINUE
GEAR, KICK STARTER DRIVEN

26280-23010-000 2628023010000

Not available

BEARING(21X32X2.85)
BEARING

09263-21006-000 0926321006000

$24,97

Unit Price

KK DRN GR BRG WASHER
WASHER (21X30X0.8)

09160-21007-000 0916021007000

$5,97

Unit Price

BEARING 30X62X10

09262-30003-000 0926230003000

$66,97

Unit Price

PLATE, COUNTERSHAFT BEARING

24741-12010-000 2474112010000

Not available

SCREW

02122-06123-000

02122-0612B-000

$2,97

Unit Price

DRIVESHAFT (NT:21)

24131-12021-000 2413112021000

Not available

GEAR, 2ND DRIVEN (NT:27)

24321-12020-000 2432112020000

Not available

CIRCLIP

08331-31206-000

08331-3120A-000

$3,97

Unit Price

CIRCLIP

09380-20007-000 0938020007000

$4,97

Unit Price

GEAR, 3RD DRIVEN (NT:23)

24331-12020-000 2433112020000

Not available

24310-12021
DISCONTINUED

24310-12020-000 2431012020000

Not available

WASHER

08211-15301-000 0821115301000

Not available

DISCONTINUE
GEAR, KICK STARTER IDLE

26260-23010-000 2626023010000

Not available

BUSH
BUSHING, DRIVESHAFT

09303-15004-000 0930315004000

$8,97

Unit Price

BEARING

09262-20069-000

09262-20121-000

$43,97

Unit Price

OIL SEAL

09283-25003-000 0928325003000

Not available

DISCONTINUE
SPROCKET, ENGINE (NT:14)

27511-13700-000 2751113700000

SPACER (20X25X15.5)

09180-20016-000 0918020016000

Not available

NUT 20MM
NUT

09140-20012-000 0914020012000

$5,97

Unit Price

WASHER, LOCK
LOCK WASHER

09167-20009-000 0916720009000

$3,97

Unit Price

DR SHAFT BRG O RING
O RING (D:1 , ID:19.5)

09280-20001-000 0928020001000

$2,97

Unit Price

DISCONTINUE
CHAIN, DRIVE (DID 428)

27600-20910-126 2760020910126

Not available

CHAIN, DRIVE

27600-20910-112

27600-20911-112

$52,97

Unit Price

JOINT SET(DID428)

27620-20910-000

27620-20911-000

$8,97

Unit Price

JOINT (RK)

27620-40220-000 2762040220000

$19,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
