CAM SHAFT / VALVE (~F.NO.100364) REFER TO FIG.8(B-10) FOR F.NO.100365%

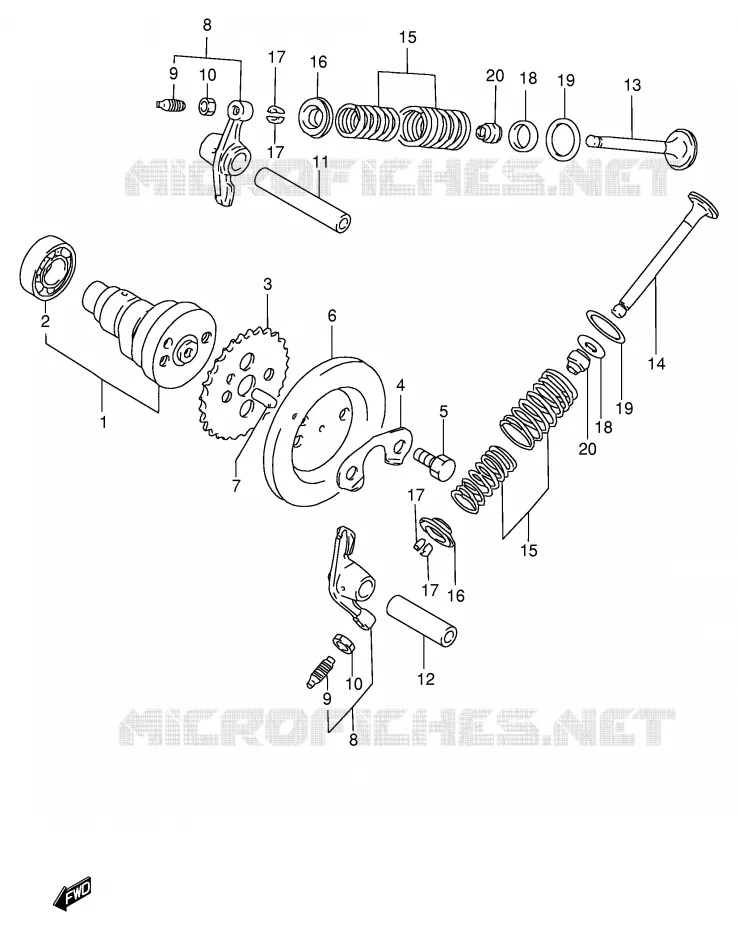

CAM SHAFT / VALVE (F.NO.100365~) FOR SUZUKI FB 100 1994

TIMING

Item numbers

CAM SHAFT

12710-30A01-000 1271030A01000

Not available

BEARING

08143-60027-000 0814360027000

Not available

SPROCKET, CAM SHAFT

12741-30A03-000 1274130A03000

Not available

WASHER, SPROCKET

12747-30A01-000 1274730A01000

Not available

WASHER, SPROCKET

12747-30D00-000 1274730D00000

Not available

BOLT(6X16)
BOLT

09111-06053-000 0911106053000

$6,97

Unit Price

FLYWHEEL, CAM SHAFT

12755-09D00-000 1275509D00000

Not available

PIN(5X12.9)
PIN, SPROCKET

09261-05009-000 0926105009000

$2,97

Unit Price

ARM, VALVE ROCKER
ARM, VALVE LOCKER

12840-30A11-000 1284030A11000

$45,97

Unit Price

SCREW, TAPPET ADJUSTING
SCREW, ADJUSTING

12842-49201-000 1284249201000

$8,97

Unit Price

NUT, TAPPET ADJUSTING
NUT, ADJUSTING

12843-27A00-000 1284327A00000

$4,97

Unit Price

SHAFT, LOCKER ARM IN

12861-09D00-000 1286109D00000

Not available

SHAFT, LOCKER ARM EX

12871-30A00-000 1287130A00000

Not available

VALVE, INTAKE

12911-30A02-000 1291130A02000

Not available

VALVE, EXHAUST

12912-30A01-000 1291230A01000

Not available

SPRING SET, VALVE

12920-30A01-000 1292030A01000

Not available

RETAINER, VALVE SPRING

12931-09400-000 1293109400000

Not available

COTTER, VALVE

12932-27A00-000 1293227A00000

$2,97

Unit Price

SEAT, SPRING INNER

12933-09400-000 1293309400000

Not available

SEAT, VALVE SPRING OUTER
SEAT, SPRING OUTER

12934-09400-000 1293409400000

$4,97

Unit Price

OIL SEAL, VALVE STEM
OIL SEAL (5X10.5X8.4)

09289-05008-000 0928905008000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT/VALVE (F.NO.100365~) of your Suzuki of FB. Let us know if you have any questions.
