STARTER MOTOR CLUTCH (FB100DG / DR / DS / DV)

CAM SHAFT / VALVE (~F.NO.100364) FOR SUZUKI FB 100 1994

CAM SHAFT / VALVE (F.NO.100365~)

Item numbers

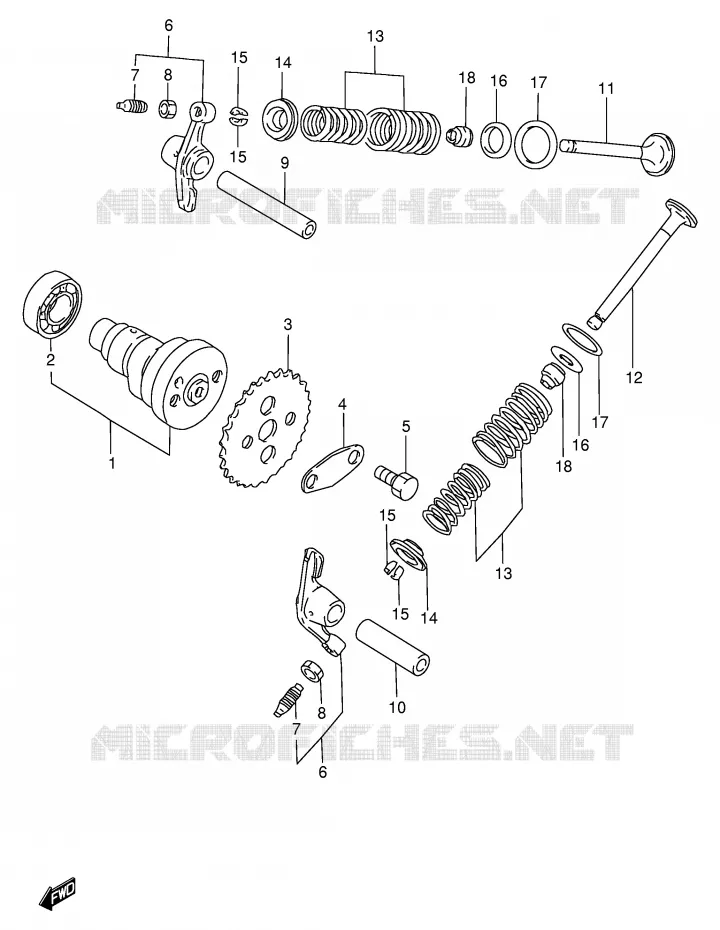

CAM SHAFT/VALVE (~F.NO.100364) Suzuki SCOOTER 100 FB 1994 FB100DR(E71)

1

CAM SHAFT

12710-30A01-000 1271030A01000

Not available

2

BEARING

08143-60027-000 0814360027000

Not available

3

SPROCKET, CAM SHAFT

12741-30A03-000 1274130A03000

Not available

4

WASHER, SPROCKET

12714-09401-000 1271409401000

$7,97

Unit Price

5

BOLT (6X14)

09111-06045-000 0911106045000

Not available

6

ARM, VALVE ROCKER
ARM, VALVE LOCKER

12840-30A11-000 1284030A11000

$45,97

Unit Price

7

SCREW, TAPPET ADJUSTING

12842-49210-000

12842-49201-000

$8,97

Unit Price

8

NUT, TAPPET ADJUSTING

12843-04A00-000

12843-27A00-000

$4,97

Unit Price

9

SHAFT, LOCKER ARM, IN

12861-30A00-000 1286130A00000

Not available

10

SHAFT, LOCKER ARM, EX

12871-30A00-000 1287130A00000

Not available

11

VALVE, INTAKE

12911-30A12-000 1291130A12000

Not available

12

VALVE, EXHAUST

12912-30A01-000 1291230A01000

Not available

13

SPRING SET, VALVE

12920-30A01-000 1292030A01000

Not available

14

RETAINER, VALVE SPRING

12931-09400-000 1293109400000

Not available

15

COTTER, VALVE

12932-27A00-000 1293227A00000

$2,97

Unit Price

16

SEAT, SPRING INNER

12933-09400-000 1293309400000

Not available

17

SEAT, VALVE SPRING OUTER
SEAT, SPRING OUTER

12934-09400-000 1293409400000

$4,97

Unit Price

18

OIL SEAL, VALVE STEM
OIL SEAL (5X10.5X8.4)

09289-05008-000 0928905008000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT/VALVE (~F.NO.100364) of your Suzuki of FB. Let us know if you have any questions.
