TIMING

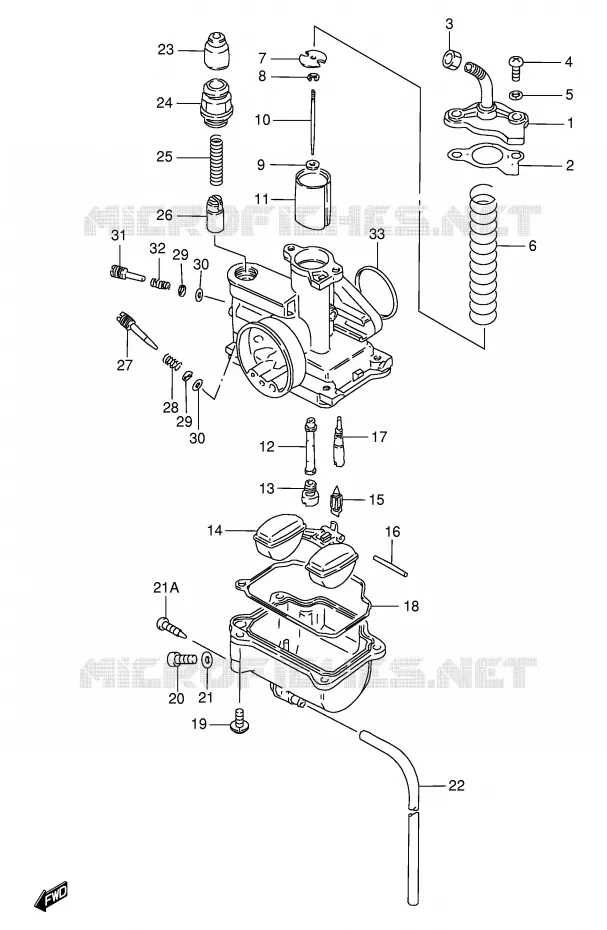

CARBURETOR FOR SUZUKI FB 100 1994

AIR FILTER

Item numbers

CAP, TOP

13261-30A00-000 1326130A00000

Not available

GASKET

13249-30A10-000 1324930A10000

$5,97

Unit Price

NUT

13661-03010-000 1366103010000

$5,97

Unit Price

SCREW

02112-04123-000

02112-0412A-000

$2,97

Unit Price

WASHER, LOCK

08321-01043-000

08321-0104A-000

$2,97

Unit Price

SPRING

13573-02101-000 1357302101000

Not available

PLATE

13447-30A00-000 1344730A00000

$4,97

Unit Price

CLIP, NEEDLE
E RING

13394-40D00-000 1339440D00000

$6,97

Unit Price

GASKET

13615-09400-000 1361509400000

Not available

NEEDLE, JET

13383-30A10-000 1338330A10000

Not available

VALVE, PISTON (CA:3.5)

13551-30A10-000 1355130A10000

Not available

JET, NEEDLE (E-1)

09494-00500-000 0949400500000

Not available

JET, MAIN (95)

09491-95004-000 0949195004000

$23,97

Unit Price

FLOAT ASSY

13250-16A00-000

13250-30D50-000

$51,97

Unit Price

VALVE ASSY, NEEDLE
VALVE, NEEDLE

13370-09D00-000 1337009D00000

$31,97

Unit Price

PIN, FLOAT

13254-20010-000 1325420010000

$5,97

Unit Price

JET, PILOT (15)

09492-15011-000 0949215011000

$22,97

Unit Price

O RING, FLOAT CHAMBER

13258-30A00-000 1325830A00000

$12,97

Unit Price

SCREW

13601-04148-000 1360104148000

$4,97

Unit Price

PLUG
SCREW, DRAIN

13247-43200-000 1324743200000

$8,97

Unit Price

WASHER
GASKET

13606-11D00-000 1360611D00000

$4,97

Unit Price

21A

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$8,97

Unit Price

09355-25001-600
HOSE (2.5X5X600)

09355-25705-600

Not available

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

HOLDER, GUIDE
HOLDER

13418-43410-000 1341843410000

$10,97

Unit Price

SPRING

13417-01010-000 1341701010000

$6,97

Unit Price

PLUNGER, STARTER
PLUNGER ASSY

13411-01010-000 1341101010000

$23,97

Unit Price

SCREW, AIR

13267-09400-000 1326709400000

$12,97

Unit Price

SPRING

13268-35010-000 1326835010000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

ADJUSTER
ADJUSTER, THROTTLE STOP

13267-47A00-000 1326747A00000

$8,97

Unit Price

SPRING

13494-09410-000 1349409410000

$5,97

Unit Price

O RING

09280-24006-000 0928024006000

$2,97

Unit Price

99x

CARBURETOR ASSY

13200-30A12-000 1320030A12000

Not available

99x

CARBURETOR ASSY

13200-30A13-000 1320030A13000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of FB. Let us know if you have any questions.
