CLUTCH (MODEL S / V / X / Y)

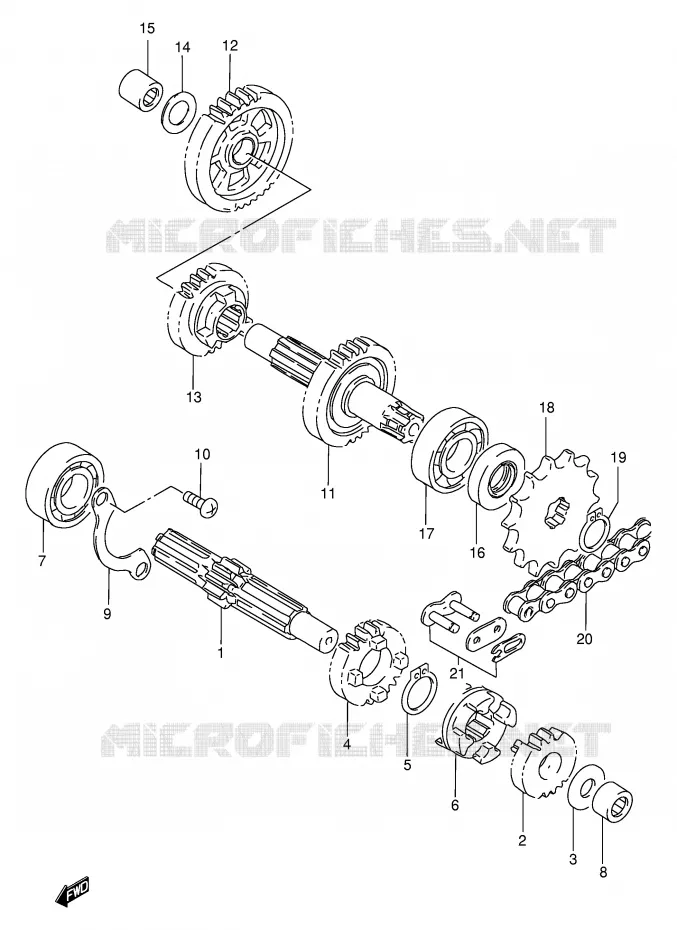

TRANSMISSION FOR SUZUKI FB 100 1994

GEAR SHIFTING ASSY (MODEL G / R) REFER TO FIG.16A(D-9) FOR MODEL S/V/X/Y

Item numbers

SHAFT, COUNTER (NT:10)

24121-35406-000 2412135406000

Not available

GEAR, 2ND DRIVE (NT:16)

24221-35422-000 2422135422000

Not available

WASHER (13X24X1)

09160-13006-000 0916013006000

$3,97

Unit Price

GEAR, 3RD DRIVE (NT:20)

24231-02A03-000 2423102A03000

Not available

CIRCLIP

09380-17007-000 0938017007000

$2,97

Unit Price

WHEEL, SLIDING DOG

24421-35410-000 2442135410000

Not available

WHEEL, SLIDING DOG

24421-35411-000 2442135411000

Not available

BALL BEARING
BEARING

08110-62030-000 0811062030000

$22,97

Unit Price

BEARING(13X19X12)

09263-13001-000

09263-13002-000

$17,97

Unit Price

RETAINER, BEARING

24741-09401-000 2474109401000

$6,97

Unit Price

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

SHAFT, DRIVE (NT:29)

24130-30A00-000 2413030A00000

Not available

SHAFT, DRIVE

24130-30A30-000 2413030A30000

Not available

GEAR, 1ST DRIVEN (NT:34)

24310-30A01-000 2431030A01000

$61,97

Unit Price

GEAR, 3RD DRIVEN (NT:24)

24331-35404-000 2433135404000

Not available

WASHER(13X24X1)
THRUST WASHER (13X24X1)

09160-13006-000 0916013006000

$3,97

Unit Price

BEARING (13X19X12)

09263-13002-000 0926313002000

$17,97

Unit Price

SEAL, OIL(17X30X7)
OIL SEAL (17X30X7)

09283-17025-000 0928317025000

$9,97

Unit Price

OIL SEAL (17X35X6)

09283-17021-000 0928317021000

Not available

BEARING

08113-63030-000 0811363030000

$25,97

Unit Price

BEARING(17X40X12)
BEARING

09262-17023-000 0926217023000

$21,97

Unit Price

SPROCKET, ENGINE
SPROCKET, ENGINE (NT:14)

27511-26400-000 2751126400000

$36,97

Unit Price

SPROCKET, ENGINE (NT:14)

27511-27401-000 2751127401000

Not available

08331-31169
CIRCLIP

08331-31166-000

Not available

CHAIN, DRIVE

27600-20910-112

27600-20911-112

$52,97

Unit Price

CHAIN ASSY, DRIVE (RK428MD)

27600-02A20-000 2760002A20000

Not available

DISCONTINUE

27600-17421-000

Not available

JOINT(RK)

27620-05220-000

27620-40220-000

$19,97

Unit Price

JOINT SET(DID428)

27620-20910-000

27620-20911-000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of FB. Let us know if you have any questions.
