TIMING

THROTTLE BODY FOR SUZUKI GSX-S 1000 2016

THROTTLE BODY

Item numbers

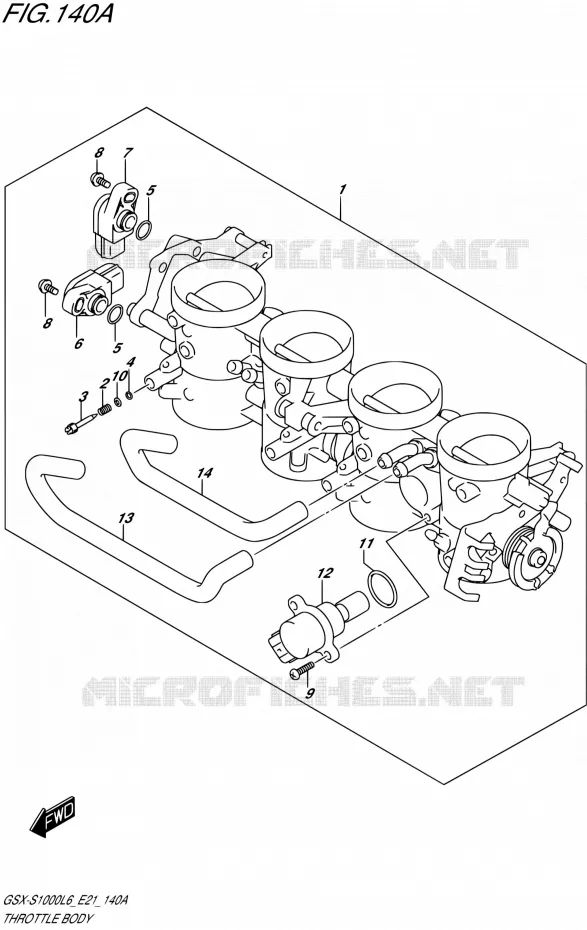

THROTTLE BODY Suzuki MOTO 1000 GSX-S 2016 GSX-S1000UF L6 (E21)
1
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
1
DISCONTINUE
BODY ASSY, THROTTLE

13405-04K00-000  

1340504K00000
Not available
2
SPRING,THROTTLE SCREW<br />.SPRING
SPRING, THROTTLE SCREW
.SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

3
.SCREW
.SCREW

13269-33E00-000   1326933E00000

1326933E00000

Unit Price

4
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

5
O RING

13575-29G00-000  

13575-29G01-000
 1357529G00000

Unit Price

6
.SENSOR

13580-14J00-000   1358014J00000

1358014J00000

Unit Price

7
.SENSOR ASSY

13580-29G00-000   1358029G00000

1358029G00000

Unit Price

8
.SCREW
.SCREW

13605-02F00-000   1360502F00000

1360502F00000

Unit Price

9
SCREW
SCREW

13602-05A40-000  

02112-0412A-000
 1360205A40000

Unit Price

10
.WASHER
.WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

11
.O RING

13679-37H00-000   1367937H00000

1367937H00000

Unit Price

12
.MOTOR ASSY

18117-14J01-000   1811714J01000

1811714J01000

Unit Price

13
HOSE

13698-08J00-000  

13698-08J01-000
 1369808J00000

Unit Price

14
HOSE

13698-08J10-000  

13698-08J11-000
 1369808J10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY of your Suzuki GSX-S 1000 of GSX-S. Let us know if you have any questions.
