Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SWINGARM

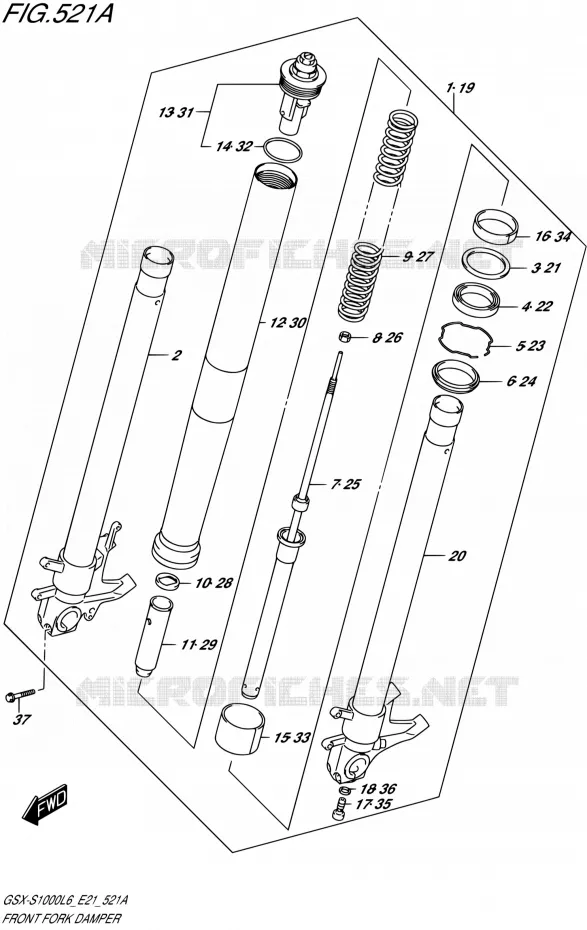

FRONT FORK FOR SUZUKI GSX-S 1000 2016

STEERING COLUMN

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-04K00-000

51103-04K01-000

$1 828,97

Unit Price

TUBE, INNER RH

51110-04K00-000

51110-04K01-000

$914,97

Unit Price

.WASHER

51158-14200-000 5115814200000

$7,97

Unit Price

SEAL, OIL
.OIL SEAL

51153-44G00-000 5115344G00000

$30,97

Unit Price

RING, STOPPER
.RING, OIL SEAL STOPPER

51156-14200-000 5115614200000

$7,97

Unit Price

.SEAL, DUST

51173-02FA0-000 5117302FA0000

$24,97

Unit Price

CYLINDER

51146-04K00-000

51146-04K01-000

$345,97

Unit Price

.NUT, ROD

51352-13A60-000 5135213A60000

$3,97

Unit Price

.SPRING

51171-04K00-000 5117104K00000

$57,97

Unit Price

WASHER
.GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

.SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

.TUBE, OUTER

51131-04K00-000 5113104K00000

$613,97

Unit Price

.CAP

51351-04K00-000 5135104K00000

$252,97

Unit Price

..O RING

62278-14100-000 6227814100000

$6,97

Unit Price

.PISTON

51112-31J00-000 5111231J00000

$17,97

Unit Price

METAL, SLIDE
.SLIDEMETAL

51152-31J00-000 5115231J00000

$23,97

Unit Price

.BOLT

51147-24F50-000 5114724F50000

$15,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

DISCONTINUE
DAMPER ASSY, FRONT FORK LH

51104-04K00-000

Not available

DISCONTINUE
.TUBE, INNER LH

51120-04K00-000

Not available

.WASHER

51158-14200-000 5115814200000

$7,97

Unit Price

SEAL, OIL
.OIL SEAL

51153-44G00-000 5115344G00000

$30,97

Unit Price

RING, STOPPER
.RING, OIL SEAL STOPPER

51156-14200-000 5115614200000

$7,97

Unit Price

.SEAL, DUST

51173-02FA0-000 5117302FA0000

$24,97

Unit Price

CYLINDER

51146-04K00-000

51146-04K01-000

$345,97

Unit Price

.NUT, ROD

51352-13A60-000 5135213A60000

$3,97

Unit Price

.SPRING

51171-04K00-000 5117104K00000

$57,97

Unit Price

WASHER
.GUIDE, SPRING

51158-40F30-000 5115840F30000

$12,97

Unit Price

.SPACER, SPRING

51176-40F30-000 5117640F30000

$18,97

Unit Price

.TUBE, OUTER

51131-04K00-000 5113104K00000

$613,97

Unit Price

.CAP

51351-04K00-000 5135104K00000

$252,97

Unit Price

..O RING

62278-14100-000 6227814100000

$6,97

Unit Price

.PISTON

51112-31J00-000 5111231J00000

$17,97

Unit Price

METAL, SLIDE
.SLIDEMETAL

51152-31J00-000 5115231J00000

$23,97

Unit Price

.BOLT

51147-24F50-000 5114724F50000

$15,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

BOLT

51166-24F60-000 5116624F60000

$7,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki GSX-S 1000 of GSX-S. Let us know if you have any questions.
